• Model NO.：R01
• Transport Package：in Carton Then Into Wooden Case
• Specification：CQC, ISO
• Trademark：JD
• Origin：Hunan, Zhuzhou
• Production Capacity：18 Tons Per Month

Basic Info.

Model NO. R01 Transport Package in Carton Then Into Wooden Case Specification CQC, ISO Trademark JD Origin Hunan, Zhuzhou Production Capacity 18 Tons Per Month

Product Description

[ Product Name ]

Factory Supplys YG6X Tungsten Carbide Rod or carbide pin

[Quick Futures]

1. High wear resistance.
2. 5000 PCS sell a month.
3. Various types available.
4. ISO9001:2008,CQC.
5.Supply  YG6X tungsten carbide rod
6.18 tons output a month



[Product Show]

1.Introduction

With Perfect toughness and suitable abrasion resistance, Mainly used for

wire rod or Bars of processing, Also suitable for turning, milling, cutting,

drilling, peeling, scrapping for cast iron, nonferrous metals, hard alloy

etc. Custom diameters and length are also available in these grades as well

as metric sizes.

Recommended Grade for tungsten carbide rod: YG6, YG8, YG6X,YL10.2 etc.
Also we can supply you the blank and the ground one,even with a 45 degree chamfer.Also the 330MM rod.

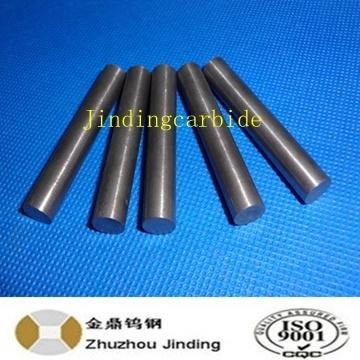

2.More pictures for  YG6X tungsten carbide rod

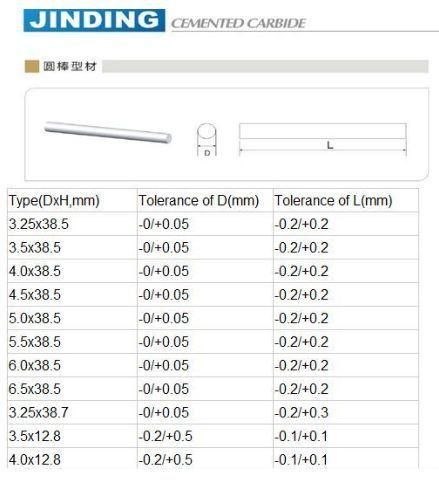

3.Common Size& drawing

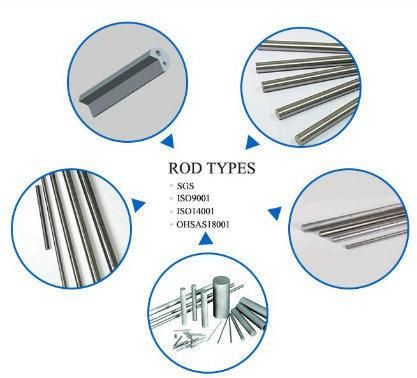

4.More similar carbide rod

[Quality control]

1. All raw materials are tested in terms of density, hardness and T. R. S

before use.

2. Every piece of product goes through in-process and final inspection.

3. Every batch of product can be traced.

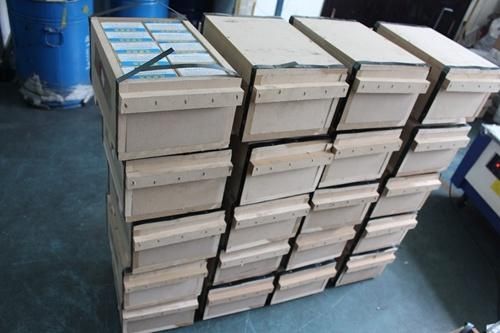

[Packing]



In common:



Firstly use inner boxes,then to outer boxes or do as customer requested.



[Shipping Methods]
Shipment methods:By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.


[How Carbide Powder is Pressed]

1.Tungsten carbide  shapes are made from a powder which is typically tungsten, carbon, cobalt and wax to bind it all together.


2.Carbide shapes are made three ways; pressing in a die, "whittling" a shape from a green piece of carbide or grinding a shape from a finished piece of carbide.

3.This is a carbide press.  At top is a ram.  The powder is poured into the press cavity (the die) then the ram comes down and compresses the powder.  Once the powder is fully pressed the top ram withdraws.  There is a second ram at the bottom of the cavity that comes up and pushes the part out of the cavity.

4.The pressed parts are then presintered.  In this step the wax is melted out.  This leaves a piece of "green carbide" or "green state carbide".  Since the wax has been melted out it is just powder pressed together.  It is actually weaker than side walk chalk.  It can be machined easily in this state although great care is required.

5.It is at this step that carbide parts get chipped edges.   Some parts, such as saw tips, are made in large and very large batches.  They are moved by conveyors and often poured into trays for final sintering.  If this not done carefully one square edge impinging on another can cause chipped edges in the carbide parts.    By contrast you can use a .410 shotgun to fire fully sintered saw tips at a concrete block wall without damaging the saw tips.

6.The final step is sintering in which the carbon is forced into a relaxed tungsten matrix creating tungsten carbide grains and those grains are enveloped in a binder or matrix of cobalt of similar.



7.During the final sintering the parts shrink dramatically.  Exactly how much shrinkage will occur is difficult to predict exactly.  Parts are usually designed to be produced a bit oversize.

[Company Brief Introduction]
We(Zhuzhou Jinding) established in 2004 with a total 3500 square meter factory with a year output 200 Tons.We are the professional manufacturer in high-tech plant of Hunan Province.Also have 10 years OEM experiece in China.High quality is our life to do win-win business.Welcome to your coming!



[Competitive Advantage]



10 years manufacture experience in tungsten carbide



Implement strict quality testing and control procedure to make superior quality. (ISO9001)



Fexible payment terms(L/C, T/T, western union,money gram, etc.)



Reply your inquiry within 10 hours



We are professional factory, so our price is lower than others



Professional sales person





Perfect Oral English communication service


[Any question or requirement , please contact us,we are glad to help you]



Tel: 0086 0731 22660738
 Website: jdcarbide.en.made-in-china.com



Material	Virgin,YG6X
Size	Various size like the above show
Applicaition	Widely used in drills,endmill,etc.
Sells quantity a month	5000PCS
Advantage	Free sample,best price,fast sent
