• Model NO.：VIT
• After-Sales Service Provided：Overseas Third-Party Service Provided
• Quantity Control：According to EU Standard
• Pulling Capacity：800kgs 1600kgs 3200kgs 5400kgs
• Transport Package：Packed by Carton, Woodon Case
• Specification：Net weight 23kgs for capacity 3200kgs
• Trademark：HUGO
• Origin：China-Shanghai
• HS Code：8425190000
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. VIT After-Sales Service Provided Overseas Third-Party Service Provided Quantity Control According to EU Standard Pulling Capacity 800kgs 1600kgs 3200kgs 5400kgs Transport Package Packed by Carton, Woodon Case Specification Net weight 23kgs for capacity 3200kgs Trademark HUGO Origin China-Shanghai HS Code 8425190000 Production Capacity 2000PCS/Month

Product Description

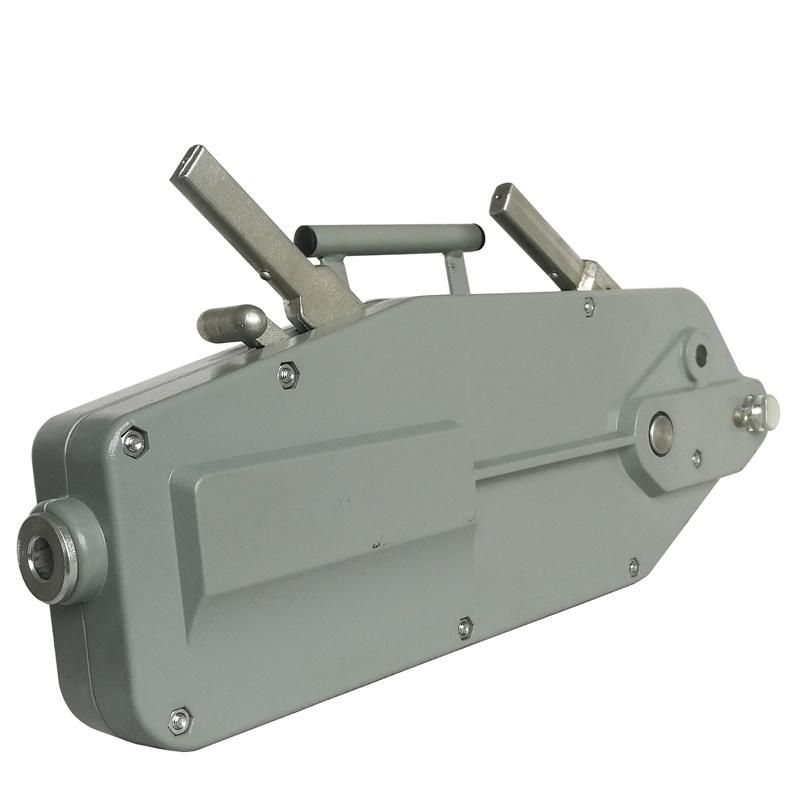

The introduction of Outdoor Used Wire Rope Pulling VIT Winches

Certification: ISO, CE, TUV, SGS

Capacity: 3T lever hoist; 6T lever hoist

Standard lifting height: According the inquiry.

1)Capacity from 0.8T to 3.2T

2)High quality aluminium body

3)Overload protection

4)four times tested before packed, it is safty and using.

The specifications of Compact Wire Rope Pulling Equipment Hand Hosit

It has such distinct merits as small cubage, light weight, beautiful appearance, small manual force, safety and reliability. And long opertional life-span, It is especially used in occasion without power source such as shipbuilding, post office, mines, electric power, and transportation units in heavy goods suspending, equipment fixing, mechanism traction, and aerial exercise, it can rapidly unhitch brake equipment under unloaed condition. So that the flying hook can remove fleetly, we also can choose and add structure without light load limit according to the needs of clients.

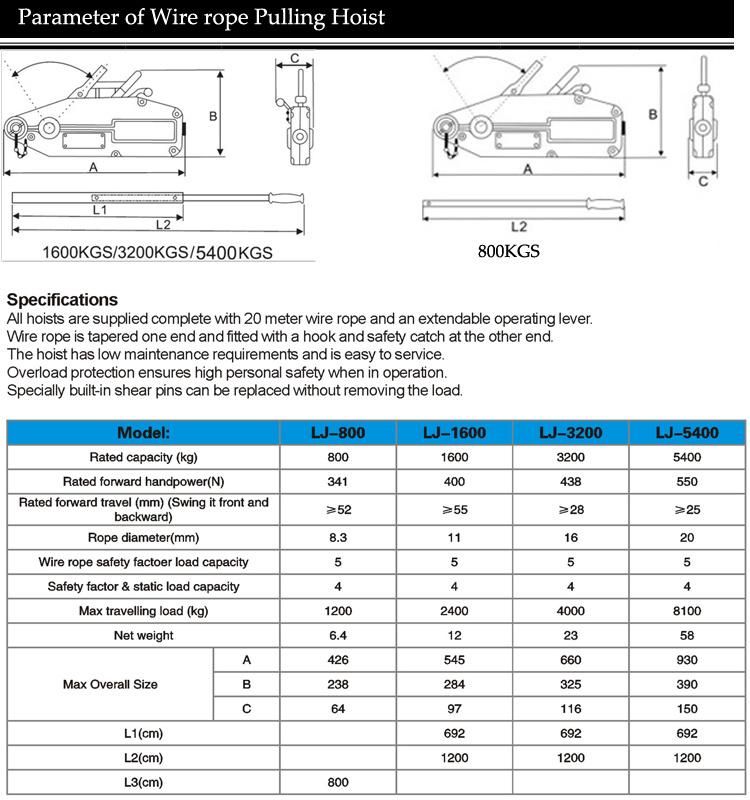

Model	HX-800	HX-1600	HX-3200
Rated  capacity        (kg)	800	1600	3200
Rated  forward  hand  power            N	343	441	441
Rated  forward  travel          mm	>   52	>   55	>   28
Rope  diameter      mm	8.3	11	16
load  capacity	5	5	5
Load  capacity	5	5	5
Max  traveling  load  kg	1200	2400	4000
Net  weight        (kg)	6	11	22

Company Information
Shanghai Yiying Crane Machinery Co., Ltd. Was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist, Electric Hoists, Forklift and other lifting products.
1. Annual production in 5 million units production area 3600 square meters;
2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei.
3. 120 production lines;
4. More than 500 employees;
5. Annual export value over 50 million RMB.

Why choose us
BRAND ADVANTAGE
1. 50 years brand history; (Trademark registration number; 1975110)
2. TOP5 lifting equipment supplier in China;
3. One of the first batch of enterprises certified by Alibaba;
4. Brand customers: CNPC, China Railway Group and so on

TECHNOLOGY ADVANTAGES
1. Focuse on the production and R&D of lifting equipment for about 30 years;
2. Professional independent research and development team, recognized by domestic and foreign customers.
3. Company was honored by the givernment as a High-Tech enterprise in 2010

Service Advantage
1. 7D*24H after-sales service,
2. More than 100 professional service staff.

The products of our company have exported to over 80 countries and regions,including EUROPE,USA,AUSTRALIA and SOUTHEAST ASIA,etc.

Certifications
RIGOROUS QUALITY CONTROL
1. Certificate:CE,SGS,ISO:9001,BV
2. The third-party inspection for quality testing is accepted
3. Product qualification rate more than 98%
4. In accordance with the requirements of Environmental Protection Administration,the quality and delivery can be guaranteed

Our Products
Product Range:Electric Chain Hoist/Wire Rope Hoist/Wire rope winch/Mini Type Hoist/Pallet Truck/Hydraulic jack/Explosion-proof hoist/Stainless steel hoist/Lever Hoist/Chain Hoist
