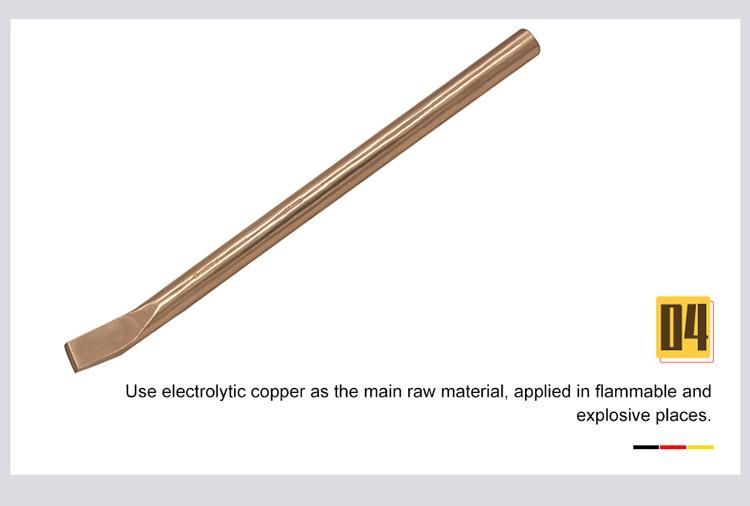

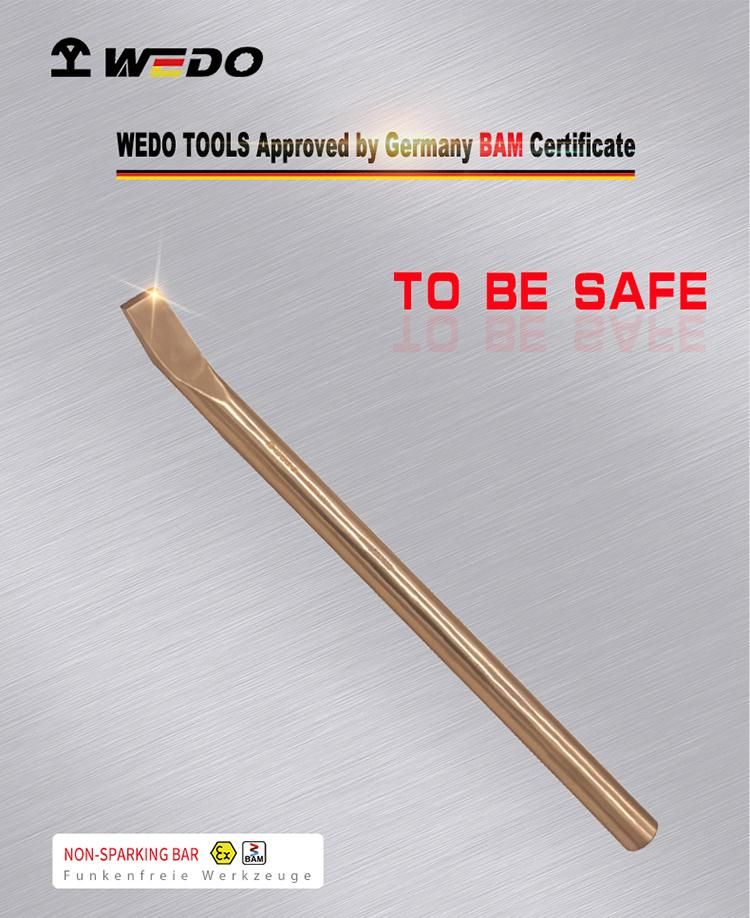

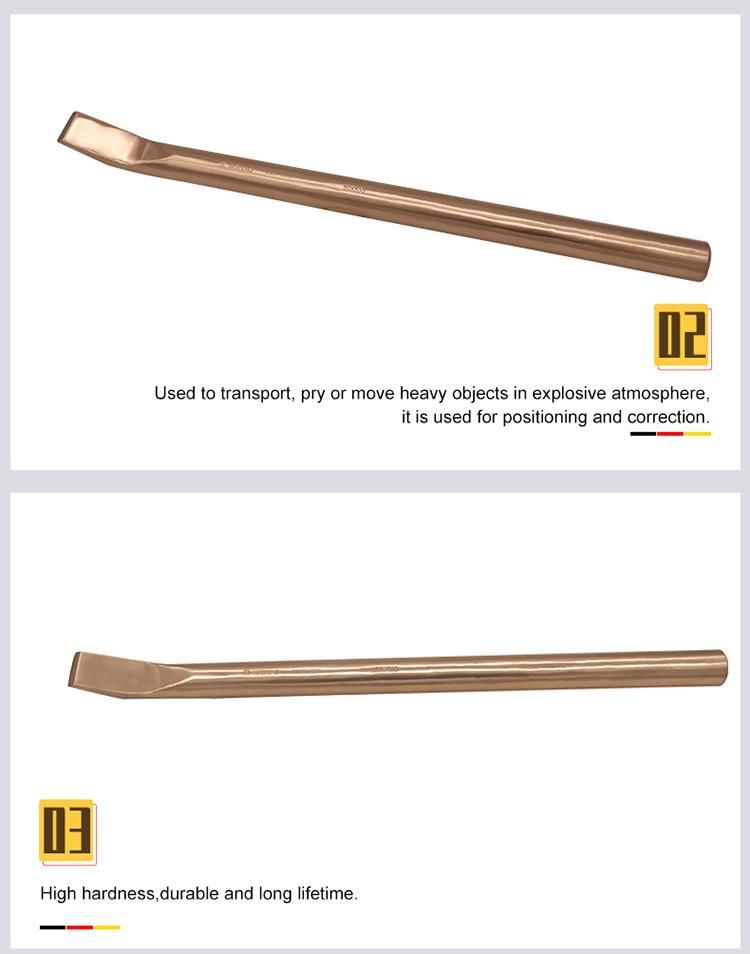

WEDO Beryllium Copper Bar Non-Sparking Round Bar Bam/FM/GS Certified
WEDO TOOLS CO.,LTD- Material：Beryllium Copper
- Certification：ISO9001, FM, GS
- Transport Package：Plastic Bag,Box,Carton,Pallet
- Trademark：WEDO
- Origin：China
Base Info
- Model NO.：BE237
- HS Code：8205590000
- Production Capacity：20000 Piece Per Year
Description
SIZE Beryllium Copper L(mm) B(mm) H(mm) N.W. (g) BE237-1002 500 15 15 738 BE237-1004 500 19 19 1150 BE237-1006 500 20 20 1295 BE237-1008 500 25 25 1975 BE237-1010 500 30 30 2925 BE237-1012 600 25 25 2380 BE237-1014 600 30 30 3450 BE237-1016 800 23 23 2290 BE237-1018 800 25 25 3175 BE237-1020 800 30 30 4490 BE237-1022 850 30 30 4870 BE237-1024 1000 25 25 3985 BE237-1026 1000 28 28 4710 BE237-1028 1000 30 30 5595 BE237-1030 1200 25 25 4795 BE237-1032 1200 30 30 6970 BE237-1034 1500 30 30 8665
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%

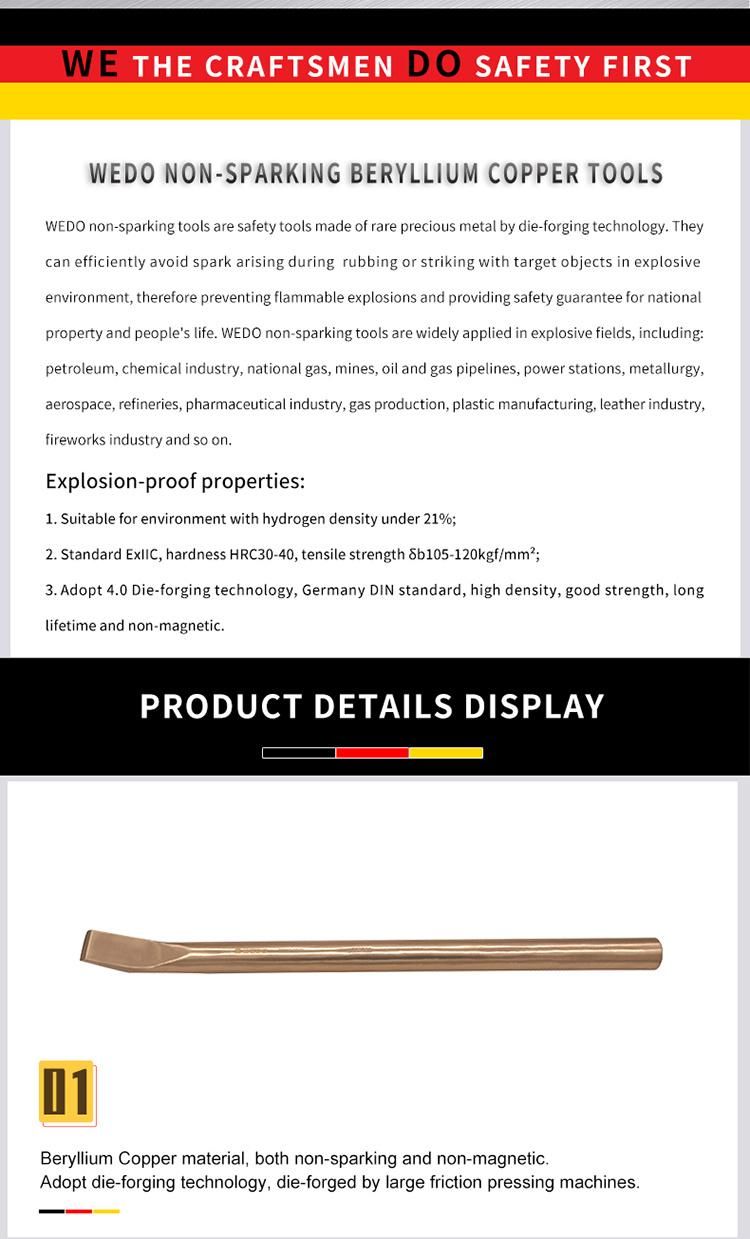

Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
DETAILS AND APPLICATION
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
