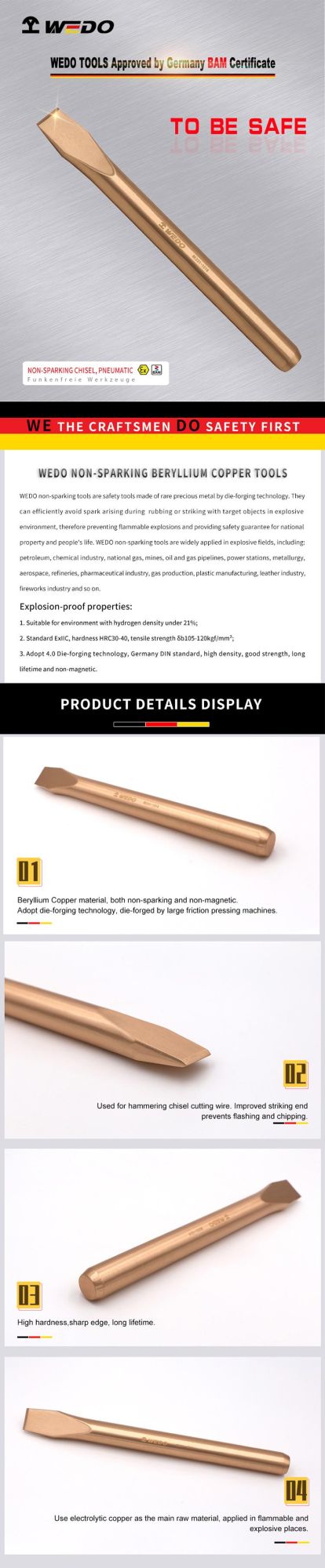

WEDO Beryllium Copper Chisel High Quality Non-Sparking Flat Chisel Bam/FM/GS Certified
WEDO TOOLS CO.,LTD- Chisel Type：Flat Chisel
- Material：Beryllium Copper
- Color：Golden Yellow
- Customized：Customized
- Condition：New
- Transport Package：Plastic Bag,Box,Carton,Pallet
Base Info
- Model NO.：BE231
- Trademark：WEDO
- Origin：China
- HS Code：8205590000
- Production Capacity：30000 Piece Per Year
Description
SIZE Beryllium Copper L(mm) Φ(mm) B(mm) N.W. (g) BE231-1002 160 14 14 175 BE231-1004 160 16 16 231 BE231-1006 160 18 18 295 BE231-1008 200 18 18 382 BE231-1010 200 20 20 473 BE231-1012 250 24 24 822 BE231-1014 300 24 24 1025 BE231-1016 300 25 25 1302 BE231-1018 400 25 25 1502 BE231-1020 500 25 25 1903 BE231-1022 500 30 30 2730
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
DETAILS AND APPLICATION
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
