• Model NO.：AL273A
• Origin：China
• HS Code：8205590000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. AL273A Origin China HS Code 8205590000 Production Capacity 50000PCS/Year

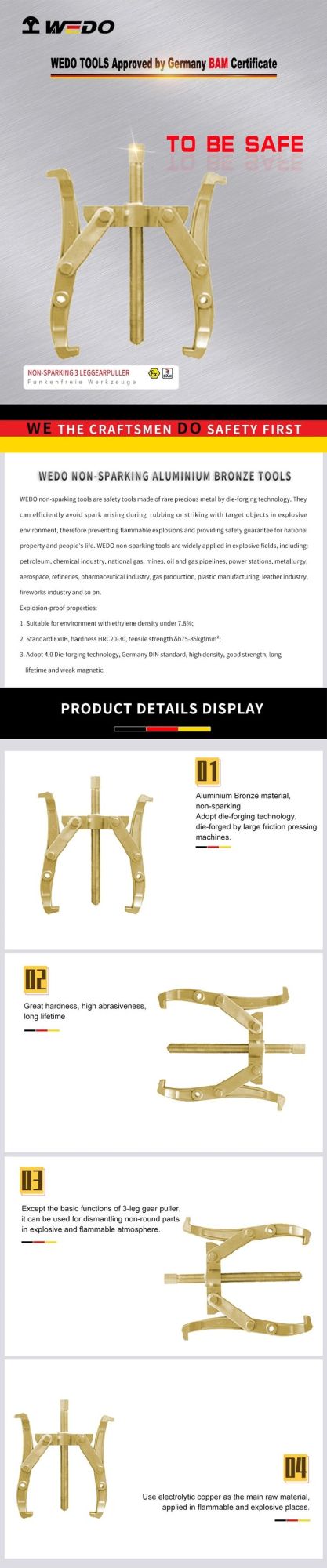

Product Description

ITEM CODE	SIZE
AL273A-1002	100mm
AL273A-1004	150mm
AL273A-1006	200mm
AL273A-1008	350mm

Above item no. is only for Aluminium Bronze material, Besides Aluminium Bronze, WEDO also supply in Beryllium Copper, below are differences of two material.

Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%

Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%

To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC,  hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.

The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
