• Model NO.：SOV-XLCT Series
• Feature：Ordinary
• Working Mode：Hydraulic
• Folded：Unfolded
• Handle Color：Customized
• Application Age：Adult
• Name：Xlct Series Hexagon Cassette Hydraulic Torque Wren
• Max. Pressure：700 Bar
• Max. Torque：232-2328 to 4188-41882 Nm
• Bolt Size：16-36 to 76-115 mm
• Nut Size：24-55 to 110-165 mm
• Weight：1.5-29.5kg
• Market：Global
• Color：Metallic
• Warranty：One Year
• Precision：+-3%
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO9001
• Trademark：SOV
• Origin：China
• HS Code：8467890000
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. SOV-XLCT Series Feature Ordinary Working Mode Hydraulic Folded Unfolded Handle Color Customized Application Age Adult Name Xlct Series Hexagon Cassette Hydraulic Torque Wren Max. Pressure 700 Bar Max. Torque 232-2328 to 4188-41882 Nm Bolt Size 16-36 to 76-115 mm Nut Size 24-55 to 110-165 mm Weight 1.5-29.5kg Market Global Color Metallic Warranty One Year Precision +-3% Transport Package Standard Export Wooden Case Specification CE, ISO9001 Trademark SOV Origin China HS Code 8467890000 Production Capacity 500 Sets Per Month

Product Description

                                     XLCT Series Hexagon Cassette Hydraulic Torque Wrench

Feature:

1. The new type anti-loose quick coupling ensures an unimpeded oil channel.
2. The 360º × 180º Rotating oil connection has no limitation in used space and is convenient to be operated.
3. Al-Ti alloy integrated machine has high strength, high tenacity and light weight.
4. The check pawl can overcome wrench changeover and improve efficiency and torque precision as well as plays a vital role.
5. The integrated lengthening design makes the force arm longer and that the reliability is overall improved
6. The hollow design makes the wrench act on the nut directly and the torque can be more precise and lighter.
7. The taper reduction sleeve can be used to expand the application range of the wrench

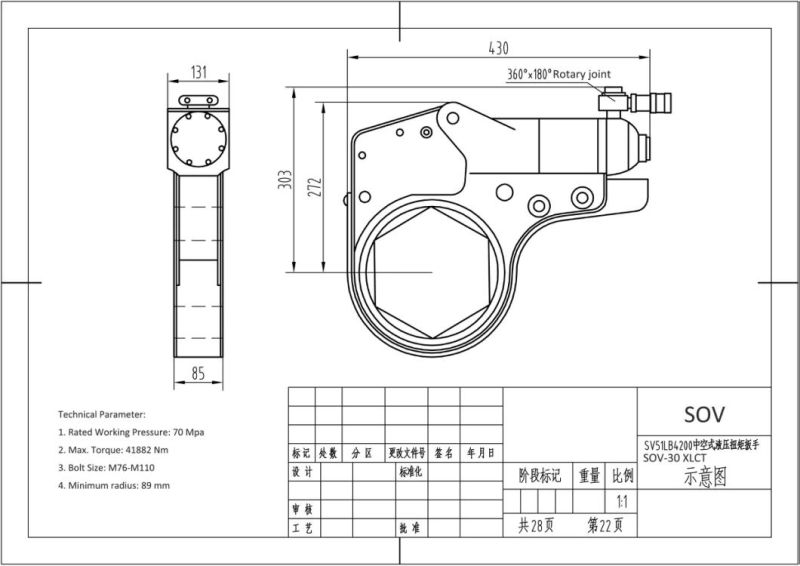

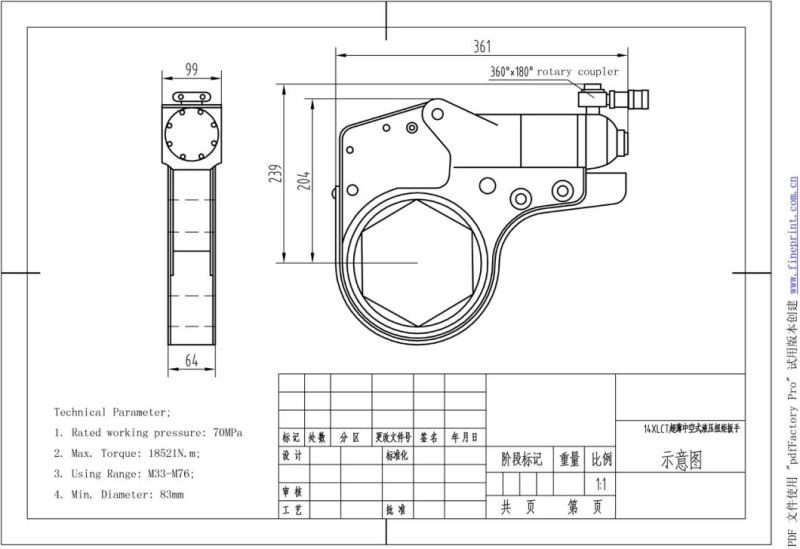

Drawings

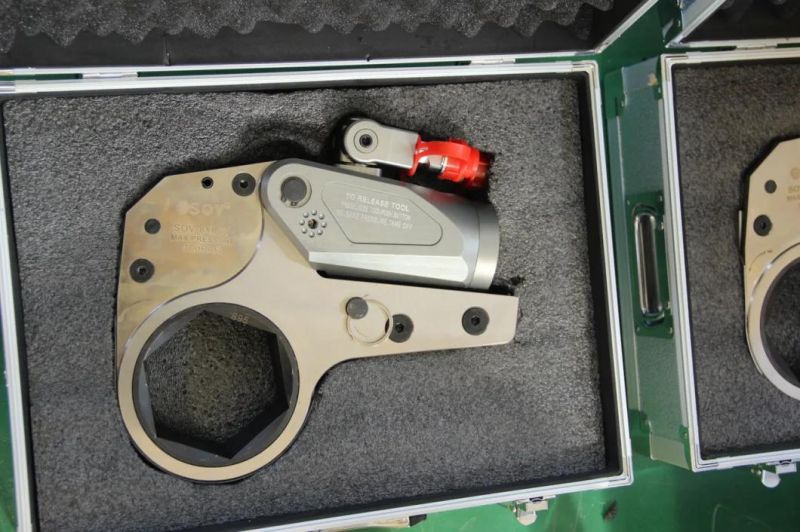

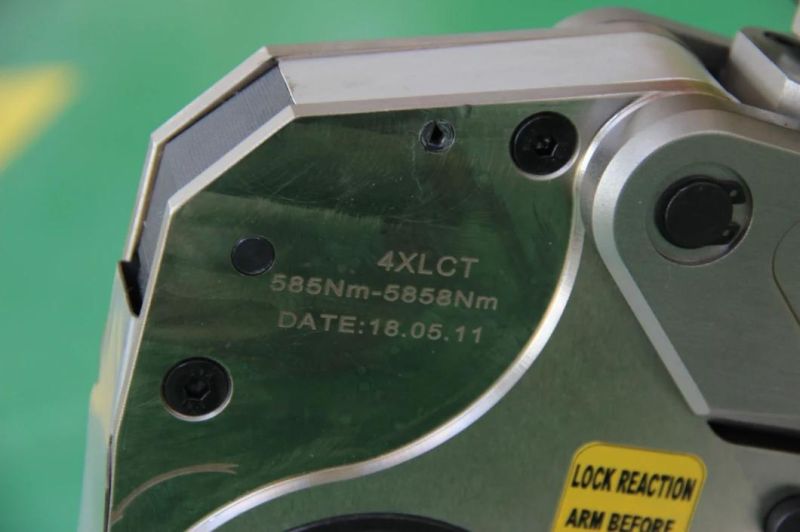

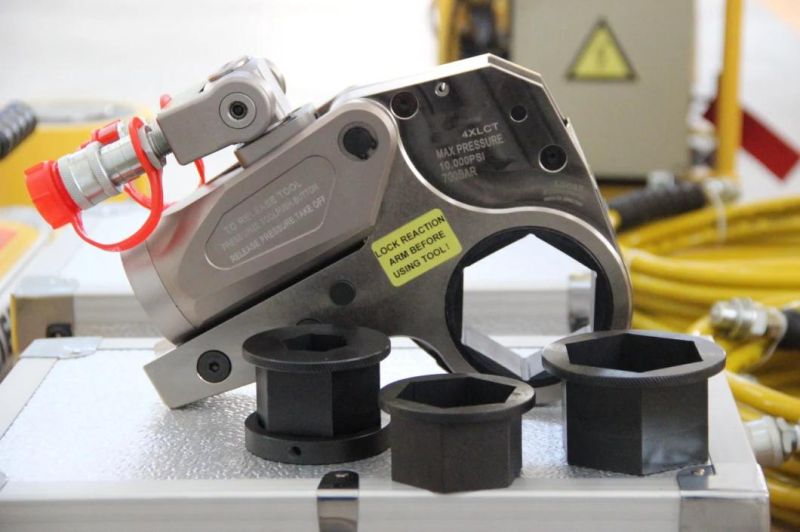

Photos










Parameter

Model	SOV-2XLCT	SOV-4XLCT	SOV-8XLCT	SOV-14XLCT	SOV-30XLCT
Torque Range (nm)	232-2328	585-5858	1094-10941	1852-18521	4188-41882
Bolt Size (mm)	16-36	24-42	30-64	33-76	76-115
Nut Size (mm)	24-55	36-65	46-90	50-110	110-165

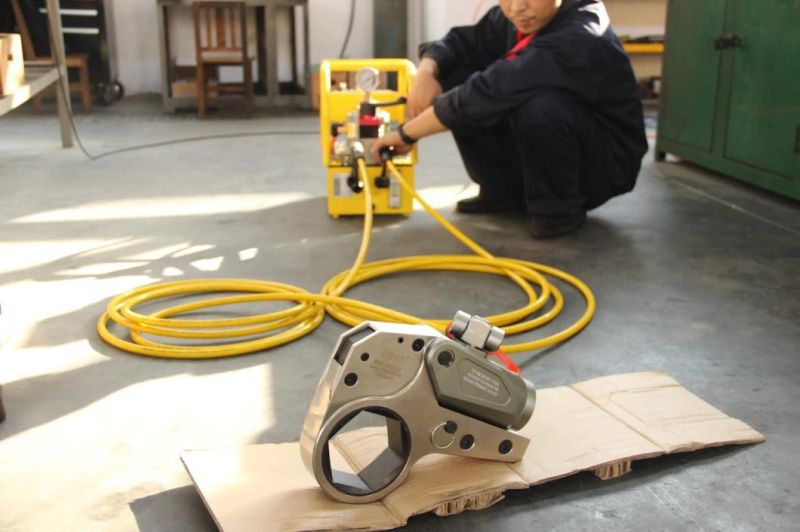

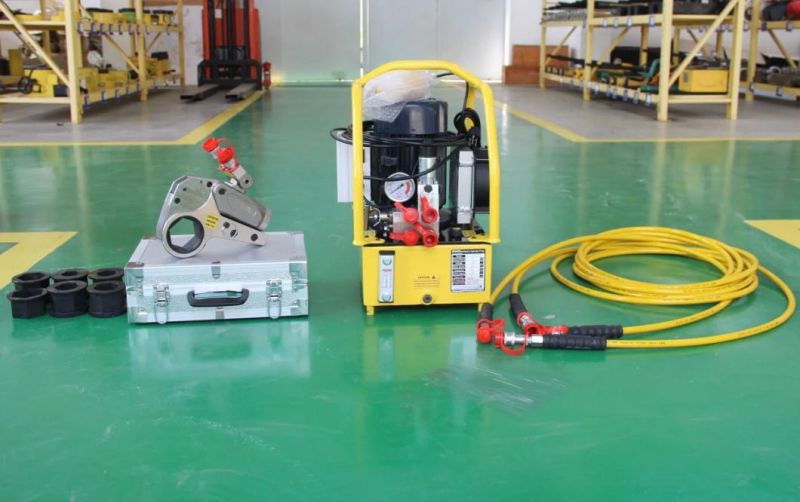

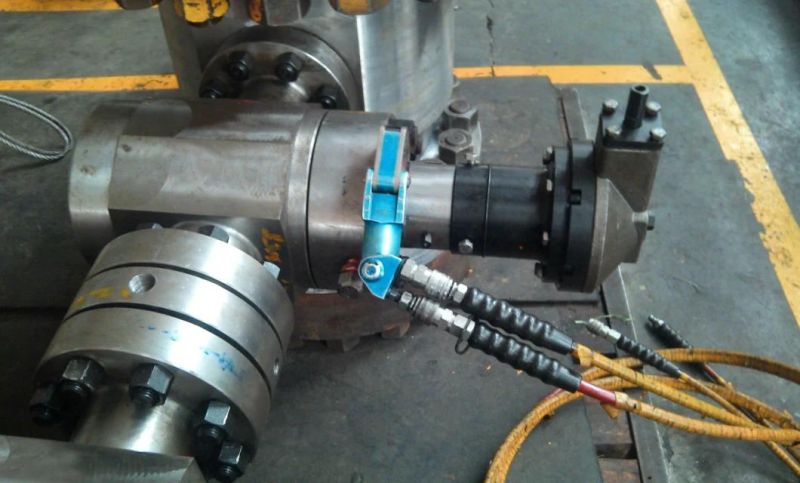

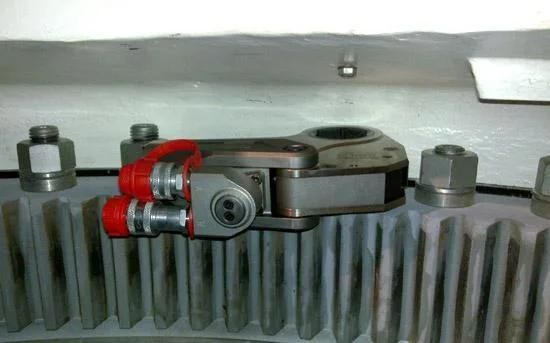

Applications

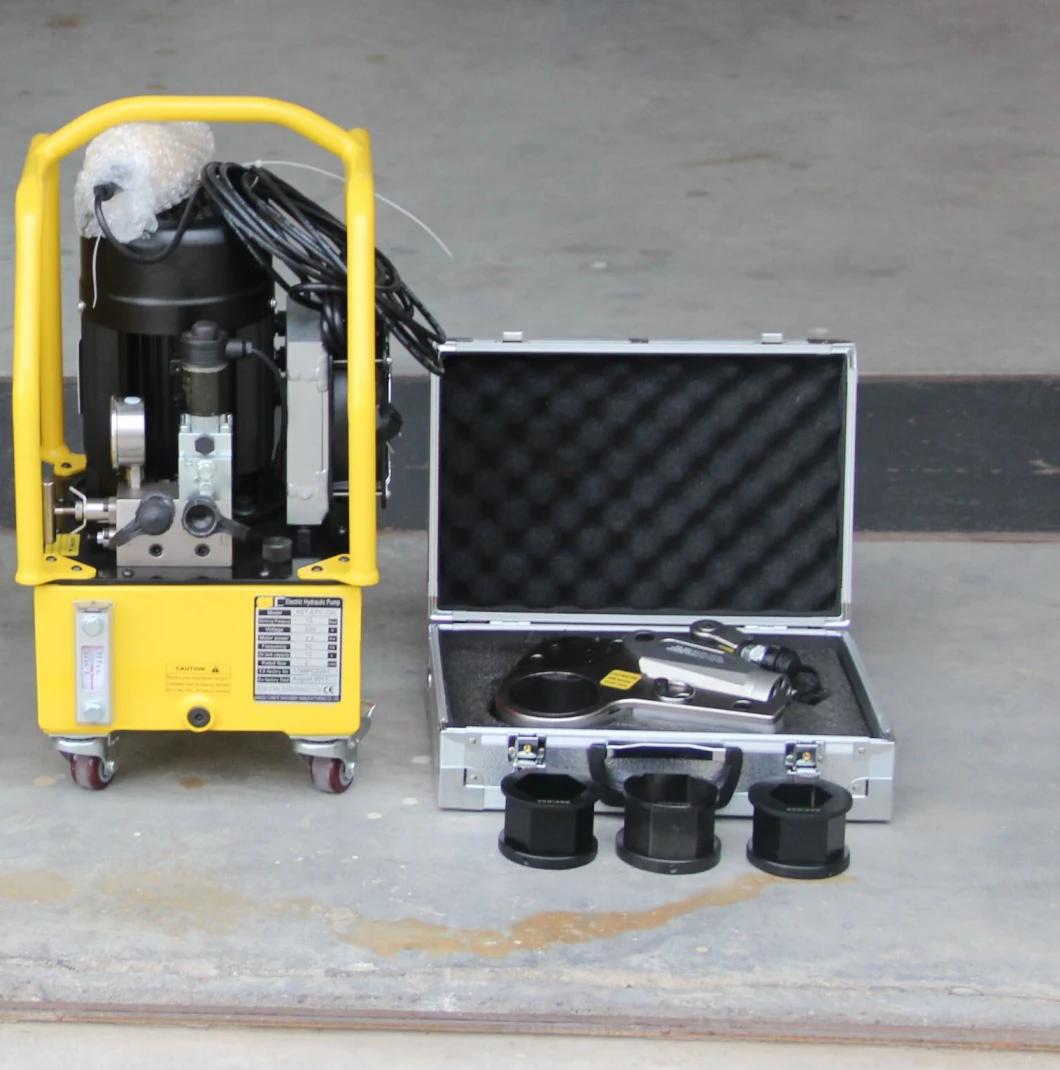

Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: alloy case;
3. Customized packaging acceptable.

Delivery
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.


Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information


SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.

Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards,  China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.

Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.

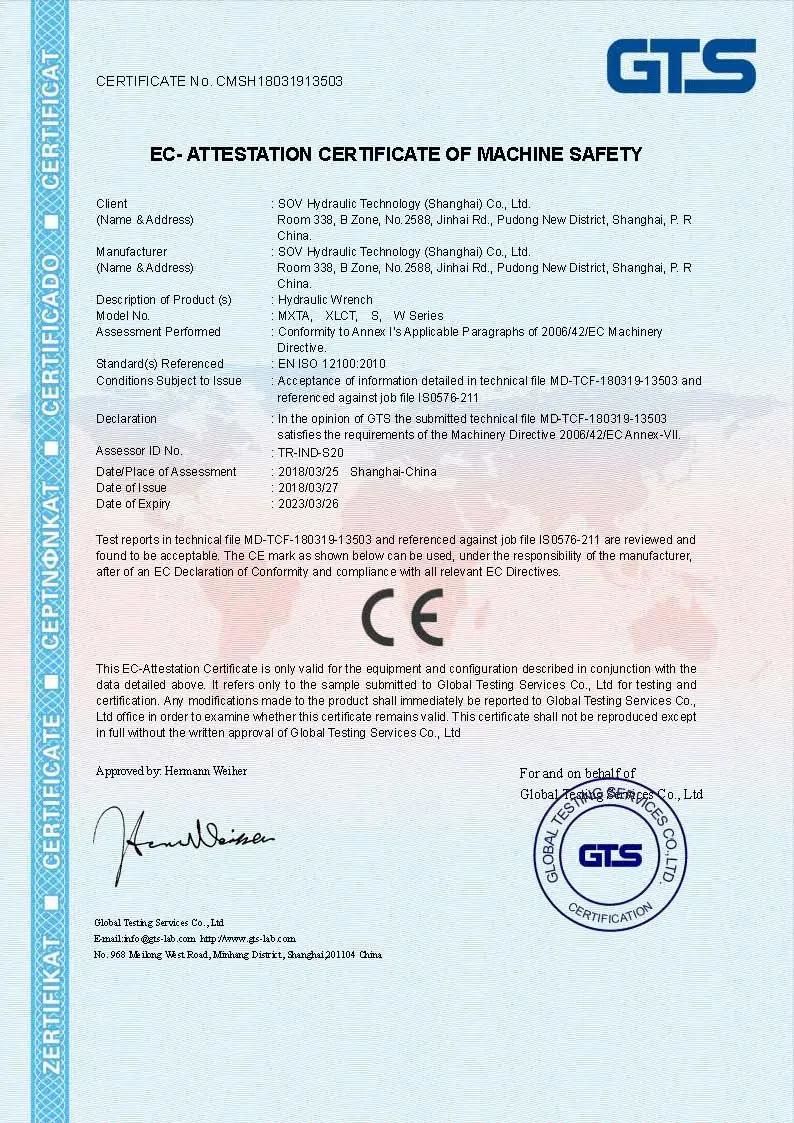

Certificate
