• Model NO.：DB-BTJ
• Function：Strip The Steel Cords From Steel Conveyor Belt
• Component：Motor, Upper and Lower Knives, Winch, Slide Unit
• Application：Transmission Belt, Belt Splicing, Steel Cord Stri
• Transport Package：Plywood Case, Pallet, Crate
• Specification：1.5kw, 380v, 50hz
• Trademark：Jiaozuo Debon
• Origin：China
• HS Code：8477800000
• Production Capacity：5000 Sets, Month

Basic Info.

Model NO. DB-BTJ Function Strip The Steel Cords From Steel Conveyor Belt Component Motor, Upper and Lower Knives, Winch, Slide Unit Application Transmission Belt, Belt Splicing, Steel Cord Stri Transport Package Plywood Case, Pallet, Crate Specification 1.5kw, 380v, 50hz Trademark Jiaozuo Debon Origin China HS Code 8477800000 Production Capacity 5000 Sets/ Month

Product Description

Why Choose Us
We will be your reliable partner and supplier.
1. Over 20 years experience in wear products and conveyor accessories.
2. Over 10 years experience in exporting, UK, France, Chile, Canada, USA, Finland, Australia, Russia, Indonesia, Thailand, etc.
3. SGS audited supplier.
4. ISO9001:2015 certified factory.
5. Strict QC/QA makes sure high quality and consistency.

 Product Description

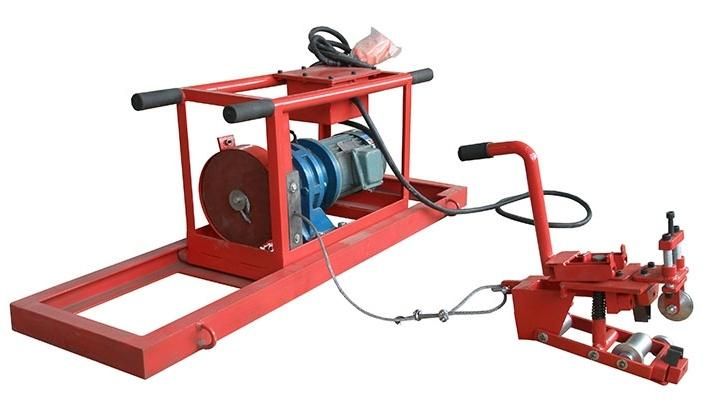

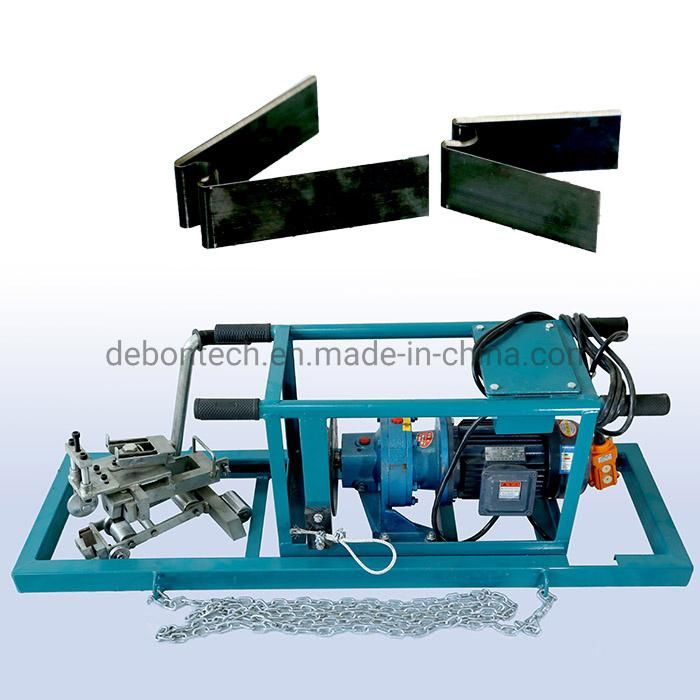

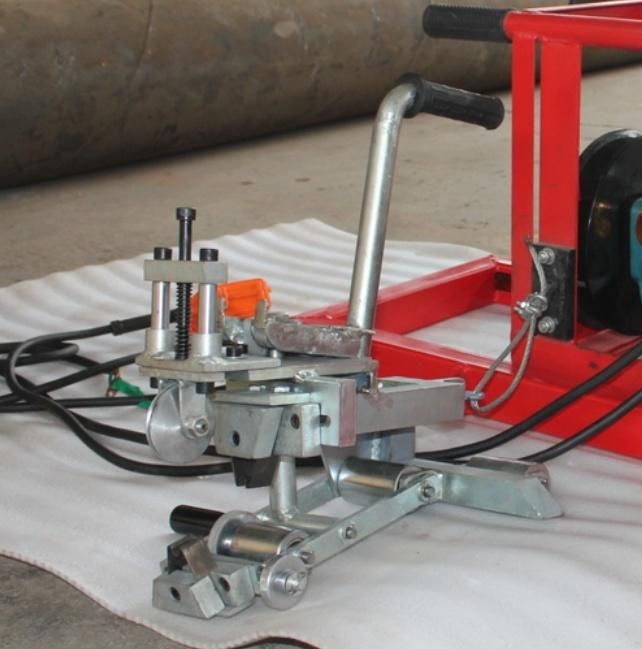

 Conveyor Belt Stripper Steel Cord Stripper
DB-GBTJ  Steel Cord Conveyor Belt Stripping machine during Conveyor Belt Splicing is designed and used to strip the steel cords from conveyor belt which is to be spliced.

The operation can be carried out in the vulcanizing shop or on site.
The cutting unit is suitable for cable pitches from 10-25mm and for cable diameters from 4.9-13.2 mm.
The rubber cover thickness can be up to 12mm on the running side and up to 25 mm on the carrying side. The total belt thickness can be up to 40 mm.

Technical Data of Conveyor Belt Stripper Steel Cord Stripper:
1.Voltage:380V
2.Power:1.5kw
3.Linear velocity:0.3m/s
4.Cable diameters:Φ3.5~13.5mm
5.Weight:103.8kg(work device:15.3kg, traction device:88.5kg)

Features of Conveyor Belt Stripper Steel Cord Stripper:no turning off the belt, because the rubber cover on both sides are removed in one single operation.
thickness of the remaining rubber can be arbitraily controlled, and this can ensure the vulcanization effects.
easy to operate, save time and reduce labor intensity.

Attentions of Steel Cord Conveyor Belt Stripper:
Power should be connected and operated by a professional electrician.
Cord Stripper should be fixed as working, and prevent sliding.

Operation of Conveyor Belt Stripper Steel Cord Stripper:
1. Firstly, find out the joints of the steel cord conveyor belt,and peel off 200mm steel cords with conventional methods.

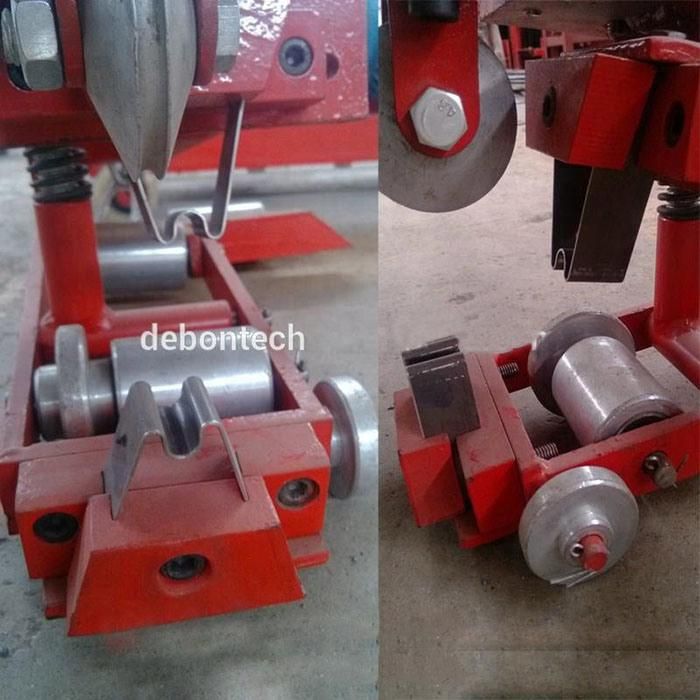

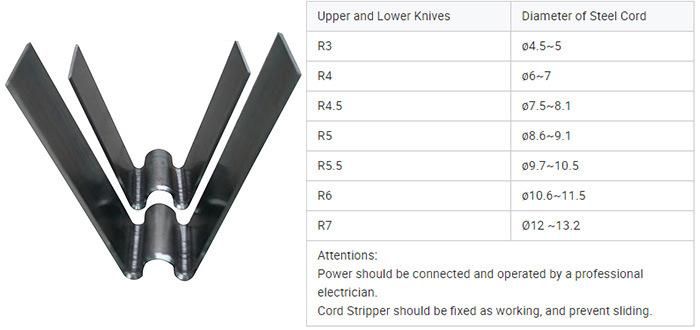

2. Choose suitable upper and lower knives according to the steel rope diameter and the pitches, and then set the stripping machine.
3. The upper knife holds down the first steel rope, and the lower knife drags the second, then make the traction device work.The cable stripping machine can peel off the covering rubber evenly.

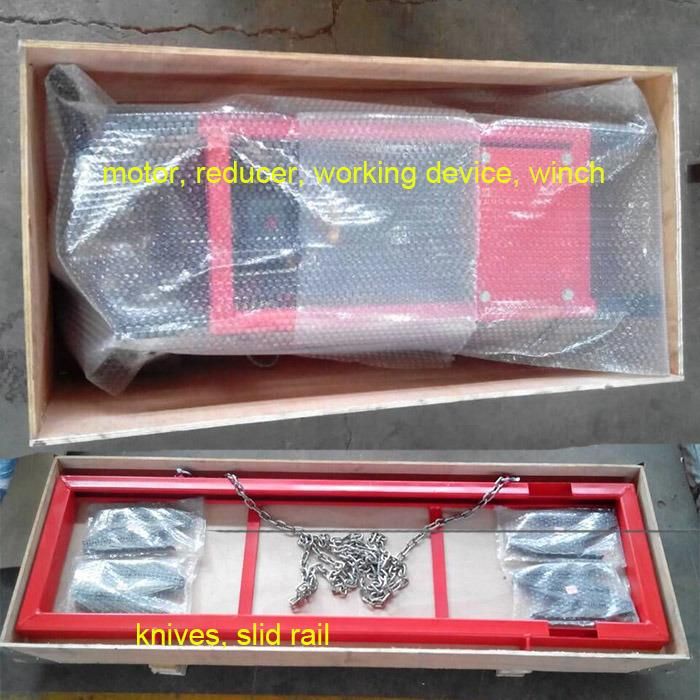

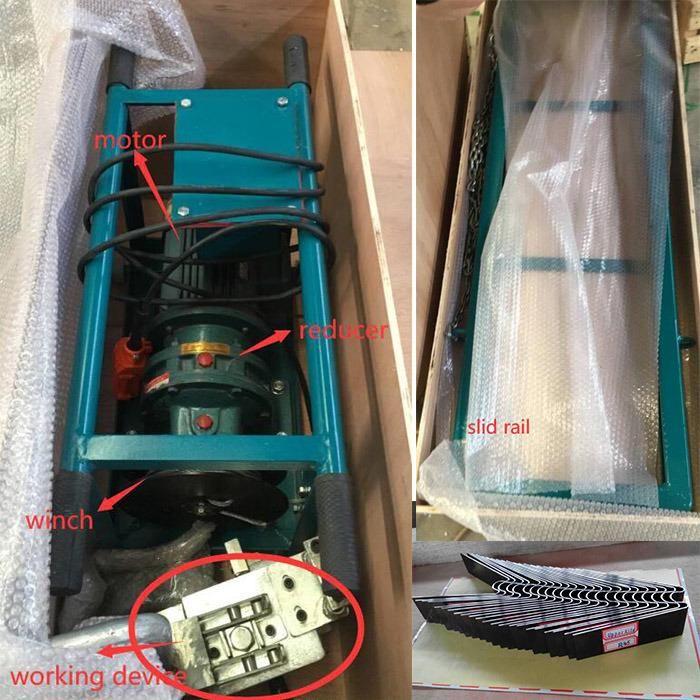

Package of Conveyor Belt Stripper Steel Cord Stripper:
