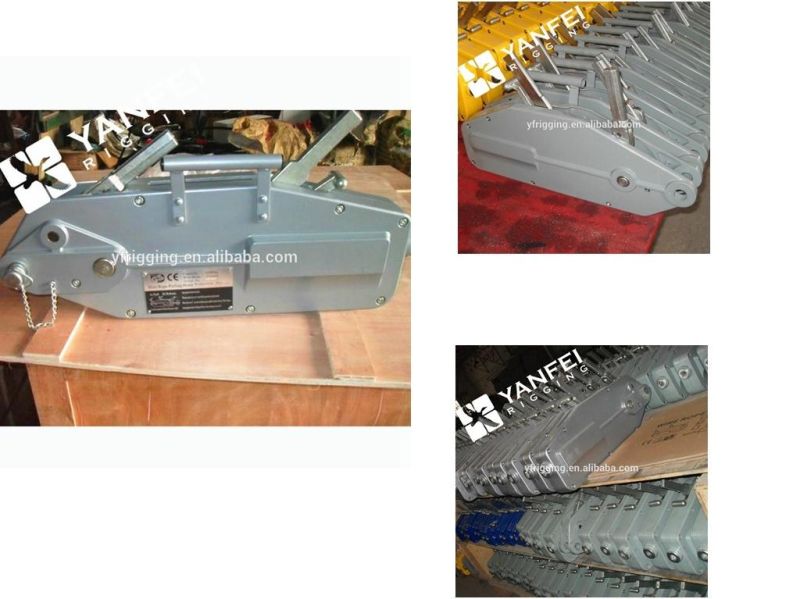

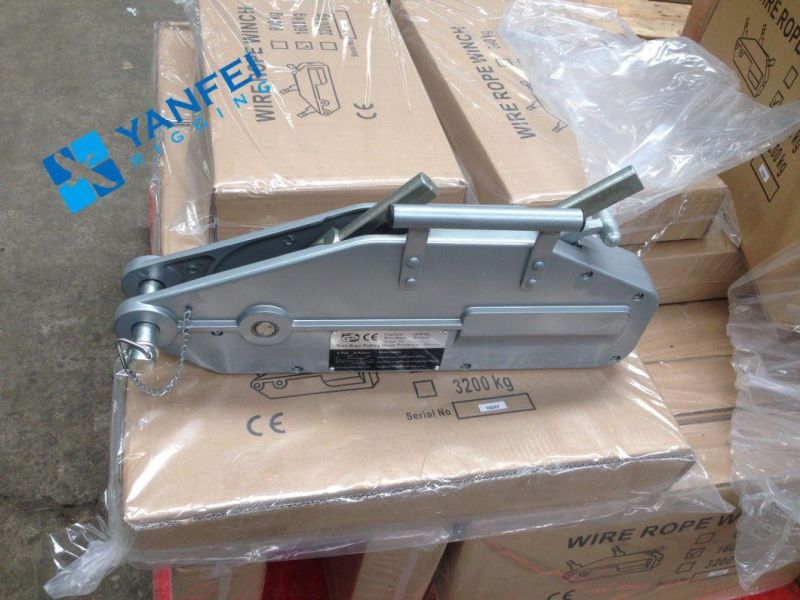

Hand Manual Steel Wire Cable Hoist Puller
Qingdao Yanfei Rigging Co., Ltd.- Sling Type：Wire Rope
- Product Name：Hand Manual Steel Wire Cable Hoist Puller
- Usage：Construction Hoist
- Power Source：Manual
- Rated Capacity：0.8 T- 5.4t
- Transport Package：Carton, Pallet
Base Info
- Model NO.：Steel Rope Pulling Hoist
- Specification：0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M
- Trademark：YANFEI,OEM
- Origin：Shandong, China
- Production Capacity：100000000pieces,Year
Description
Model Item YF-800 YF-1600 YF-3200 YF5400 Rated forward hand power 341 438 438 745 Rated capacity t 800 1600 3200 5400 Rated forward travel mm >=52 >=55 >=28 >=30 Rope diameter mm 8.3 11 16 20 Wire rope safty factor load capacity 5 5 5 5 Max traveling load 1200 2400 4000 8000 Net weight 6.4 12 28 56 Max outer size mm A 426 545 660 930 B 238 284 325 480 C 64 97 116 152 L1 (cm) 80 80 68 L2 (cm) 80 120 120 112 Packing (L*W*H)(CM) 43*6.4*24 54.5*9.7*29 66*12*35 110*110*73
1.Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M. The lifting height can be
customized.
2.All hoists are supplied complete with 20 meter wire rope and an extendable operating
lever.
3.Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
4.The hoist has low maintenance requirements and is easy service.
5.Overload protection ensures high personal safety when in operation.
6.Specially built-in shear pins can be replaced without removing the load.

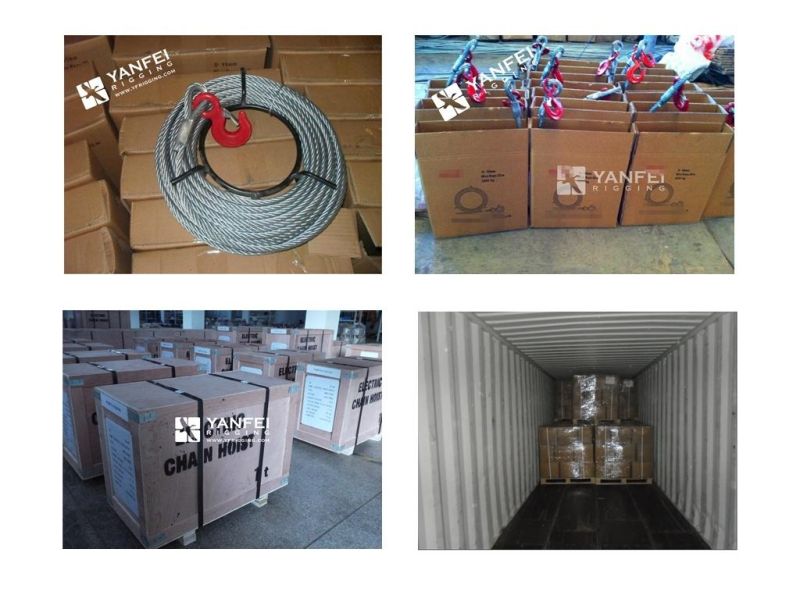

Package and shipping
Packlage : Carton box in pallet
Shipping : Within 20-35days when we confirm your order and get payment .

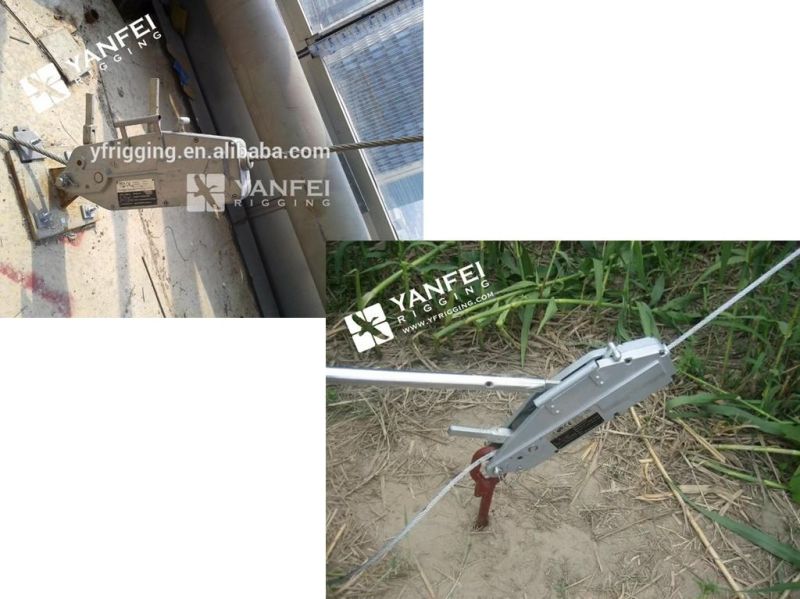

Application
Qingdao Yanfei Rigging Co., Ltd. is located in Qingdao, China. For many years supplies a range of industrial products that covers lifting, lashing, slings, rigging, marine, mining, towing, transportation, construction, fishing and security applications...We provide not only high quality goods but also more additional benefits for our clients and partners.
Our service
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries professional in English of course.
• OEM is highly welcomed. We have strong team here to help.
• Your business relationship with us will be confidential to any third party.
Contact
