• Model NO.：HL-300
• Structure：Box Joint
• Handle Color：Metallic
• Application Age：Adult
• Use Place：Building Decoration
• Size：Common
• Crimping Force：60kn
• Crimping Range：10-300 Sqmm
• Stroke：17mm
• Weight：4.8kg
• Recharging Voltage：110-240VAC
• Number of Die：12PCS
• Pakcage Box：Plastic Case
• Transport Package：1PCS,Bag
• Specification：60KN
• Trademark：UTL
• Origin：China
• Production Capacity：50, 000PCS,M

Basic Info.

Model NO. HL-300 Structure Box Joint Handle Color Metallic Application Age Adult Use Place Building Decoration Size Common Crimping Force 60kn Crimping Range 10-300 Sqmm Stroke 17mm Weight 4.8kg Recharging Voltage 110-240VAC Number of Die 12PCS Pakcage Box Plastic Case Transport Package 1PCS/Bag Specification 60KN Trademark UTL Origin China Production Capacity 50, 000PCS/M

Product Description

HL-300 Battery Operated Crimping Tools.

Features:
1. 360 degree flip-top latch rotary crimping head, working at any site.
2. Pistol type tool body design for better balance and easy handling.
3. Double piston pump and powerful motor ensure quick crimp
4. Automatically fully retract ram and stop motor when complete crimp
5. Manually retract ram in case of need
6. LED illuminate work area & low battery charges or lacking pressure an acoustic signal sounds and LED flash
7. Li-ion battery with high capacity and require short charging time
8. A temerature sensor makes the tool stop working automatically when the temerature over 60ºC under long time working.

Parameters:

Crimping force	60KN
Crimping range	10~300 sqmm
Stroke	17mm
Crimping /charge	320 crimps (Cu 150mm2)
Crimping cycle	3s-6s
Battery voltage	18V
Battery capacity	3.0Ah
Charging time	2hrs
Weight	N.W 4.8Kg
G.W	11Kg
Carton size	540x430x147mm
Package	Plastics case
Accessories
Crimping die set	10,16,25,35,70,95,120,150,185,240,300 sqmm
Battery	2pcs
Charger	1pcs
Sealing ring of cylinder	1set
Sealing ring of safety valve	1set

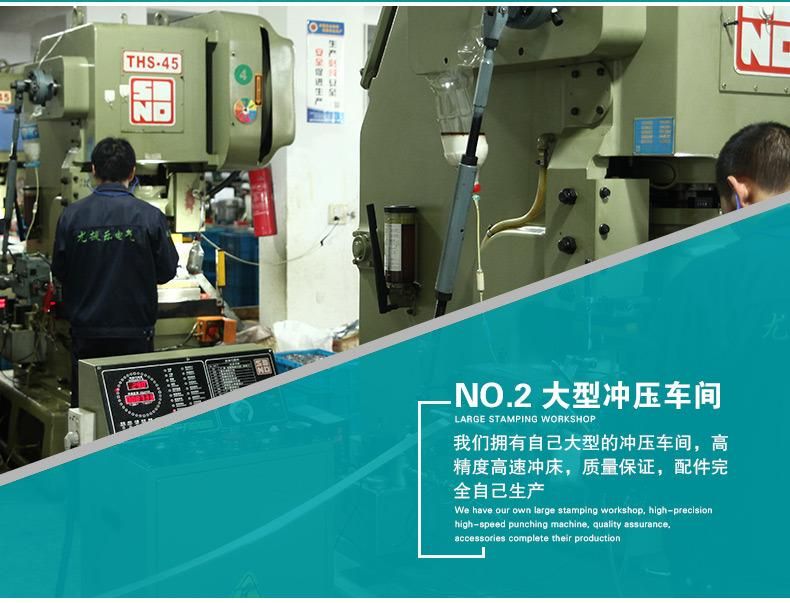

For more info, product spec or quote, please feel free to contact us. UTL is a prefessional manufacturer with 30-year experience in providing wiring solution in premium quality and affordable prices.
