• Model NO.：VIT
• Pulling Capacity：800kgs 1600kgs 3200kgs 5400kgs
• Material：Aluminium Alloy Cover , Galvanized Wire
• Usage：Floor Pulling Materials
• Transport Package：Packed by Carton, Woodon Case
• Specification：Net weight 58kgs for capacity 5400kgs
• Trademark：HUGO
• Origin：China-Shanghai
• HS Code：8425190000
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. VIT Pulling Capacity 800kgs 1600kgs 3200kgs 5400kgs Material Aluminium Alloy Cover , Galvanized Wire Usage Floor Pulling Materials Transport Package Packed by Carton, Woodon Case Specification Net weight 58kgs for capacity 5400kgs Trademark HUGO Origin China-Shanghai HS Code 8425190000 Production Capacity 2000PCS/Month

Product Description

Introduction

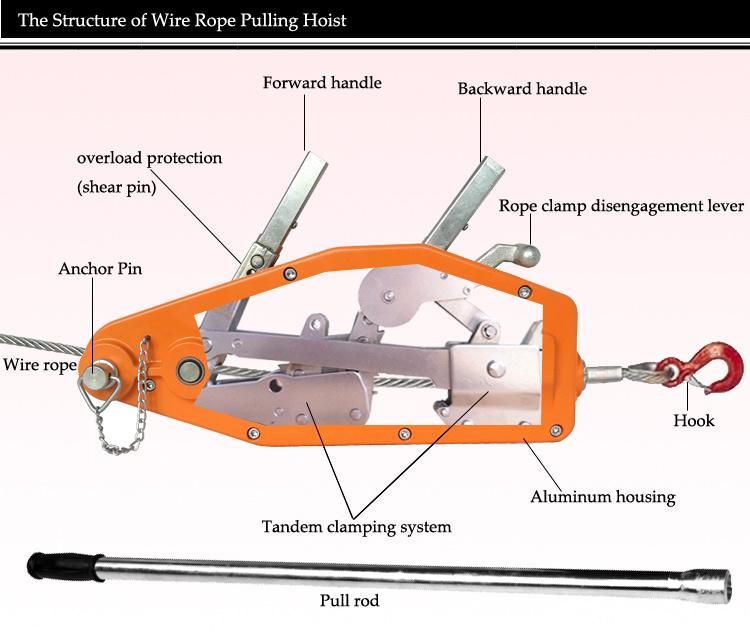

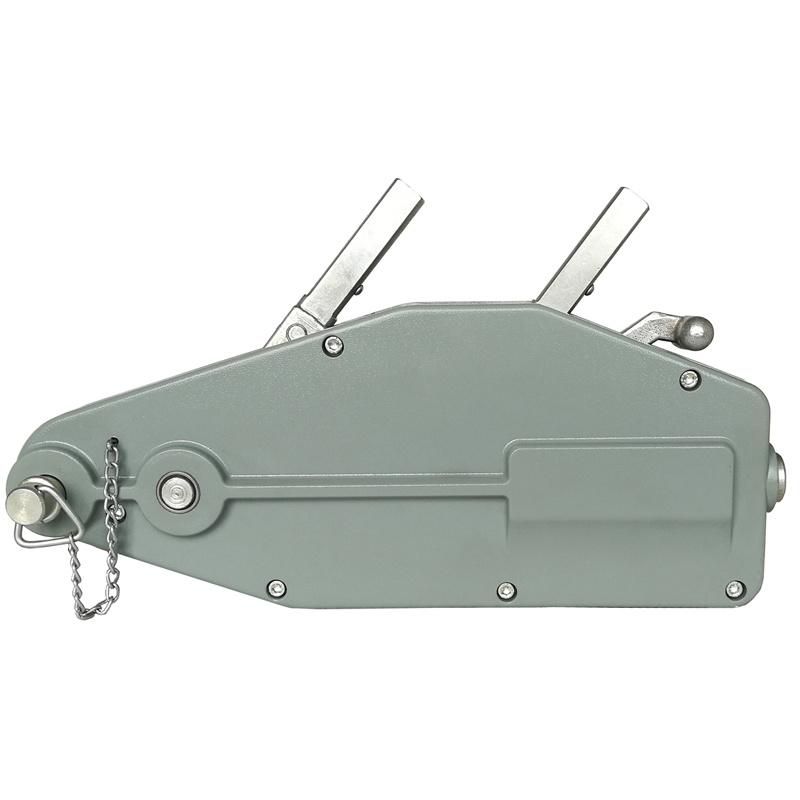

It is a kind of newly designed, uncomplicated structured, convenient-to-use lever hoist with the function of adjusting the beneath-hook quickly, safe and reliable. Its new style, beautiful body, good braking performance and high working efficiency enable it to be able to be widely used in factory, mineral, building site, Harbor and transportation areas and so on. It is the ideal equipment for Equipment installation.

The steel wire rope lever block which the material is aluminum alloy also it is light and easy to carry. General specifications of the steel wire rope tirfor are 800kg/1600kg/3200kg. /5400kg Lateral traction is 5t, standard meters for 20 meters and the largest up to 100 meters, the safety factor is 5 times.


The specifications of Outdoor Used Wire Rope Pulling VIT Winches

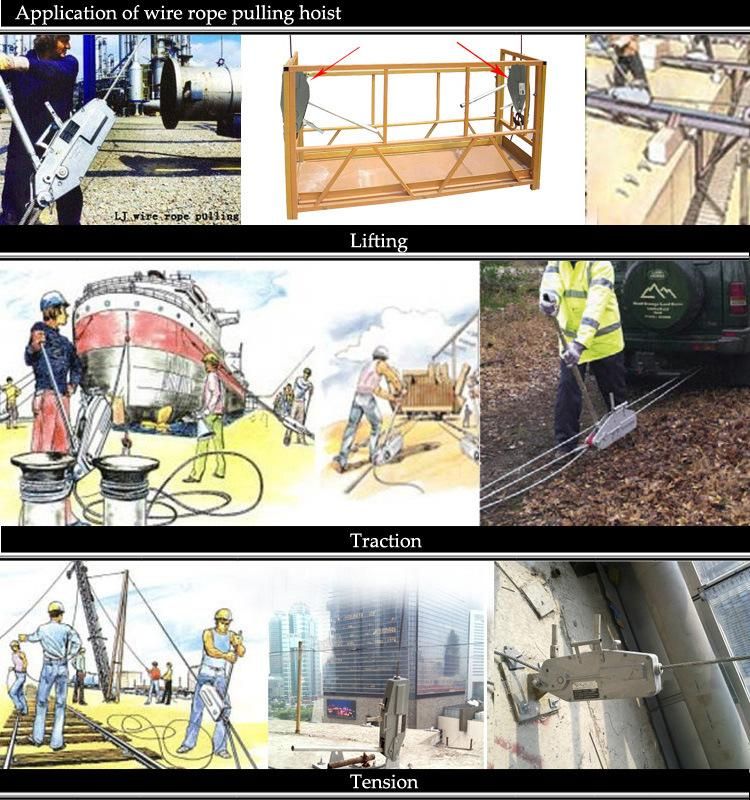

It has such distinct merits as small cubage, light weight, beautiful appearance, small manual force, safety

And reliability. And long opertional life-span, It is especially used in occasion without power source such

As shipbuilding, post office, mines, electric power, and transportation units in heavy goods

Suspending, equipment fixing, mechanism traction, and aerial exercise, it can rapidly unhitch brake

Equipment under unloaed condition. So that the flying hook can remove fleetly, we also can choose and

Add structure without light load limit according to the needs of clients.

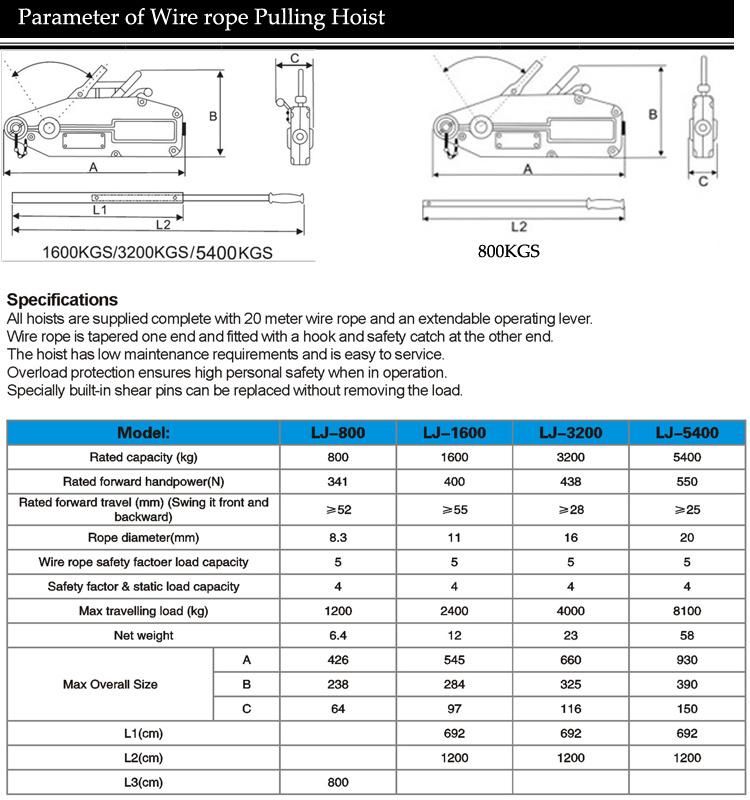

Model	HX-800	HX-1600	HX-3200
Rated  capacity        (kg)	800	1600	3200
Rated  forward  hand  power            N	343	441	441
Rated  forward  travel          mm	>   52	>   55	>   28
Rope  diameter      mm	8.3	11	16
load  capacity	5	5	5
Load  capacity	5	5	5
Max  traveling  load  kg	1200	2400	4000
Net  weight        (kg)	6	11	22
