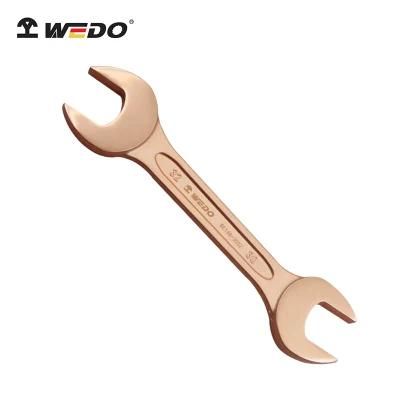

• Model NO.：BE146
• Feature：Anti-Explosion, Anti-Magnetic
• Working Mode：Manual
• Folded：Unfolded
• Handle Color：Pure
• Application Age：Adult
• Transport Package：Plastic Bag,Box,Carton,Pallet
• Specification：5*7-75*85
• Trademark：WEDO
• Origin：China
• HS Code：8204110000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. BE146 Feature Anti-Explosion, Anti-Magnetic Working Mode Manual Folded Unfolded Handle Color Pure Application Age Adult Transport Package Plastic Bag/Box/Carton/Pallet Specification 5*7-75*85 Trademark WEDO Origin China HS Code 8204110000 Production Capacity 50000PCS/Year

Product Description

ABOUT US
WEDO TOOLS CO., LTD, as an international professional enterprise, specializes in design, research, manufacturing, processing and marketing of hardware tools. Our products are one-time die-forged by large friction pressing machines, completely in accordance with Germany DIN standard and China GB standards. Based on a scientific management system, stat-of-art and unique design concepts, advanced production technology and a well-developed quality assurance system, we provides high-quality products and services for our customers. WEDO TOOLS has been highly praised by our new and old customers because of our user-friendly design concept, continuous improvement of excellent quality and after-sales services.

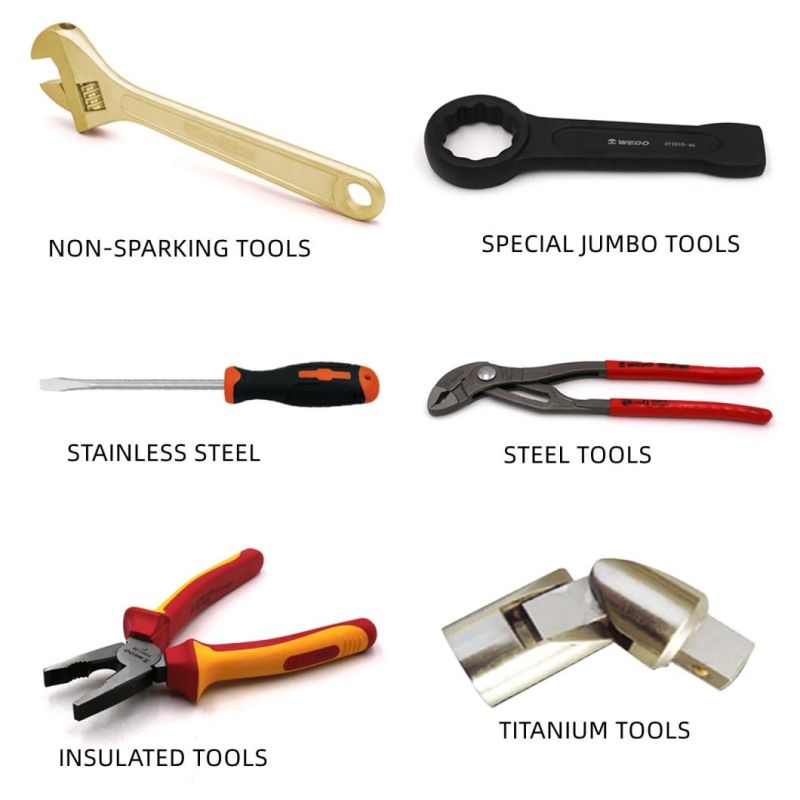

WEDO TOOLS develops six series of products, including non-sparking tools, stainless steel tools, titanium tools, insulated tools, special jumbo tools and ordinary steel tools. We not only produce and sell tools in Germany and China, but also export to more than 100 countries and regions all over the world, such as the USA, Russia, Japan, France, etc. In order to further improve customers' satisfaction, WEDO has established service centers in Tianjin, Shanghai, Korea, Russia, Germany, Singapore and Canada, supplying safe and innovative hand tools and in-time after-sale services to end users. We sincerely invite people all over the world to share the pleasure of tools.

OUR PRODUCT

SPECIFICATION

ITEM CODE	SIZE	L	WEIGHT
BE146-0507	5.5*7	90	23
BE146-0607	6*7	92	25
BE146-0709	7*9	96	28
BE146-0810	8*10	100	34
BE146-0911	9*11	110	50
BE146-1011	10*11	115	52
BE146-1012	10*12	120	60
BE146-1014	10*14	124	68
BE146-1213	12*13	128	73
BE146-1214	12*14	130	75
BE146-1317	13*17	150	120
BE146-1415	14*15	143	125
BE146-1417	14*17	150	120
BE146-1617	16*17	157	130
BE146-1618	16*18	163	145
BE146-1719	17*19	170	150
BE146-1721	17*21	173	185
BE146-1819	18*19	175	200
BE146-1921	19*21	182	210
BE146-1922	19*22	185	220
BE146-1924	19*24	190	235
BE146-2022	20*22	195	250
BE146-2123	21*23	200	270
BE146-2126	21*26	205	275
BE146-2224	22*24	210	312
BE146-2227	22*27	215	320
BE146-2326	23*26	220	330
BE146-2427	24*27	230	345
BE146-2430	24*30	233	365
BE146-2528	25*28	236	365
BE146-2632	26*32	243	465
BE146-2730	27*30	250	485
BE146-2732	27*32	255	600
BE146-3032	30*32	265	610
BE146-3036	30*36	270	825
BE146-3234	32*34	270	825
BE146-3236	32*36	300	885
BE146-3436	34*36	300	885
BE146-3638	36*38	330	1350
BE146-3641	36*41	330	1350
BE146-3840	38*40	330	1350
BE146-4146	41*46	360	1690
BE146-4650	46*50	370	2050
BE146-5055	50*55	385	2160
BE146-5060	50*60	400	2488
BE146-5560	55*60	415	2700
BE146-6065	60*65	435	3950

Above item no. is only for Beryllium Copper material, Besides Beryllium Copper, WEDO also supply in Aluminium Bronze below are differences of two material.
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%

Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%

To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC,  hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.

DETAILS AND APPLICATION
