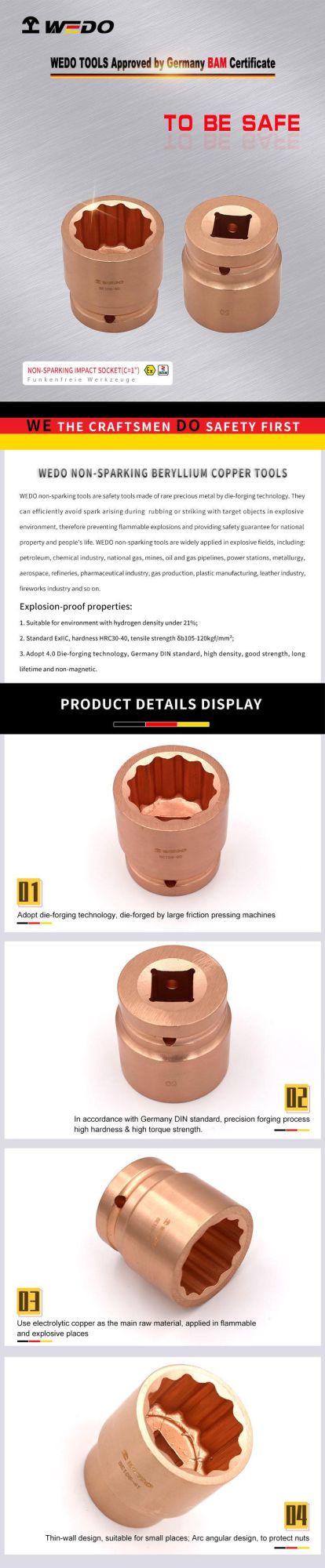

WEDO 1" Impact Socket Non Sparking Beryllium Copper High Quality Impact Socket Bam/FM/GS Certified
WEDO TOOLS CO.,LTD- Trademark：WEDO
- Origin：China
Base Info
- Model NO.：BE108
- HS Code：8204200000
- Production Capacity：30000 Piece Per Year
Description
SIZE Beryllium Copper S L N.W. (g) BE108-19 19 55 630 BE108-21 21 55 640 BE108-22 22 55 650 BE108-24 24 55 660 BE108-26 26 55 735 BE108-27 27 55 735 BE108-29 29 60 760 BE108-30 30 60 765 BE108-32 32 60 775 BE108-34 34 60 775 BE108-35 35 60 775 BE108-36 36 60 775 BE108-38 38 65 865 BE108-41 41 65 930 BE108-46 46 70 1380 BE108-50 50 75 1455 BE108-52 52 75 1715 BE108-55 55 75 1830 BE108-58 58 85 2080 BE108-60 60 85 2200 BE108-65 65 85 2460 BE108-70 70 90 2890 BE108-75 75 90 3155 BE108-80 80 90 3560
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
DETAILS AND APPLICATION
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
