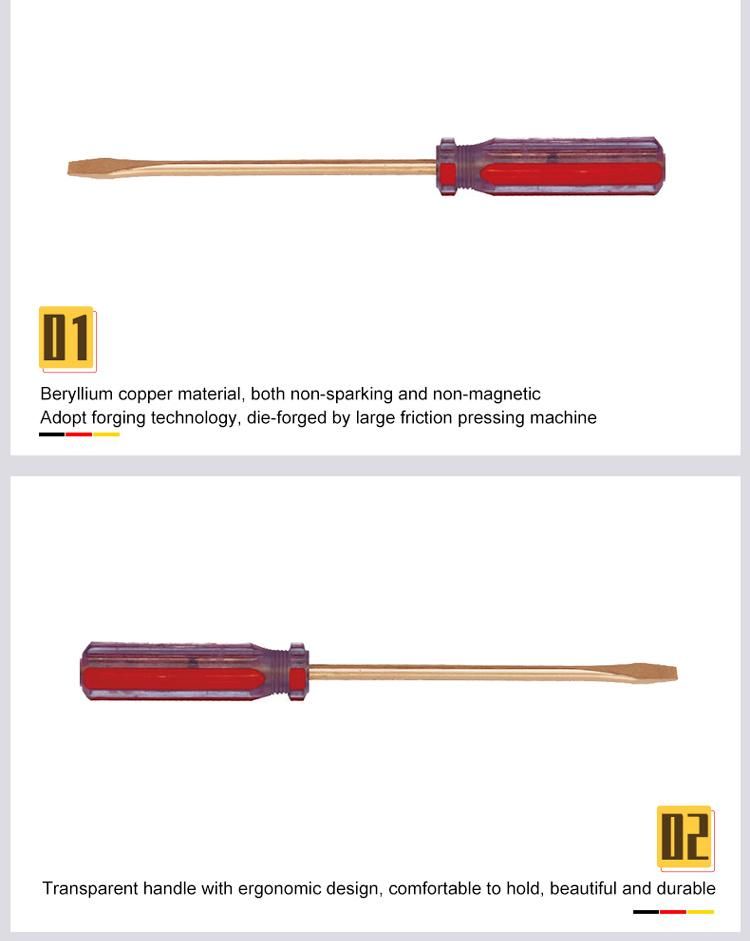

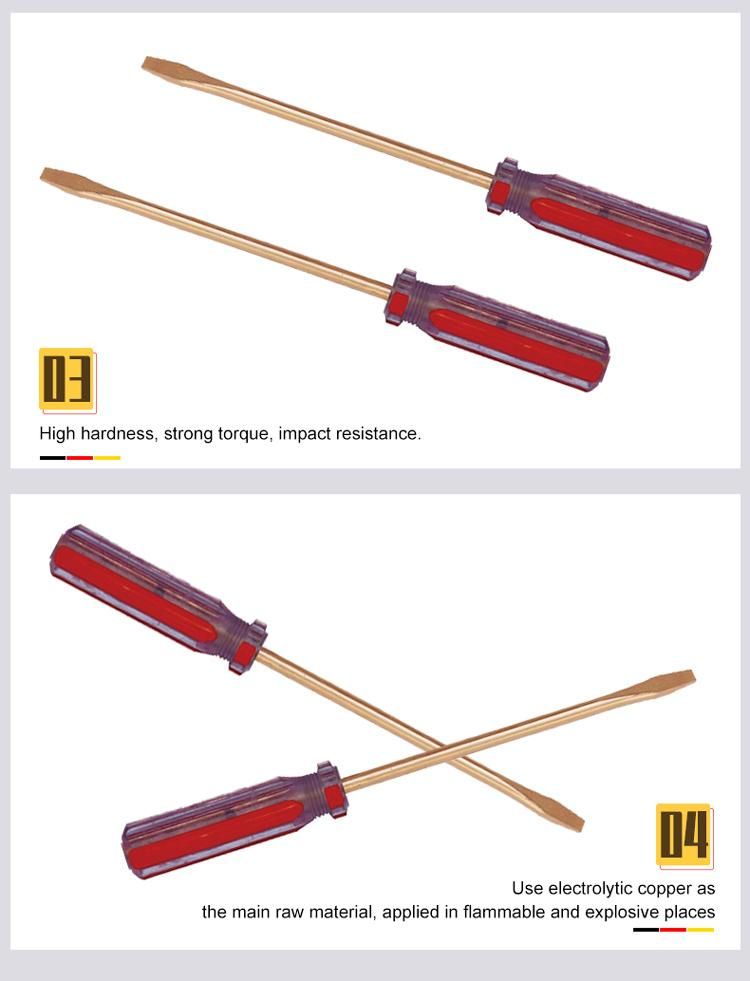

WEDO Beryllium Copper Slotted Screwdriver Non-Sparking Flat-Head Screwdriver Bam/FM/GS Certified
WEDO TOOLS CO.,LTD- Type：Slotted Screwdriver
- Material：Beryllium Copper
- Screw Head Type：Slotted
- Structure：Straight Type
- Brand：WEDO
- Size：Common
Base Info
- Model NO.：BE263
- Use Place：Inflammable and Explosive
- Adjusted：Unadjustable
- Folded：Unfolded
- Application Age：Adult
- Transport Package：Plastic Bag,Box,Carton,Pallet
- Trademark：WEDO
- Origin：China
- HS Code：8205400000
- Production Capacity：30000 Piece Per Year
Description
SIZE Beryllium Copper L1(inch) L1(mm) L(mm) H(mm) B(mm) N.W. (g) BE263-1002 2 50 108 0.5 3 35 BE263-1004 3 75 133 0.6 3 48 BE263-1006 3 75 153 0.8 4 50 BE263-1008 3 75 153 1 5 51 BE263-1010 4 100 178 0.8 4 60 BE263-1012 4 100 178 1 5 71 BE263-1014 4 100 193 1.1 6 77 BE263-1016 6 150 243 1.2 7 115 BE263-1018 8 200 305 1.2 8 197 BE263-1020 10 250 355 1.6 9 221 BE263-1022 12 300 420 1.6 10 304 BE263-1024 14 350 470 1.8 11 365
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
DETAILS AND APPLICATION
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
