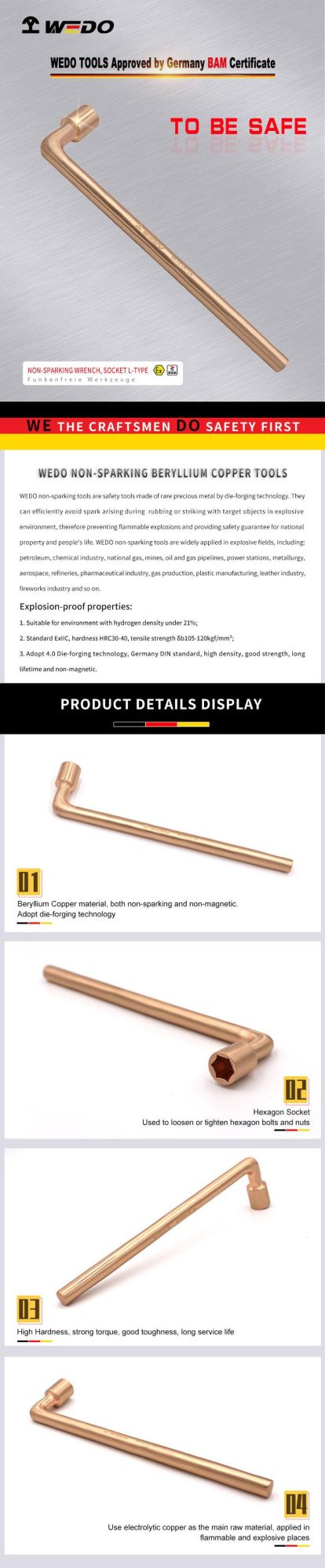

WEDO Beryllium Copper Spanner Non-Sparking Socket Wrench L-Type Bam/FM/GS Certified
WEDO TOOLS CO.,LTD- Type：Socket Wrench
- Material：Beryllium Copper
- Standard：American Type, Metric, German Type
- Brand：WEDO
- Surface Treatment：Beryllium Copper
- Size：Common
Base Info
- Model NO.：BE121A
- Feature：Anti-Explosion
- Working Mode：Manual
- Folded：Unfolded
- Handle Color：Golden Yellow
- Application Age：Adult
- Transport Package：Plastic Bag,Box,Carton,Pallet
- Trademark：WEDO
- Origin：China
- HS Code：8204110000
- Production Capacity：30000 Piece Per Year
Description
SIZE Beryllium Copper S(inch) L(mm) H(mm) N.W. (g) BE121A-6 6 120 29 40 BE121A-8 8 144 33 70 BE121A-10 10 168 37 100 BE121A-12 12 216 42 155 BE121A-13 13 240 45 215 BE121A-14 14 245 45 250 BE121A-15 15 250 48 280 BE121A-16 16 255 48 335 BE121A-17 17 260 51 380 BE121A-18 18 265 53 420 BE121A-19 19 270 55 460 BE121A-20 20 272 57 520 BE121A-21 21 275 57 650 BE121A-22 22 278 59 750 BE121A-23 23 282 60 800 BE121A-24 24 286 63 850 BE121A-27 27 294 69 900 BE121A-30 30 302 75 1000 BE121A-32 32 210 81 1100 BE121A-36 36 330 85 1300 BE121A-41 41 350 90 1500
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
DETAILS AND APPLICATION
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
