Professional Manual Winch with Automatic Brake (WH Series)
Hardlift Equipment Co., Ltd.- Enter Attribute Here (e.g.: Size)：Enter Value Here (e.g.: 12 Inches)
- Transport Package：Pallet Loading
- Specification：WH06;WH08;WH10;WH12;WH14;WH16;WH18;WH20;WH25
- Trademark：Hardlift
- Origin：China
Base Info
- Model NO.：WH06;WH08;WH10;WH12;WH14;WH16;WH18;WH20;WH25
- HS Code：87168000
- Production Capacity：12000PCS,Year
Description
Basic Info.
Model NO. WH06;WH08;WH10;WH12;WH14;WH16;WH18;WH20;WH25 HS Code 87168000 Production Capacity 12000PCS/YearProduct Description

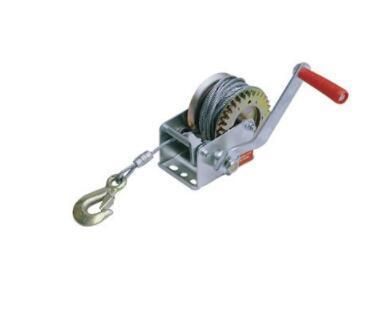

Hand Winch (WH series)
* Suitable for many lifting and lowering applications such as raising boats on davits or raising and lowering saiboat keels.
* Self-locking brake winches provide additional safety and control for many lifting and pulling jobs.
* The automatic friction brake supplies constant, positive holding action and prevents runaway load.
* Brake is fully automatic and the load remains in position anytime the handle is released.
| Model | W. L. L (ibs) | Cable | Gear Ratio | Net Weight (kg) |
| WH06 | 600 | 4.2mm x 10m | 3: 1 | 17 |
| WH08 | 800 | 4.5mm x 10m | 3: 1 | 17 |
| WH10 | 1000 | 4.5m x 10m | 3.4: 1 | 19 |
| WH12 | 1200 | 4.8mm x 10m | 3.4: 1 | 19 |
| WH14 | 1400 | 4.8mm x 10m | 3.4: 1 | 22 |
| WH16 | 1600 | 5.0mm x 10m | 4: 1 | 17 |
| WH18 | 1800 | 5.1mm x 10m | 4: 1/8: 1 | 20 |
| WH20 | 2000 | 5.1mm x 10m | 4: 1/8: 1 | 21 |
| WH25 | 2500 | 5.6mm x 10m | 4: 1/8: 1 | 23 |
