• Model NO.：Universal 63
• Application：Pipe Tool

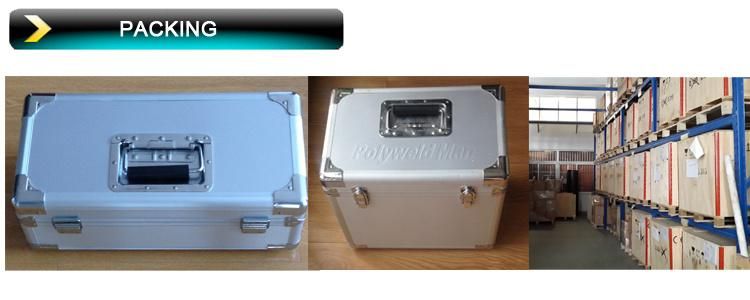

• Transport Package：Cartons
• Specification：20-63mm
• Trademark：Ritmo
• Origin：China (Mainland)
• HS Code：84779000
• Production Capacity：200, 000 PCS, Year

Basic Info.

Model NO. Universal 63 Application Pipe Tool Transport Package Cartons Specification 20-63mm Trademark Ritmo Origin China (Mainland) HS Code 84779000 Production Capacity 200, 000 PCS/ Year

Product Description

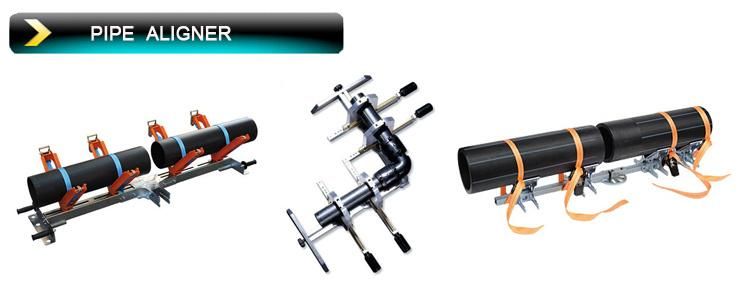

 Pe pipe alignment tools


This professional tool is essential to hold pipes still and aligned during electrofuion. The UNIVERSAL ALIGNER 63 is made almost entirely in a special Aluminium alloy and features central joint for the fixed positions at  45° -90°, four self-centring clamps that require no adapters. The possibility to remove one part of the axis that carries the clamps and one clamp it self, allows the use of tapping tees during the fusion.



Model	Working range	Dimension(mm)	Weight
Universal 63	20-63mm S5-SDR11	1)Aligner straight: 600*160*116mm 2)Transport bag: 440x190x140mm	Aligner:3.4Kg Transport bag:0.5Kg Standrad composition:3.9Kg
Universal160 Light	63-160mm	Aligner straight: 980*430*260mm	Aligner without 3rd axle:9Kg Bag or wooden transport case: 1,5Kg or 14Kg
Aligner Eco 63-180	63-180mm	2axes:915*140*130mm 3axes:915*575*130mm	2axes: 7.5Kg 3axes: 10Kg
ALIGNER 125-500	125-500mm	2axes:1815*610*410mm 3axes:1815*1230*410mm	2axes: 38Kg 3axes: 52Kg

CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.We have exported our products more than 50 countries and area.
Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp Our aim is to provide customer with the best solutions of plastic pipe connection.


Thank you for your looking through.
