High qualified for versatile applications CARBIDE BURRS
Solid Metalworking LNC. Limited- Type：Carbide Burrs
- Material：Carbide
- Usage：Metal Drilling
- Shape：Cylindrical
- Processing Methods：Milling File
- Tooth Pattern：Bidentate Pattern
Base Info
- Model NO.：SA~SN
- Section Shape：Flat
- Color：Unicolor
- Customized：Non-Customized
- Condition：New
- Code：SA~Sn
- Cut：Single or Double
- Shank：1,4"
- Coating：PVD
- Transport Package：Plastic Box
- Specification：ISO
- Trademark：AT CARBIDE
- Origin：Chengdu, China
- HS Code：82080100
- Production Capacity：50, 000 PCS,Month
Description
1. Full line for a wide range of applications
2. Ferrous and nonferrous configurations for excellent finishes and efficient stock shapes.
3. Thirteen head shapes
4. A wide range of fluting styles
5. Extra-long shanks available
6. Miniature burs
7. Automated temperature-controlled brazing
8. Special configurations available to meet specific application requirements
9. Machine-ground cutting flutes
10. Tool-to Tool consistency2 Cylindrical Shape-End Cut(type SB); 3 Cylindrical Shape-Ball(type SC); 4 Spherical Shape(type SD); 5 Oval(Egg) Shape(type E); 6 Tree Shaps-Radius(typeSF); 7 Tree Shap-Pointed(type SG); 8 Flame Shape(type SH); 9 60 degree Cone Shape(type SJ); 10 90 degree Cone Shape(type SK); 11 Taper Shape-Radius(type SL); 12 Pointed Cone Shape(type SM); 13 Inverted Cone Shape(type SN).
These different shaped burs will get into many a nook and cranny and produce some interesting profiles.
Use a ball or spherical shaped carbide burr to create concave cuts in your material or to shape and hollow out an area. Small carbide ball burrs from as tiny as 0.5mm in diameter are ideal for intricate carving projects. Many wood carvers, stone carvers and metal engravers use these carbide carving burrs in a hobby drill, micro motor or a high speed handpiece. As we mentioned before, make sure to use a handpiece that runs true i.e with no wobble.
Use inverted cone shaped tungsten carbide burrs for making v-cuts and rear side chamfering.
Good for rounded edges and surface finishing in difficult to reach areas or tight and narrow angles and contours. The round nose or ball nose cone are often referred to as a taper shape.
Choose from an end cut cylinder (with a cutting edge on the end) for contour finishing. Cylinder without end cut (flat on the end and no cutting edge) for contour finishing and right angled corners or a round nose or ball nose shape which is a cylinder shaped carbide burr but with a rounded head.
SEE OUR COMPLETE RANGE OF CARBIDE CYLINDER BURRS
Oval Burrs
Choose from 60 degree or 90 degree angle countersink burs, sometimes referred to carbide cone burrs. These are ideal for beveling, counterboring, chamfering and for getting into acute angled areas of your work.
SEE OUR COMPLETE RANGE OF CARBIDE COUNTERSINK BURRS
If you're not sure what shape burryou want, or you would like a variety, why not try a set of 10 with different shapes in.
2. Ferrous and nonferrous configurations for excellent finishes and efficient stock shapes.
3. Thirteen head shapes
4. A wide range of fluting styles
5. Extra-long shanks available
6. Miniature burs
7. Automated temperature-controlled brazing
8. Special configurations available to meet specific application requirements
9. Machine-ground cutting flutes
10. Tool-to Tool consistency
The Various Shapes of Carbide Burrs and How To Use Them
Making a decision on what shape to use will depend on the profile or cut you are looking to achieve.These different shaped burs will get into many a nook and cranny and produce some interesting profiles.

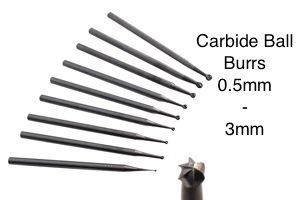

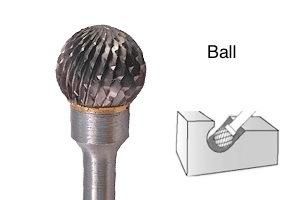

Carbide Ball Burrs
Use a ball or spherical shaped carbide burr to create concave cuts in your material or to shape and hollow out an area. Small carbide ball burrs from as tiny as 0.5mm in diameter are ideal for intricate carving projects. Many wood carvers, stone carvers and metal engravers use these carbide carving burrs in a hobby drill, micro motor or a high speed handpiece. As we mentioned before, make sure to use a handpiece that runs true i.e with no wobble.
Carbide Tree Burrs

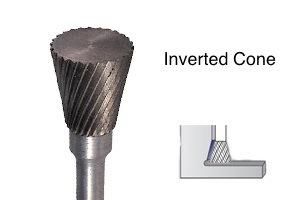

Use for rounding off edges and making concave cuts. Use the pointed end for cutting in hard to reach areas and acute angled contours.Carbide Inverted Cone Burrs
Use inverted cone shaped tungsten carbide burrs for making v-cuts and rear side chamfering.

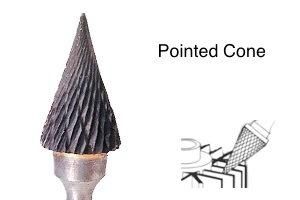

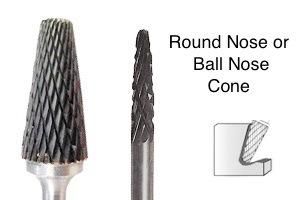

Carbide Pointed Cone & Carbide Round Nose or Ball Nose Burrs
Good for rounded edges and surface finishing in difficult to reach areas or tight and narrow angles and contours. The round nose or ball nose cone are often referred to as a taper shape.

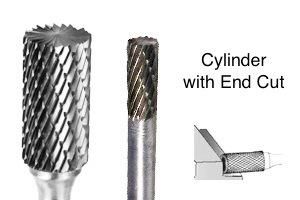

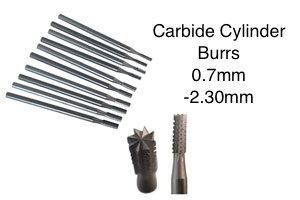

Cylinder Burrs. Round Nose/Ball nose/End Cut
Choose from an end cut cylinder (with a cutting edge on the end) for contour finishing. Cylinder without end cut (flat on the end and no cutting edge) for contour finishing and right angled corners or a round nose or ball nose shape which is a cylinder shaped carbide burr but with a rounded head.
SEE OUR COMPLETE RANGE OF CARBIDE CYLINDER BURRS

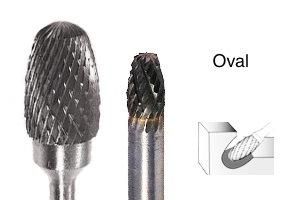

Oval Burrs

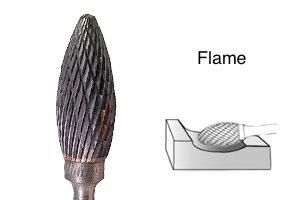

Flame Burrs
Oblate Spheroid
A wheel shaped burr with a smooth top and fluted sides. Great for channel work and shaping.Countersink Burrs

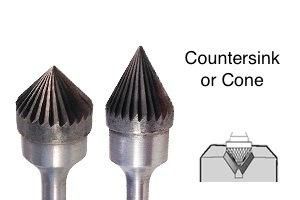

Choose from 60 degree or 90 degree angle countersink burs, sometimes referred to carbide cone burrs. These are ideal for beveling, counterboring, chamfering and for getting into acute angled areas of your work.
SEE OUR COMPLETE RANGE OF CARBIDE COUNTERSINK BURRS
If you're not sure what shape burryou want, or you would like a variety, why not try a set of 10 with different shapes in.
What Are The Advantages of Tungsten Carbide Burrs?
- Long life, High stock removal
- Use for long production runs
- Ideal for using on many hard and tough materials
- Ideal for Deburring, finishing, carving, shaping and smoothing welds, moulds, dies and forgings
- Easy to master, simple to use, safe and reliable.
- Good processing quality and high finish. It can process various high-precision shape mold cavities
- Long service life. The durability is ten times higher than that of high-speed steel tools, and more than 200 times higher than that of small grinding wheels.
- The comprehensive processing cost can be reduced by dozens of times.
