• Application：Pipe Tool
• Transport Package：Cartons
• Specification：63-160mm
• Trademark：Ritmo
• Origin：China (Mainland)
• HS Code：84779000
• Production Capacity：200, 000 PCS, Year

Basic Info.

Application Pipe Tool Transport Package Cartons Specification 63-160mm Trademark Ritmo Origin China (Mainland) HS Code 84779000 Production Capacity 200, 000 PCS/ Year

Product Description

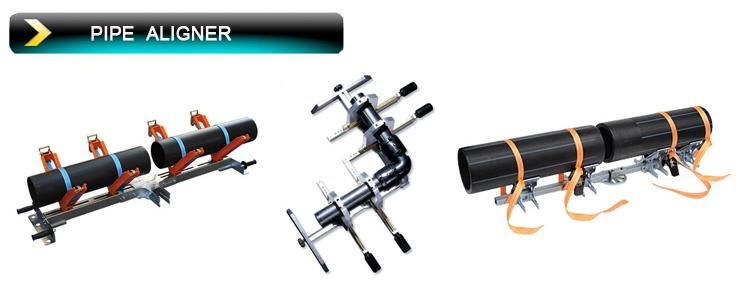

pe pipe flange aligner (universal 160 light)


This professional tool is essential to hold pipes still and aligned during electrofuion(from 63-160mm). The UNIVERSAL ALIGNER160 Light  is made almost entirely in a special Aluminium alloy and features a central joint for the fixed positions at  45° -90°, four self-centring clamps that require no adapters. and on request an additional axle complete with two clamps for welding the tees. Its special quick release clamps grants a rapid extraction of the pipe once it has been welded.

STANDARD COMPOSITION
Aligner complete with four clamps, transport bag or wooden transport case
ON REQUEST(ACCESSORIES)
A 3rd axle complete with two clamps(for welding "Tees")


Model	Working range	Dimension(mm)	Weight
Universal 63	20-63mm S5-SDR11	1)Aligner straight: 600*160*116mm 2)Transport bag: 440x190x140mm	Aligner:3.4Kg Transport bag:0.5Kg Standrad composition:3.9Kg
Universal160 Light	63-160mm	Aligner straight: 980*430*260mm	Aligner without 3rd axle:9Kg Bag or wooden transport case: 1,5Kg or 14Kg
Aligner Eco 63-180	63-180mm	2axes:915*140*130mm 3axes:915*575*130mm	2axes: 7.5Kg 3axes: 10Kg
ALIGNER 125-500	125-500mm	2axes:1815*610*410mm 3axes:1815*1230*410mm	2axes: 38Kg 3axes: 52Kg

CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.We have exported our products more than 50 countries and area.
Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp Our aim is to provide customer with the best solutions of plastic pipe connection.
