• Model NO.：SOV-FDB Series
• Feature：Ordinary
• Working Mode：Manual
• Folded：Unfolded
• Handle Color：Colorful
• Application Age：Adult
• Production Name：Mechanical Type Bolt Tools Torque Multiplier
• Bolt Size：20-30 to 72-95 mm
• Nut Size：30-46 to 105-135 mm
• Input Square：1,2 Inch
• Output Square：1 to 2 1,2 Inch
• Max. Torque Value：1500-20000 Nm
• Transmission Ratio：4.8 to 96.8
• Precision of Transmission Ratio：+-5%
• OEM：Yes
• Transport Package：Wooden Case
• Specification：CE, ISO
• Trademark：SOV
• Origin：China
• HS Code：8205900000
• Production Capacity：500sets,Month

Basic Info.

Model NO. SOV-FDB Series Feature Ordinary Working Mode Manual Folded Unfolded Handle Color Colorful Application Age Adult Production Name Mechanical Type Bolt Tools Torque Multiplier Bolt Size 20-30 to 72-95 mm Nut Size 30-46 to 105-135 mm Input Square 1/2 Inch Output Square 1 to 2 1/2 Inch Max. Torque Value 1500-20000 Nm Transmission Ratio 4.8 to 96.8 Precision of Transmission Ratio +-5% OEM Yes Transport Package Wooden Case Specification CE, ISO Trademark SOV Origin China HS Code 8205900000 Production Capacity 500sets/Month

Product Description

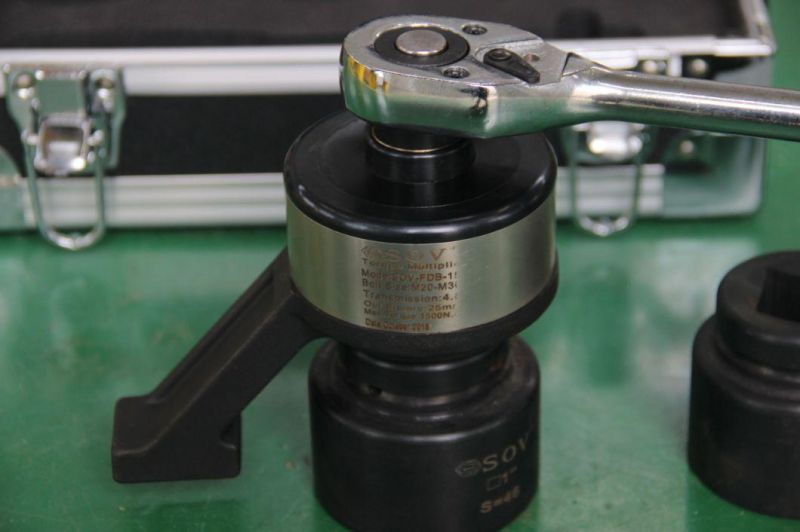

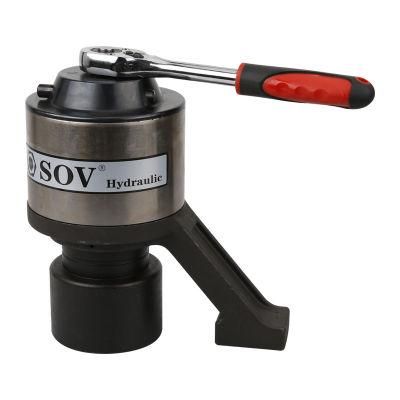

                                                        Mechanical Type Bolt Tools Torque Multiplier

Production Description

1. The product operates easily and can save the manpower.
2. People even can operate it with small torque.
3. Apply to small size and poor working environment.

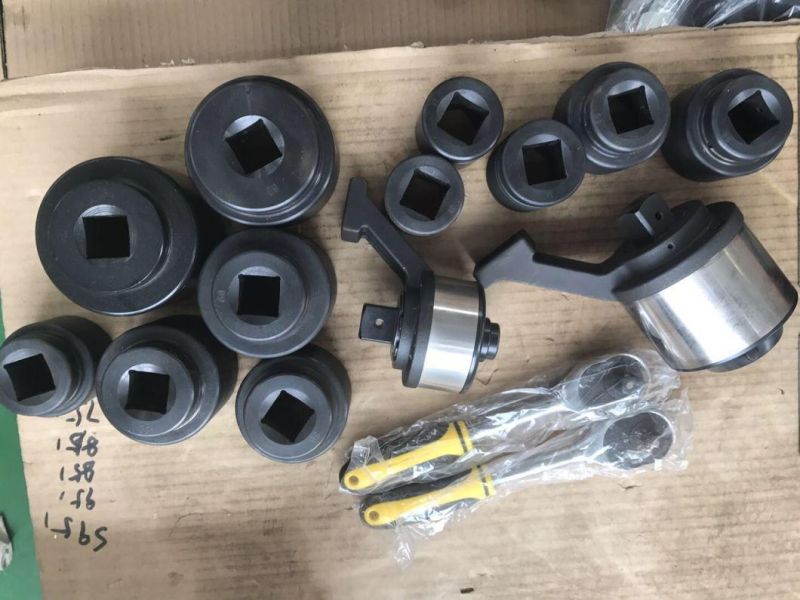

4. Each set with suitable sockets.
5. Used in the difficult situation and places that big torque wrench is unable to use.
6. Sturdy structure, long service life, transmission ratio precision: +-5%

Parameter

Model	SOV-FDB-15	SOV-FDB-20	SOV-FDB-35	SOV-FDB-55	SOV-FDB-75	SOV-FDB-100	SOV-FDB-150	SOV-FDB-200
Max. Torque(Nm)	1500	2000	3500	5500	7500	10000	15000	20000
Transmission ratio	4.8	14	17	19	22	61	74.8	96.8
Input Square(inch)	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2
Output Square(inch)	1	1	1	1 1/2	1 1/2	1 1/2	2 1/2	2 1/2
Bolt Size(mm)	M20-30	M22-36	M30-45	M36-52	M42-60	M52-68	M60-76	M72-80
Nut Size(mm)	S30-46	S32-55	S46-70	S55-80	S65-90	S80-105	S90-115	S105-135

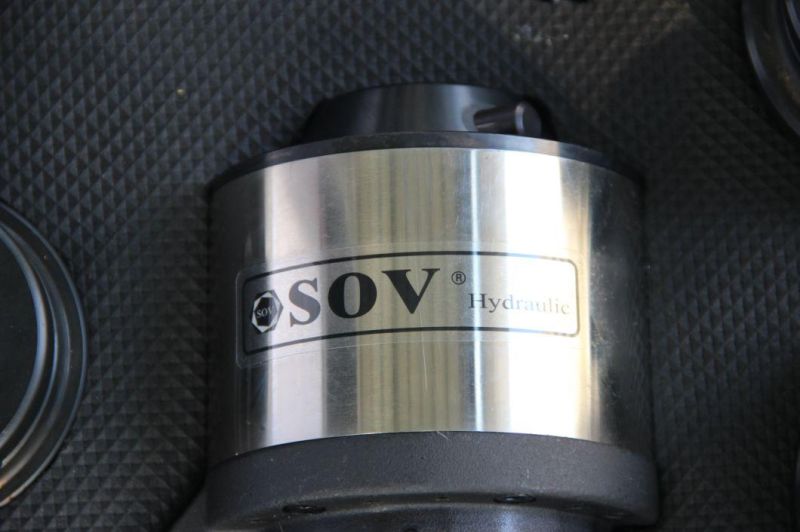

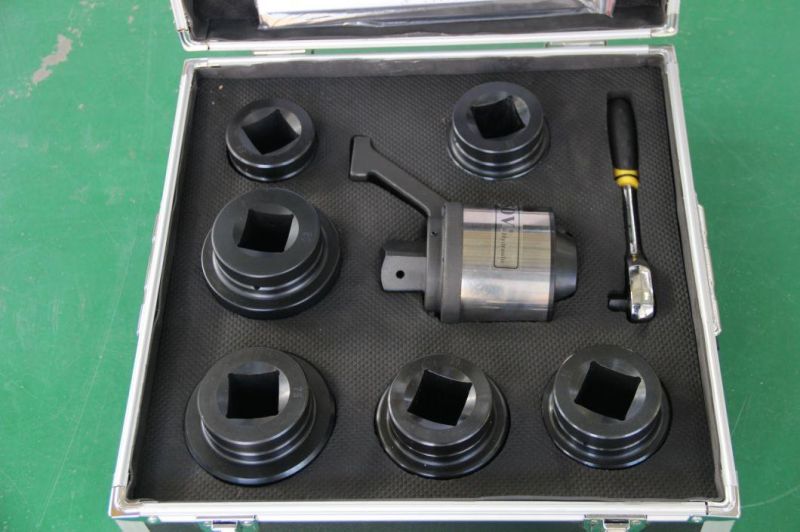

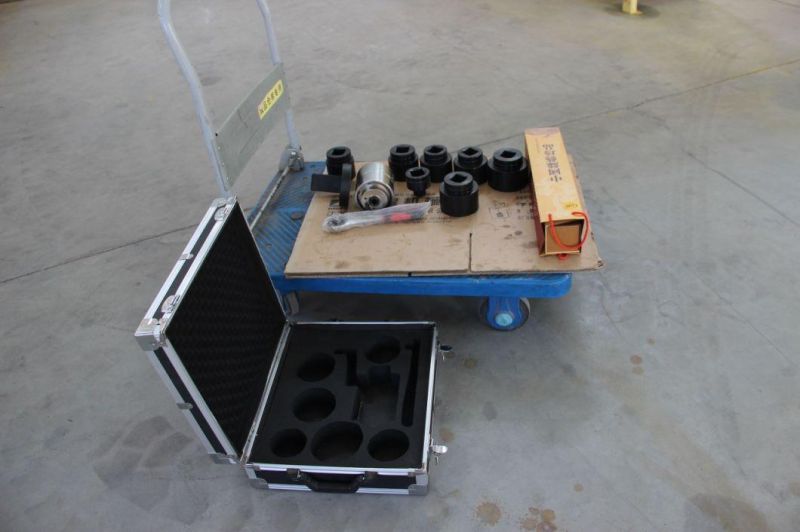

Photos

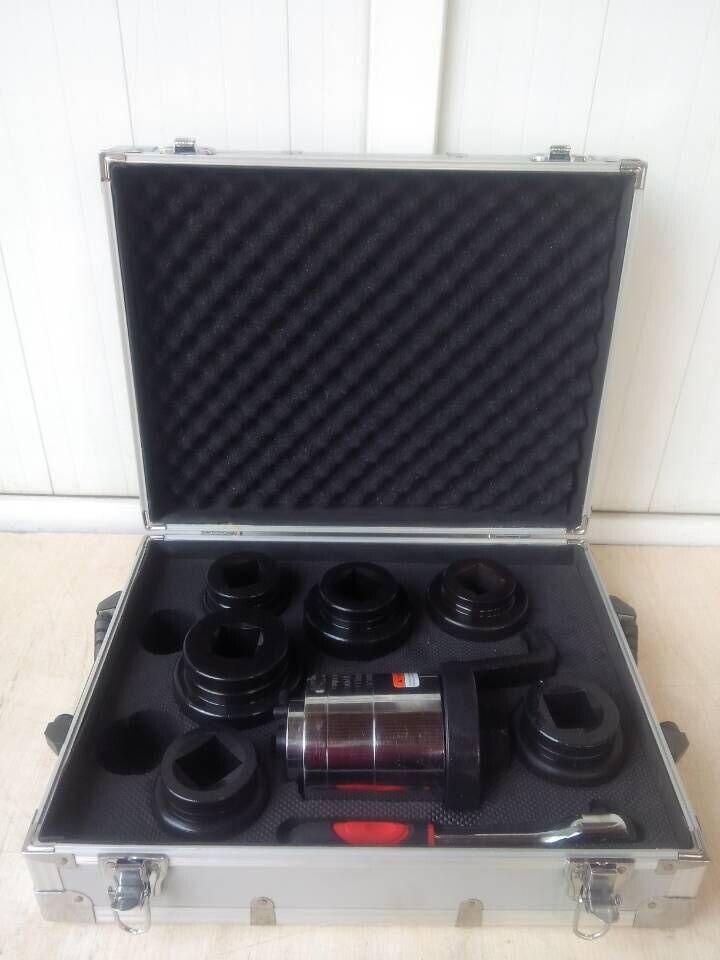

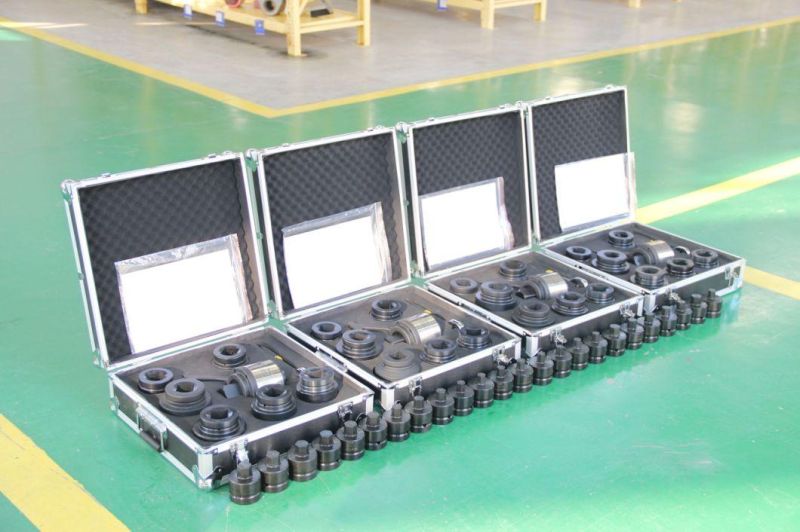

Packing(outer packing)

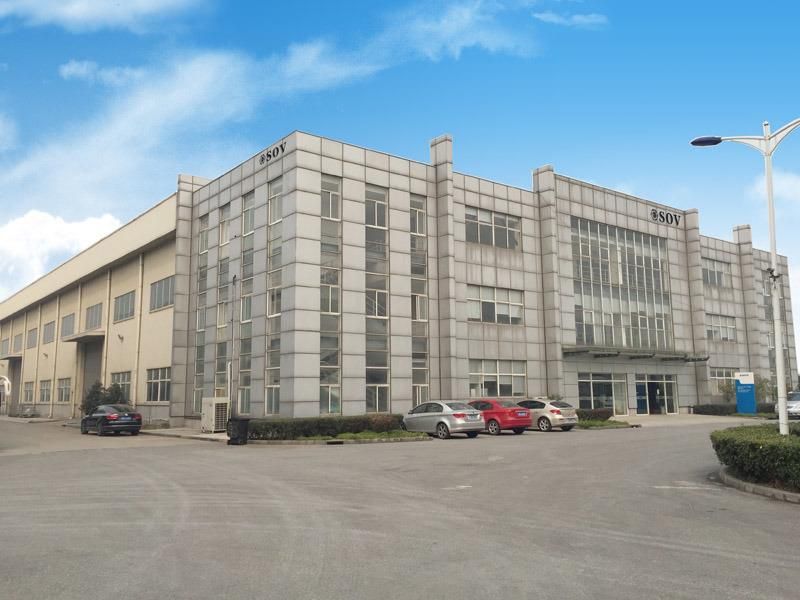

Company Information


SOV Hydraulic Technology (Shanghai) Co., Ltd is the foremost hydraulic tools manufacturer and has one of the largest hydraulic tools factories in china. Since 1995, we've successfully transferred from OEM factory for ENERPAC & TITAN to creating our own brand SOV with products and factory certified by CE and ISO 9001. SOV hydraulic tools have been exported to more than 40 countries in the global world market won by reliable quality, excellent after-sales service, competitive price and professional marketing service.
SOV has always been focusing on providing customers with the most stable and safest hydraulic tools and helping customers to achieve the maximum efficiency with our suggested hydraulic solution. SOV earned good reputation from Chinese local market and international market for the following SOV main product lines,

Hydraulic Cylinder (5ton-3000ton). --Single Acting--Double Acting--Hollow Plunger.
PLC Based Synchronous Lift Systems( 4-72 lift pointes for house translation or leveling, bridge supporting and tank welding supporting, etc.)
Hydraulic/ Electric /Pneumatic Torque Wrench (100Nm-160000Nm).
Hydraulic Bolt Tensioner (M24-M600).
Hydraulic Nut.
Hydraulic puller (5-1000 ton).
Hydraulic pump. --Hand and Electric Type (Max Up To 4000Bar).
Hydraulic Hose, Quick Coupling, Manifold and other hydraulic tools accessories.
