• Model NO.：TAO78
• Production Capacity：1000000,Mouth

Basic Info.

Model NO. TAO78 Production Capacity 1000000/Mouth

Product Description

-------Welcome------
Qingdao MAXX Auto Parts Co Ltd
Specifications:

Manual type, suitable for the occasions where it requests for high torque but power supply or space is limited.

Sophisticated planetary gear system for torque multplying, accuracy ±5%

Equipped with anti-returning device, more convenience and safe

High torque/weight ratio, fulfill the locking / unlocking job easily with the hand wrench

Easily switch from clockwise to anti-clockwise direction by the reversing lever and buttons.

After-sales service:  1 year guarantee period, life-long maintnance.

Supply scope: 1 pcs manual torque multiplier,1 pcs reaction arm, 1 set operating instructions

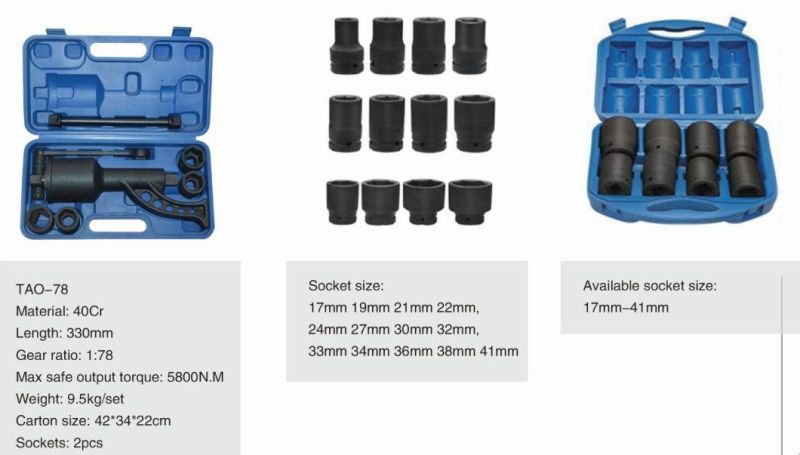

Material: 40Cr
Length: 330mm
Gear ratio: 1:78
Max safe output torque: 5800N.M
Weight: 9.5kg/set
Carton size: 42*34*22cm
Sockets: 4pcs

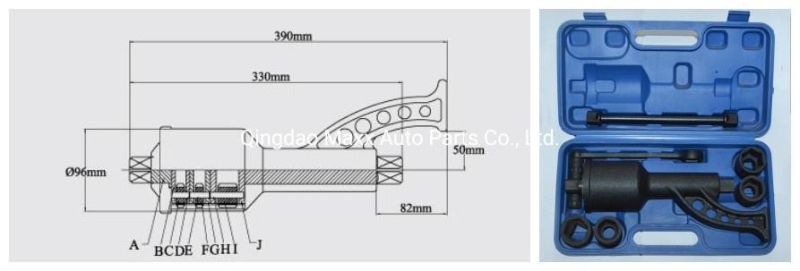

Code name	A	B	C	D	E	F	G	H	I	J
Name	Main imput shaft	2-stage  imput	H17 Gear	Pin	Pin	H17 Gear	3-stage imput	Pin	H25 Gear	Output shaft
Quantity	1	1	4	4	4	4	1	4	4	1
Gear Modulus	3.0	3.0	3.0			3.0	3.0		3.0

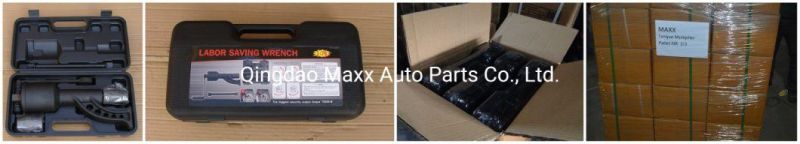

Package: Carton-Pallet.
3 set/carton. 17 cartons/pallets.

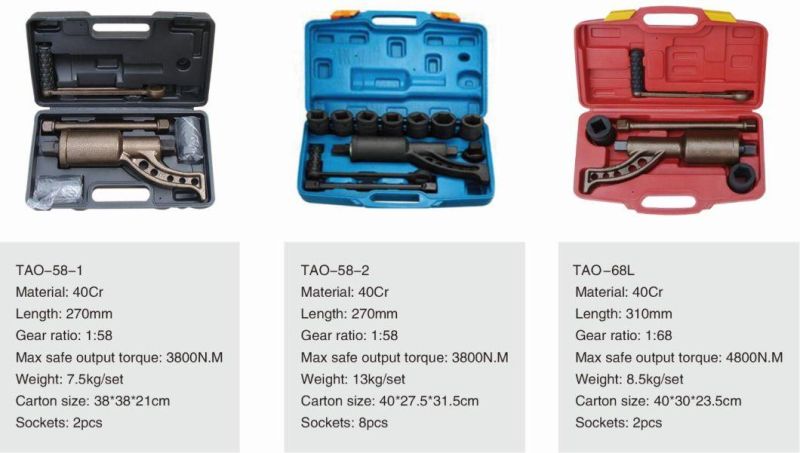

More models is available.
