• Model NO.：2-1,2" inch DN 65 mm
• Mode Diameter：DN 80, DN100 DN 125, DN 150, DN 200
• Length for Each Piece：3000mm & 6000mm
• Suitable：Industrial Compressed Air Pipe
• Material Environmental：100% Recyclable
• Connection Type：Socket
• Tube Color Selection：Blue, Yellow, Gray , Customizing
• Leakage：No Leakage
• Cross-Section Shape：Round
• Advantages：Seamless Extruded Aluminum Tube
• Working Pressure：4bar, 5bar, 7bar, 8bar, 10bar, 12bar, 16bar
• Applicable Temperature：-30~+80c
• Application 1：Compressed Air Gas, Vacuum and Nitrogen Fluid
• Connection Part：Reducing Pipe to Pipe Connector
• Good for User：No Threading, Welding, or Brazing Pipe
• Usage：Cutting for Aluminum Alloy Pipe
• Transport Package：Carton or Wooden Package
• Specification：6000* DN80*DN80mm
• Trademark：KEEPWIN
• Origin：China
• HS Code：76090000
• Production Capacity：20000sets,Month

MAX PRESSURE16BARWORKING TEMPERATURE RANGE-29˚C~+80˚CMain MaterialDuctility aluminum alloy 6063(GB/T 4437.1-2015)Specific Weight2.70 Kg/dm3External Coating / Internal CoatingEpoxy Polyester Powder / Chemically Anodized TreatedFIRE RESISTANCEFireproof and Suitable for Outdoor ApplicationsCOMPATIBLE FLUIDSCompressed air, vacuum, inert gas(AZOTO, ARGON, NITROGEN)

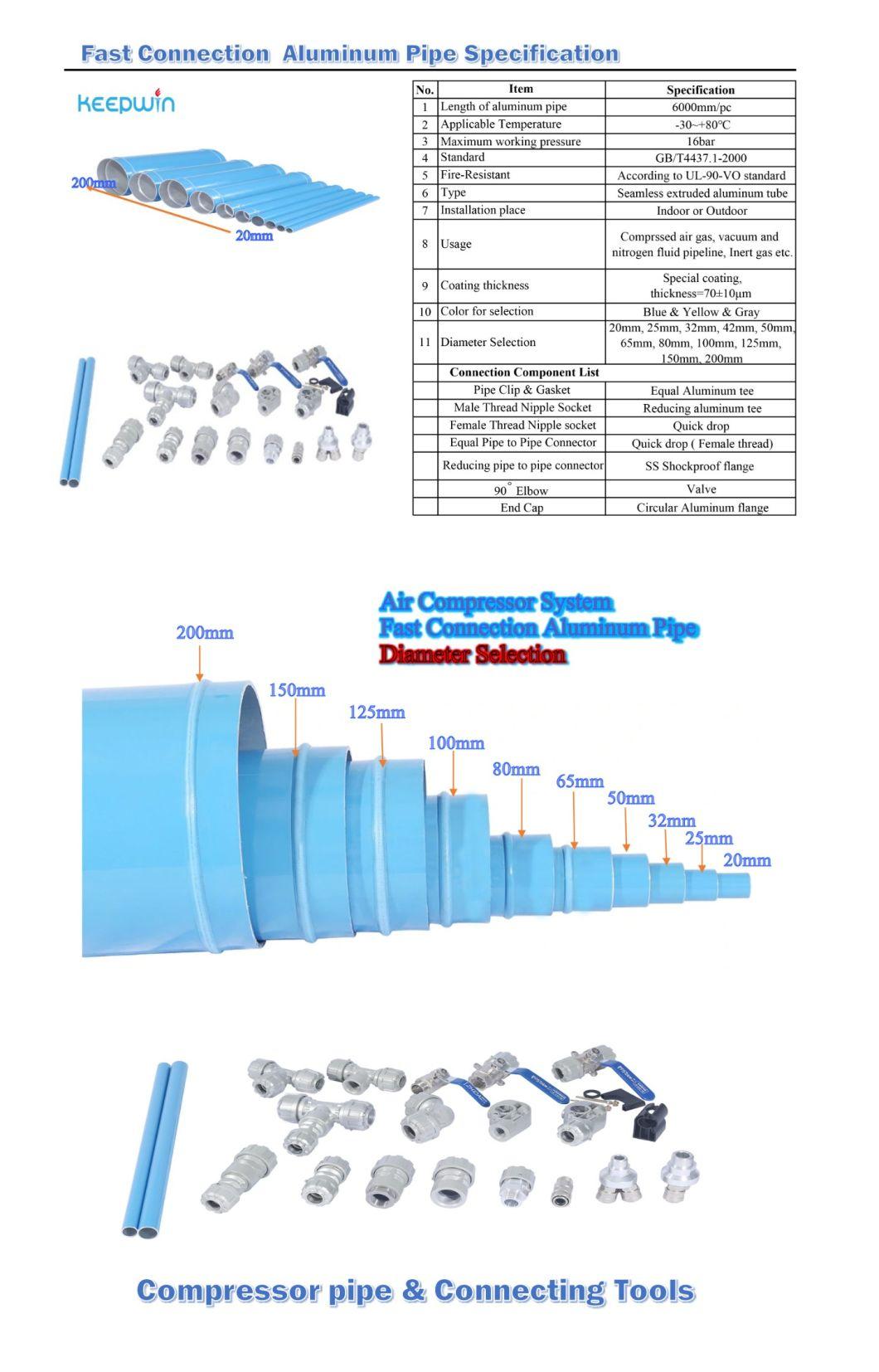

Aluminum Alloy Pipe's Technical ParametersBlue
Yellow
Gray

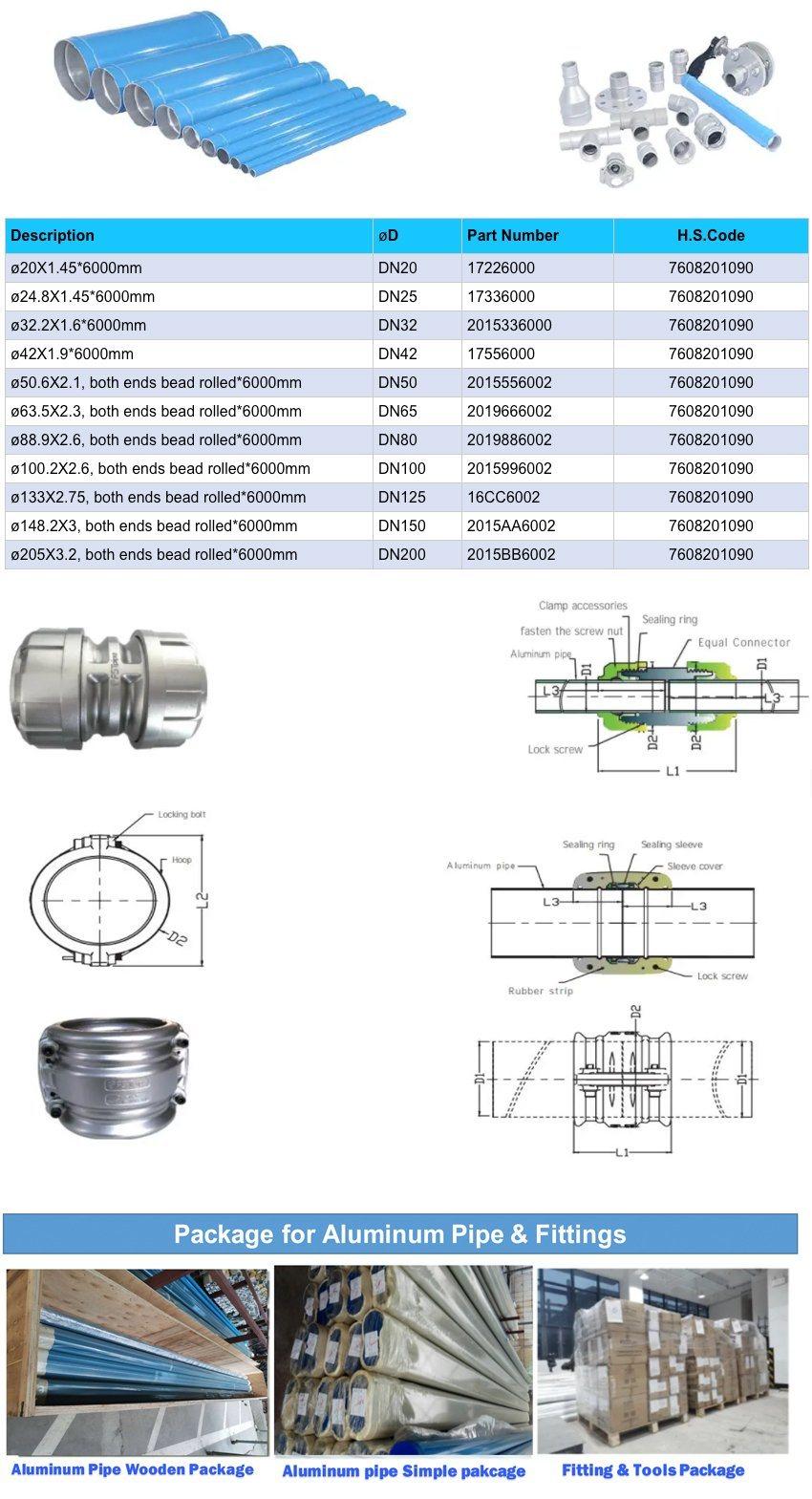

Aluminum Pipe2017226000ø20X1.45*6000mm22517336000ø24.8X1.45*6000mm3322015336000ø32.2X1.6*6000mm44217556000ø42X1.9*6000mm5502015556002ø50.6X2.1, both ends Bead rolled*6000mm6652019666002ø63.5X2.3, both ends Bead rolled*6000mm7802019886002ø88.9X2.6, both ends Bead rolled*6000mm81002015996002ø100.2X2.6, both ends Bead rolled*6000mm912516CC6002ø133X2.75, both ends Bead rolled*6000mm101502015AA6002ø148.2X3, both ends Bead rolled*6000mm112002015BB6002ø205X3.2, both ends Bead rolled*6000mmCost Saving Installation

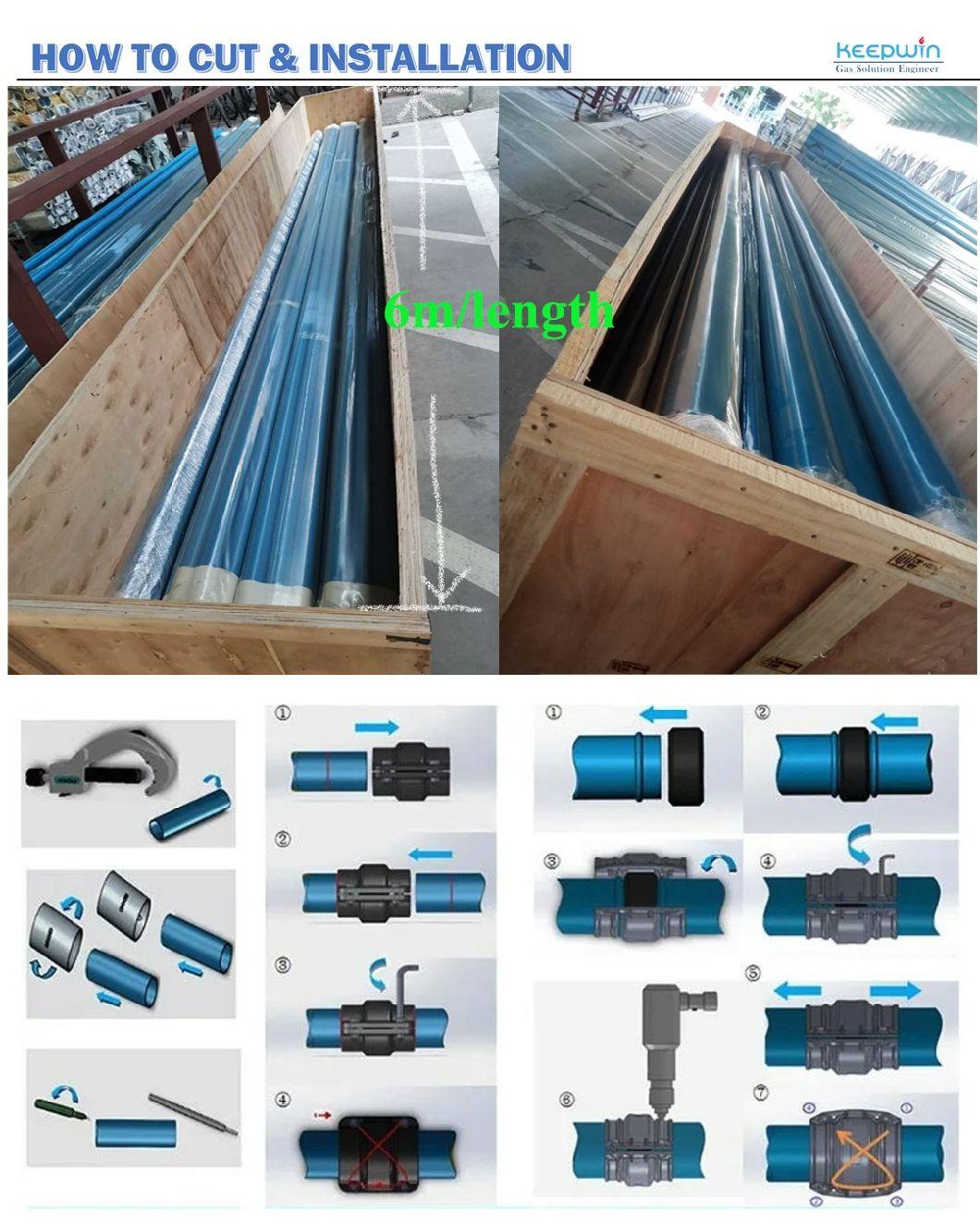

The Fast Connection Aluminium Pipe System segmented design also has the advantage of quick installation.
Installation is reduced by up to 50% when compared with traditional airline systems, leading to a high-cost saving in labor. Being a mechanical system, it also has the advantage that each and every joint is to the same quality of sealing as promised by the manufacturer, and is not reliant on the physical finesse that can deteriorate as a project nears completion.
Cost Saving Quality
Fast Connection Aluminum Alloy Piping Systems use no plastic, period. Made with 100% metal, quick-fit and elevation are the most cost-effective system available. Non-corrosive push to connect or grooved connect systems are fully tested to ANSI standards and are the most advanced systems available. When Compared to your standard piping systems, Fast Connection Aluminum Alloy Piping are a leak-free system that includes a warranty to back it.

Aluminum Piping: Fast Connection Aluminum Compressed Air Piping System
Fast Connection Aluminum Pipe is a modular aluminum pipe for compressed air installations, offering both lower installation costs and lower long-term operating costs. From small shops to large industrial systems, Quick-Pipe is great for all facilities and is available in sizes up to 6" pipe diameter.

Airline pipe with the optimum flow and air quality

Quick-Pipe smooth calibrated aluminum construction has a low friction coefficient, providing the best possible laminar flow. Full bore fittings further minimize pressure drop for optimum flow and energy efficiency. Leak-free connectors prevent air loss and wasted energy.

Fast Connection Aluminum Pipe is ideal for installations requiring the highest quality air. Aluminum material will not rust or corrode. Further, it has no rough surfaces or interior restrictions that accumulate contaminants. The smooth interior with full bore design allows them to flow to your dryers and filters for efficient removal.







Female Threaded Nipple Socket's Technical Parameters

Female Threaded Nipple Socket	20×1/2"	16201100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	20×3/4"	16211100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	25×1/2"	16301100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	25×3/4"	16311100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	25×1"	16321100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	32×3/4"	16411100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	32×1"	16421100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	32×1"1/4"	16431100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	42×1"	16521100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	42×1"1/4"	16531100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	42×1"1/2"	16541100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	42×2"	16551100	Aluminum Alloy, one side Push in fit, the other side female threaded	76090000
Female Threaded Nipple Socket	50×1"1/2"	2019541100	Aluminum Alloy, one side Push in fit, the other side need to match 1 set of 50mm Clamp	76090000
Female Threaded Nipple Socket	50×2"	2019551100	Aluminum Alloy, one side Push in fit, the other side need to match 1 set of 50mm Clamp	76090000
Female Threaded Nipple Socket	65×2"1/2"	2019661100	Aluminum Alloy, one side Push in fit, the other side need to match 1 set of 65mm Clamp	76090000
Female Threaded Nipple Socket	80×3"	2019881100	Aluminum Alloy, one side Push in fit, the other side need to match 1 set of 80mm Clamp	76090000
Female Threaded Nipple Socket	100×3"	2015981100	Aluminum Alloy, one side female threaded, the other side need to match 1 set of 100mm Clamp	76090000
Female Threaded Nipple Socket	125×4"	F16C91100	Aluminum Alloy, square female threaded Nipple Socket	76090000
Female Threaded Nipple Socket	150×3"	16A81100	Aluminum Alloy, one side female threaded, the other side need to match 1 set of 150mm Clamp	76090000
Female Threaded Nipple Socket	150×4"	16A91100	Aluminum Alloy, one side female threaded, the other side need to match 1 set of 150mm Clamp	76090000
Female Threaded Nipple Socket	200×3"	16B81100	200mm Clamp	76090000
Female Threaded Nipple Socket	200×4"	16B91100	Aluminum Alloy, one side female threaded, the other side need to match 1 set of 200mm Clamp	76090000

90° Elbow's Technical Parameters

90° Elbow	20	16220300	Push in fit, Aluminum Alloy	76090000
90° Elbow	25	16330300	Push in fit, Aluminum Alloy	76090000
90° Elbow	32	16440300	Push in fit, Aluminum Alloy	76090000
90° Elbow	42	16550300	Push in fit, Aluminum Alloy	76090000
90° Elbow	50	2019550300	Aluminum Alloy, need to match 2 sets of 50mm Clamp	76090000
90° Elbow	65	2019660300	Aluminum Alloy, need to match 2 sets of 65mm Clamp	76090000
90° Elbow	80	2019880300	Aluminum Alloy, need to match 2 sets of 80mm Clamp	76090000
90° Elbow	100	2015990300	Aluminum Alloy, need to match 2 sets of 100mm Clamp	76090000
90° Elbow	125	F16CC0300	Aluminum alloy, suitable for bead rolled pipe	76090000
90° Elbow	150	2015AA0300	Aluminum Alloy, need to match 2 sets of 150mm Clamp	76090000
90° Elbow	200	2015BB0300	Aluminum Alloy, need to match 2 sets of 200mm Clamp	76090000
