• Model NO.：PNW
• HS Code：84286090
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. PNW HS Code 84286090 Production Capacity 1000PCS/Month

Product Description

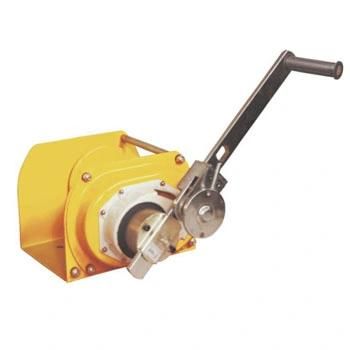

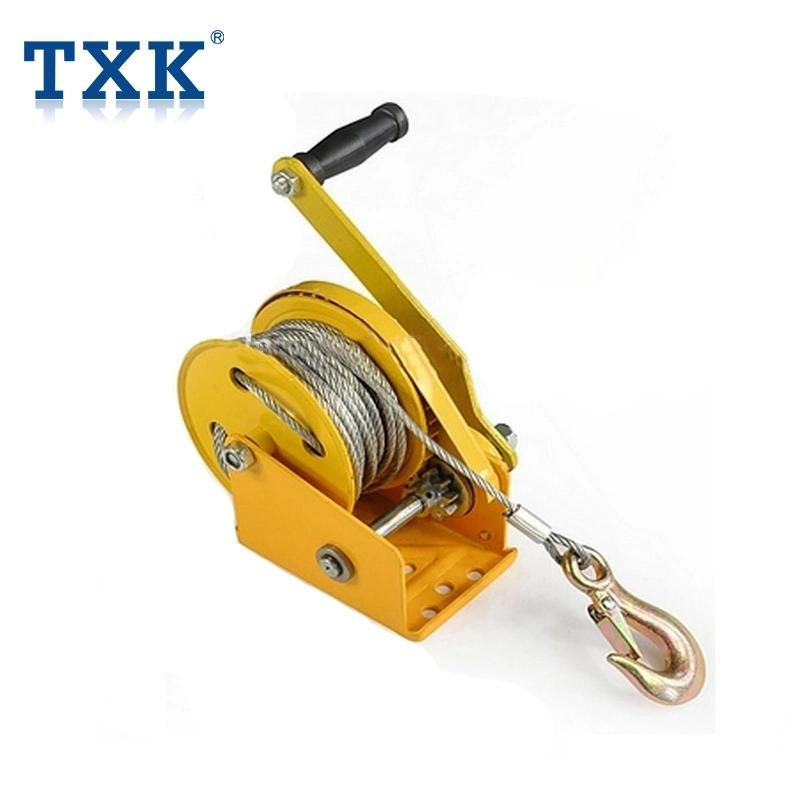

Manual Winch (PNW Series) with CE Certificates





This PNW type Manual Winch is suitable for many lifting and lowering applications, such as raising boats on davits of raising and lowering sailboat keels.
Features
Self-locking brake winches provide additional safety and control for many lifting and pulling jobs.
The automatic friction brake supplies constant, positive holding action and prevents runway load.
Brake is fully automatic and the load remains in position anytime the handle is released.

Manual Winch Drawing:

Code	PNW-100	PNW-300	PNW-500	PNW-1000	PNW-2000	PNW-3000
Wire cable(mm)	5.0	6.3	6.3	8.0	9.0	12.5
Durability on lst layer(kg)	100	300	500	1000	2000	3000
Drum diameter(mm)	48	60.5	60.5	76.3	89.1	101.6
Hand pressure load(kg)	11.5	11.0	12.0	12.0	13.0	18.0
Drum capacity)kg)	30	30	40	40	40	40
Can wind per turn(mm)	166.5	70.8	48.4	21.7	13.6	18.0
Working handle length(mm)	240	350	350	350	350	350
Reduction gear ratio	1:1	2.88:1	4.33:1	12.19:1	22.68:1	32.16:1
Net weight(kg)	6.9	11.6	13.0	18.1	24.0	42.6
Shipping weight(kg)	7.6	12.7	14.3	19.7	25.8	45.3

Company

TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chain hoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than 15 years experience and hard work.

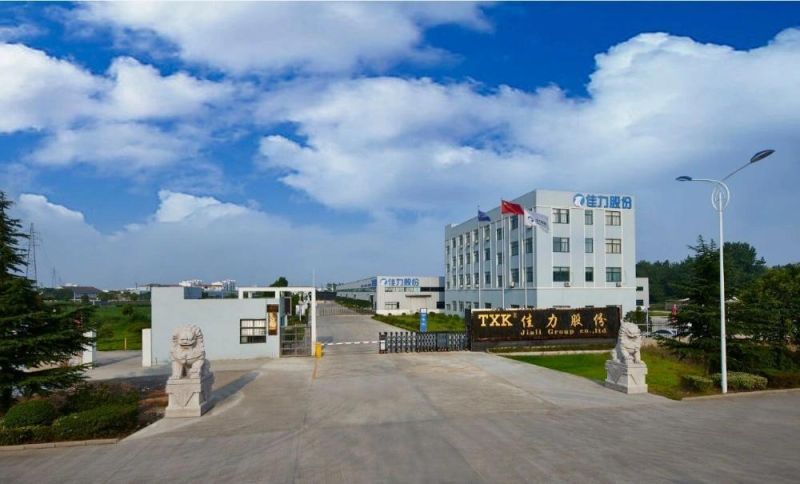

Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world.
Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway, shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.
The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico, Peru, Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and total more than 50 countries and regions.

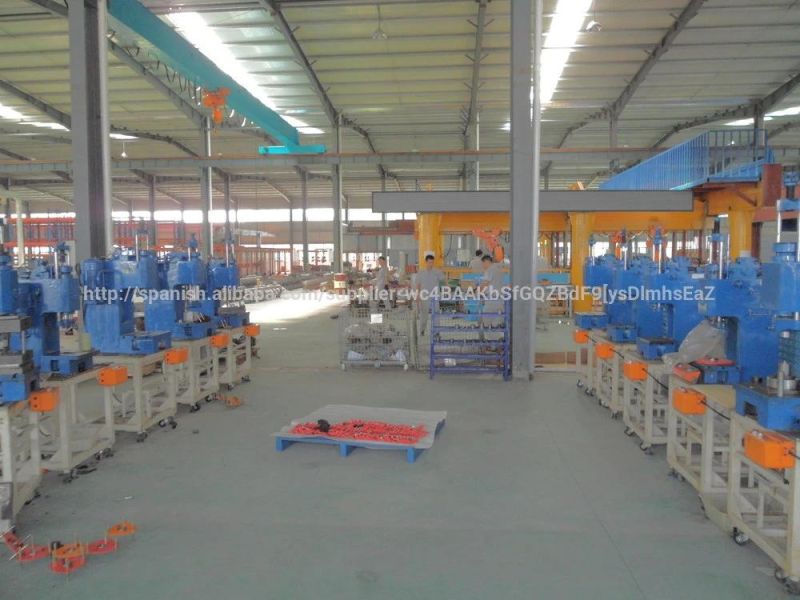

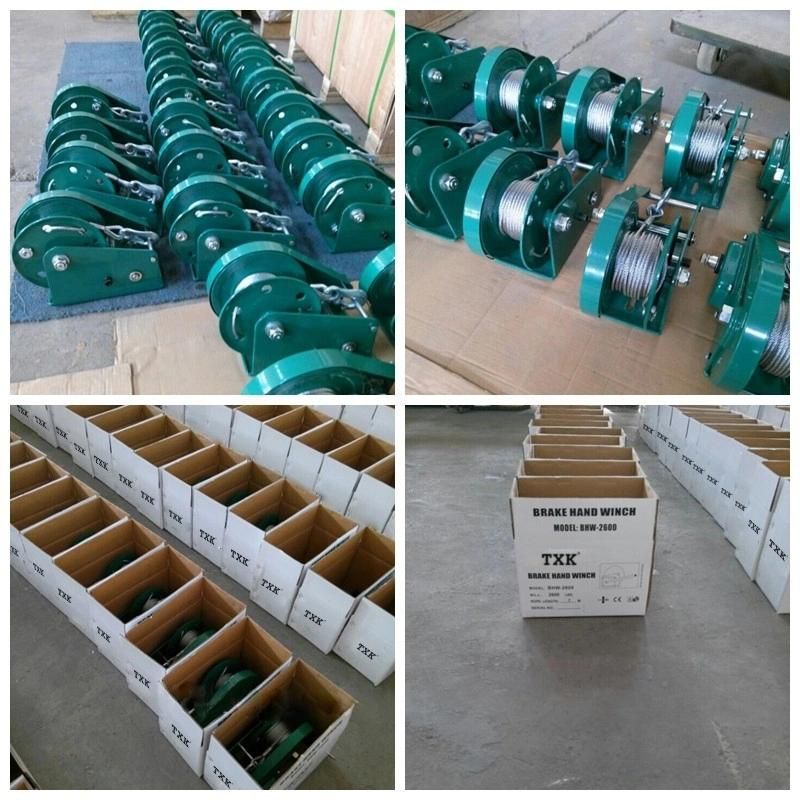

Packing and workshop
