SUS304 Heli Coil Wire Thread Inserts Screw Lock Inserts
Xuzhou Perfect Industry Technology Co., Limited- Type of Tap：Thread Repair Tools
- Material：Stainless Steel
- Application for Machine Tool：Punch
- Application：for Creating New Thread
- Customized：Non-Customized
- Place of Origin：Jiangsu, China (Mainland)
Base Info
- Model NO.：PFT016
- Brand Name：Perfect
- Surface Finish：Silver, Back, Red, Blue, Green, Any Color
- Raw Material：Stainless Steel, Carbon Steel
- Type：Free Running Inserts
- Trademark：Perfect
- Origin：Jiangsu China
- HS Code：8207400000
- Production Capacity：100000 PCS,Per Day
Description
Nominal Thread SizeSize Design-ation"Q"Nominal LengthQutside DiameterNumber of Coils Nominal Length1Dia2DiaMinMax1Dia2DiaM20*1.520CN2030506023.724.2M20*220CN2030506023.724.2M20*2.520CN2030506023.724.2M22*1.522CN223355662626.52M22*222CN2233556626.326.8M22*2.522CN2233556626.326.8M24*1.524CN2436607228.428.92M24*224CN2436607228.629.1M24*324CN2436607228.629.1M27*1.527CN2740.567.58131.4432.14M27*227CN2740.567.58131.9432.56M27*327CN2740.567.58132.232.7M30*1.530CN3045759034.6435.44M30*230CN3045759034.9435.74M30*3.530CN3045759035.235.7M33*233CN3349.582.59938.338.8M33*3.533CN3349.582.59938.338.8M36*236CN36549010842.142.6M36*436CN36549010842.142.6M39*239CN3958.597.511745.145.6M39*339CN39397897.55555.5
Process of installation:

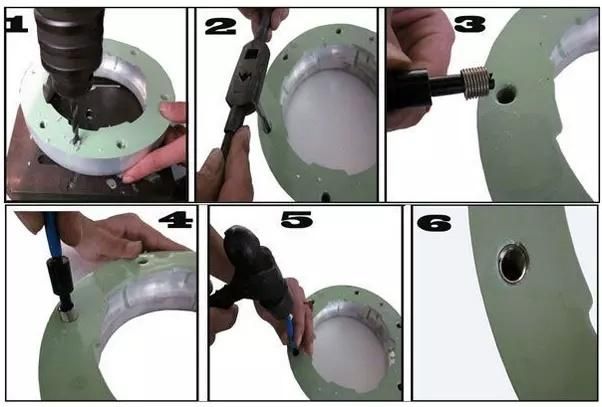

Drilling→Tapping→Installing→Breaking off tang
Tools:
1. Drill: used for drilling the base holes
2. Taps: used for the processing special internal thread of the base holes.
3. Installation tools: put sets into the threaded hole.
4. Break-off tools: break off the tang of thread insert.
5. Extraction tools: used for removing the damaged thread insert from the threaded hole.
