• Model NO.：311-1802
• Pieces：3PCS
• Application：Motorize
• Customized：Customized
• Type：Thread Ground Right Hand
• Transport Package：Carton
• Specification：3PCS
• Trademark：NEUTRAL
• Origin：China
• HS Code：8207400000
• Production Capacity：50000,Month

Basic Info.

Model NO. 311-1802 Pieces 3PCS Application Motorize Customized Customized Type Thread Ground Right Hand Transport Package Carton Specification 3PCS Trademark NEUTRAL Origin China HS Code 8207400000 Production Capacity 50000/Month

Product Description

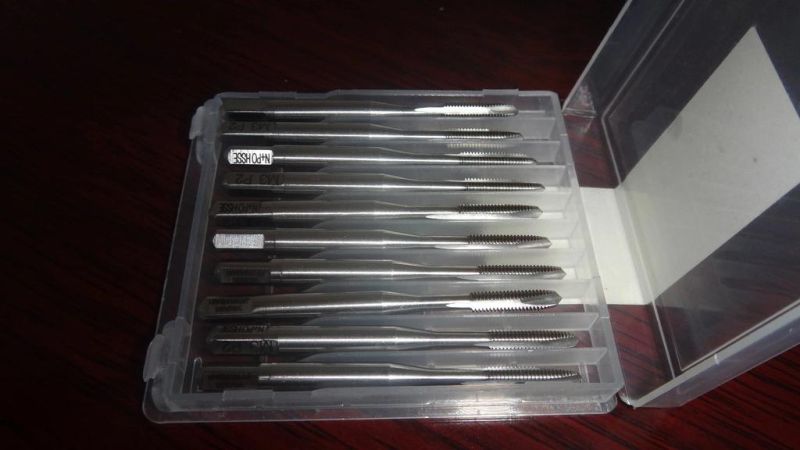

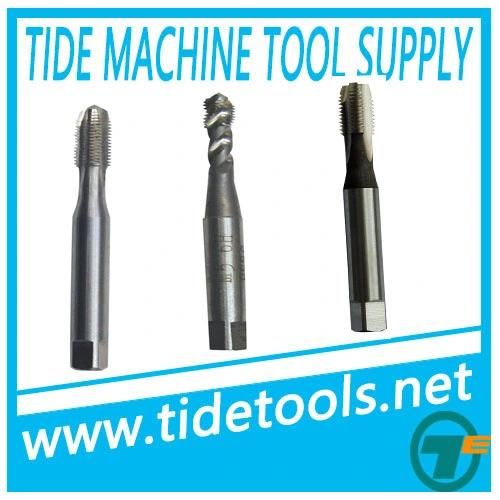

DIN 371 HSS MACHINE Tap 3PCS Set

Tap: DIN371 standard

Tap: High speed steel material

Tap: Used with lathe machine

Tap:Thread ground right hand








M35 HSS
Size	Straight Flute Taper "A" Model No.	Straight Flute Bottom "C" Model No.	Spiral Point Model No.	Spiral Flute 15° Flute Model No.	Spiral Flute 35° Flute Model No.
M2-0.4mm	311-1802	311-1902	311-1812	311-1922	311-1822
M3-0.5mm	311-1803	311-1903	311-1813	311-1923	311-1823
M4-0.7mm	311-1804	311-1904	311-1814	311-1924	311-1824
M5-0.8mm	311-1805	311-1905	311-1815	311-1925	311-1825
M6-1.0mm	311-1806	311-1906	311-1816	311-1926	311-1826
M8-1.25mm	311-1808	311-1908	311-1818	311-1928	311-1828
M10-1.5mm	311-1810	311-1910	311-1820	311-1930	311-1830



M35 HSS Tin- Coated
Size	Straight Flute Taper "A" Model No.	Straight Flute Bottom "C" Model No.	Spiral Point Model No.	Spiral Flute 15° Flute Model No.	Spiral Flute 35° Flute Model No.
M2-0.4mm	311-1832	311-1932	311-1842	311-1952	311-1852
M3-0.5mm	311-1833	311-1933	311-1843	311-1953	311-1853
M4-0.7mm	311-1834	311-1934	311-1844	311-1954	311-1854
M5-0.8mm	311-1835	311-1935	311-1845	311-1955	311-1855
M6-1.0mm	311-1836	311-1936	311-1846	311-1956	311-1856
M8-1.25mm	311-1838	311-1938	311-1848	311-1958	311-1858
M10-1.5mm	311-1840	311-1940	311-1850	311-1960	311-1860
