• Model NO.：45blue
• Max Processing Height：130mm
• Transport Package：Carton Box
• Trademark：hightop
• Origin：Shandong, China
• HS Code：8205700000
• Production Capacity：4000

Basic Info.

Model NO. 45blue Max Processing Height 130mm Transport Package Carton Box Trademark hightop Origin Shandong, China HS Code 8205700000 Production Capacity 4000

Product Description

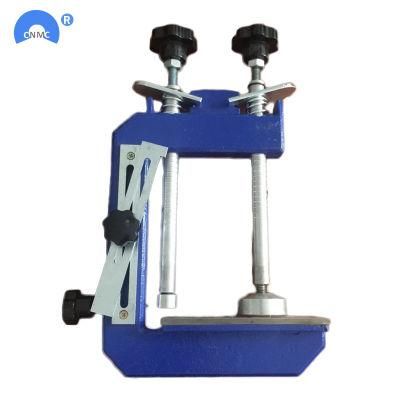

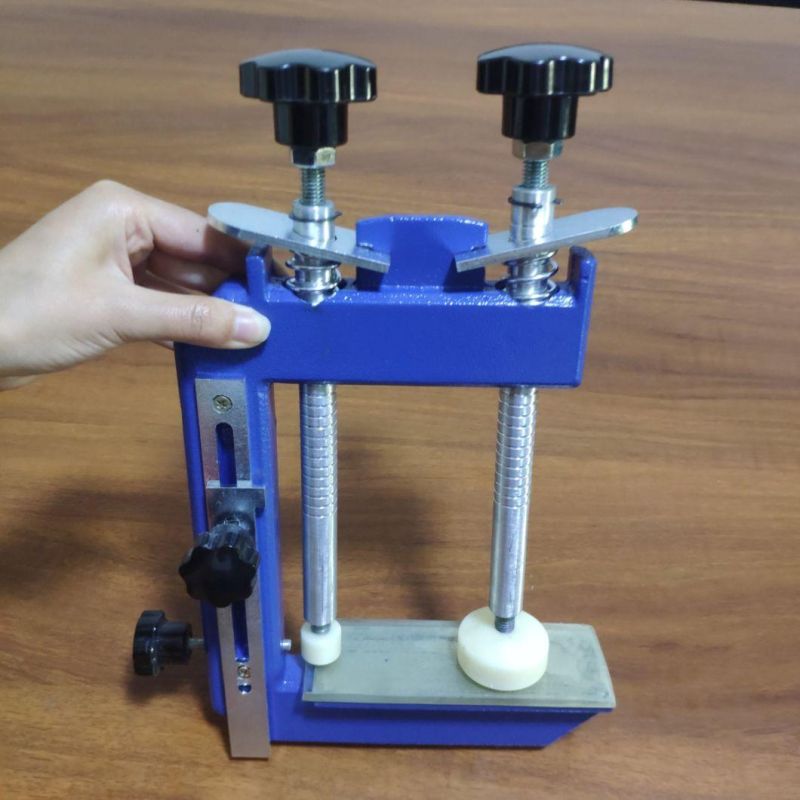

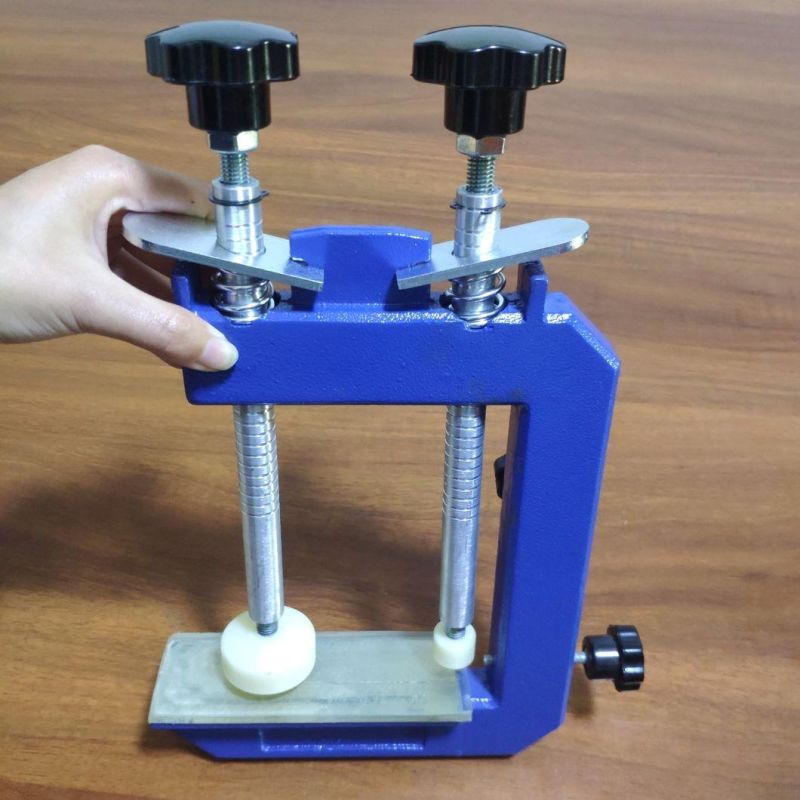

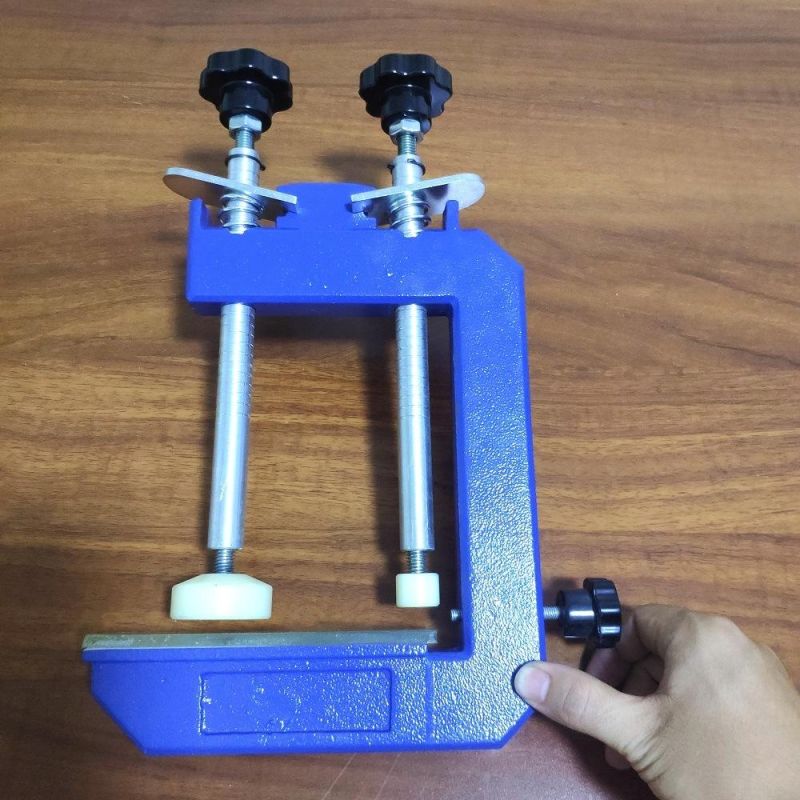

45 degree stone mitre clamp for granite marble1. 45 degree adjustable metal stone mitre clamp is mainly use for the man-made and natural tilestone, or other similar sheet of 45 stitching.

2. When two work pieces are processed into 45 edge bevel, then clean the 45 bevel face assembling together, and the two 45 workpiece fit into a 90 with each other, use the fixture in plastic extrusion seam stitching.

3. Put the bottom of width stone on the fixture work surface which with white rubber, the side of the narrow stone close to the 90 inside of the fixture.

4.Then two binder lever can be adjusted by adjusting spring device access to the top position of the work piece, then rotating the screw at the top of the binder lever to put pressure in place to maintain the fixture locked position for a certain time, until the workpiece fully bonded joints, solid, and then release the fixture.


ITEMS	SIZE	EACH WEIGHT
HTMC45	32*20 CM	2.5 KG

You are welcomed to contact me for more information and product details!
I would like to offer my best quality, transport, help and discount for you!!!
