Manual Pipe Threader 1/2" -2" (12R)
Hangzhou Hongli Pipe Machinery Co., Ltd.- Type of Tap：Spiral Fluting Tap
- Type of Die：Pipe Dies
- Material：Alloy Tool Steel
- Brand：Hongli
- Standard：Metric, British, American
- Application for Machine Tool：Thread
Base Info
- Model NO.：12R
- Pieces：1set 1carton
- Application：Manual
- Customized：Customized
- Prodcut Name：Manual Pipe Threader
- Transport Package：Carton Case
- Specification：70*20*16cm
- Trademark：Hongli
- Origin：Zhengjiang China
- HS Code：8207400000
- Production Capacity：1000
Description
Basic Info.
Model NO. 12R Pieces 1set 1carton Application Manual Customized Customized Prodcut Name Manual Pipe Threader Transport Package Carton Case Specification 70*20*16cm Trademark Hongli Origin Zhengjiang China HS Code 8207400000 Production Capacity 1000Product Description
Product Description
Product Application

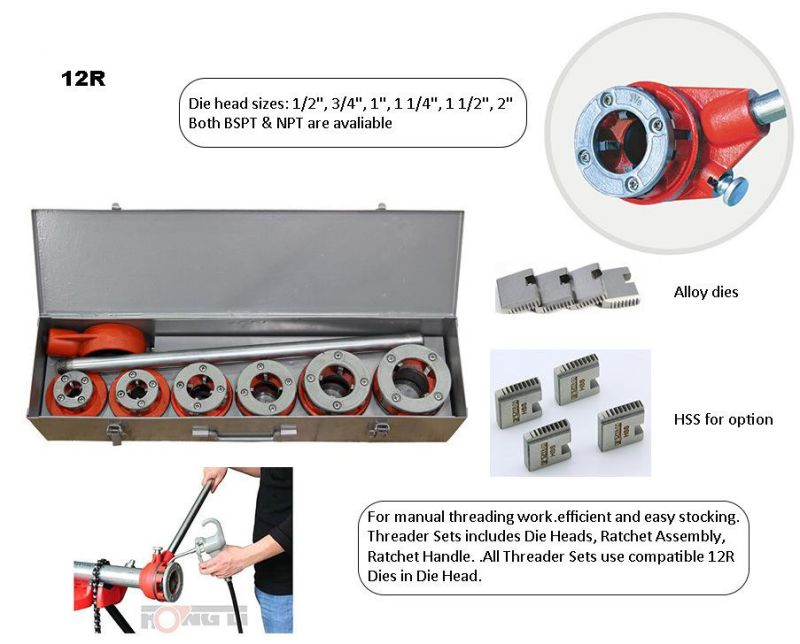

Model 12R Manual Ratchet Threader for BSPT or NPT Threader
This machine is for threading of various water, electric or gas pipes ranging form 1/2" - 2". It is efficient and can be widely used in equipment installation and construction industries and is an ideal device for increasing efficiency, shortening construction time, securing construction quality, and decreasing working intensity. Read this manual carefully before using the machine.
HS Code of 12R Manual Ratchet Threader: 8207400000
Ratchet Threader
- Precision thread cutting capacity:
- BSPT right dia. 1/2"-2"
- NPT right dia. 1/2"-2"
Ratchet Lever
1. Convenient, lockable reversal of ratchet direction
2. Right and handed threads
3. Secure hold with retainer locking,simple insertion and removal of die heads
4. User friendly
5. Slim, compact shape with excellent overall size, angle requirements of 22.5°
6. For easy work in difficult to reach positions
7. Off-set lever
8. Labor saving
Quick Change Die Heads
1. Positive octagonal universal drive
2. Secure hold
3. Long pipe guide
4. Perfect centering
5. Simple insertion and removal of die heads
6. Easy changing
Precision Dies
1. High-quality tempered steel
2. Extremely long working life
3. Optimized cutting geometry
4. Gentle first cut, chip discharge
Ordering Information:
| Catalog.No. | Model No. | Description | Pipe Threading Capacity | N.W.:(KG) |
| 88500 | HL-12R | NPT | 1/2"-2"(12mm-50mm) | 23 |
| 88501 | HL-12R | BSPT | 1/2"-2"(12mm-50mm) | 23 |
Detailed images

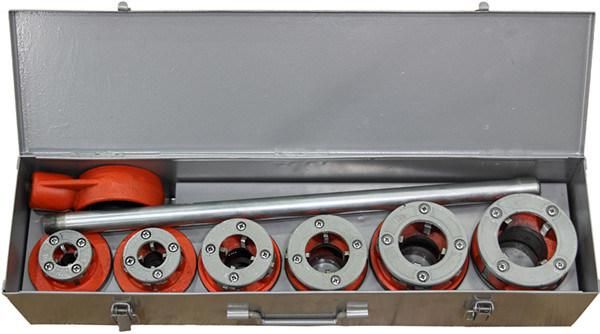

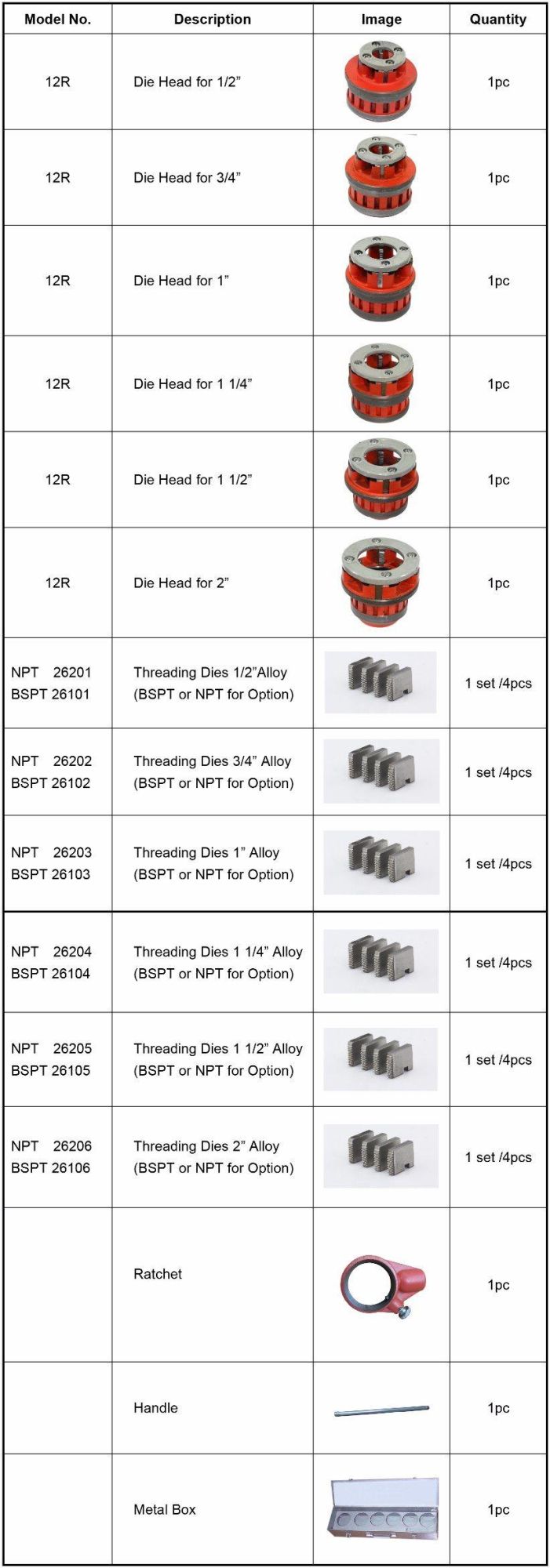

Standard Parts of 12R Manual Ratchet Threader:

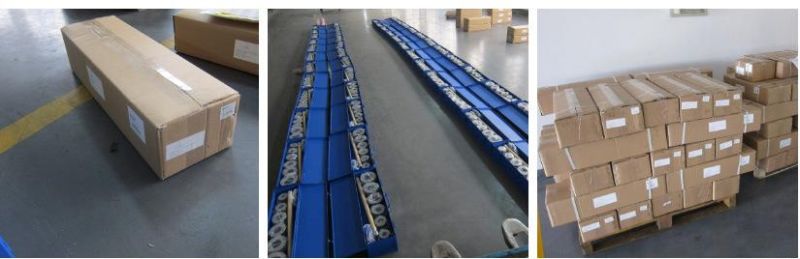

Packing & Delivery
Carton case:
Packing size: 70*20*16 cm
G.W.:25 kgs,
N.W.:23 kgs

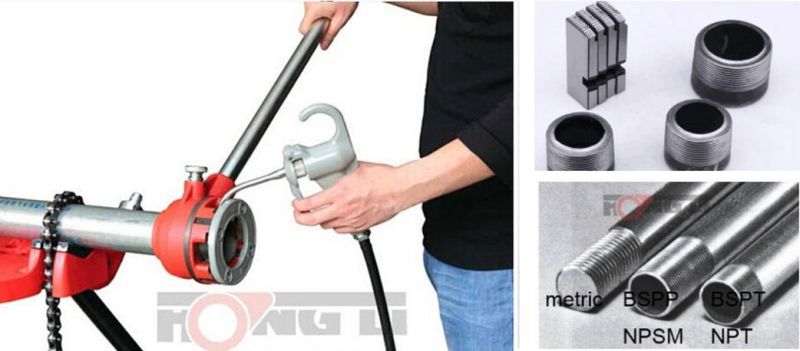

Operation pictures:
