• Model NO.：SOV-XLCT Series
• Feature：Ordinary
• Working Mode：Electric
• Folded：Unfolded
• Handle Color：Customized
• Application Age：Adult
• Name：Aluminum Alloy Hexagon Cassette Hydraulic Torque W
• Max. Pressure：700 Bar
• Max. Torque：2800-47500nm
• Hexagon Cassette Size(Inch)：1 7,16-2 3,8
• Swivel Joint：360*180
• OEM：Yes
• Return：Quick Return
• Accuracy：High Accuracy
• Market：Global
• Maintenance：Convenient, Dispenser with Special Tools
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO9001, SGS
• Trademark：SOV
• Origin：China
• HS Code：8467890000
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. SOV-XLCT Series Feature Ordinary Working Mode Electric Folded Unfolded Handle Color Customized Application Age Adult Name Aluminum Alloy Hexagon Cassette Hydraulic Torque W Max. Pressure 700 Bar Max. Torque 2800-47500nm Hexagon Cassette Size(Inch) 1 7/16-2 3/8 Swivel Joint 360*180 OEM Yes Return Quick Return Accuracy High Accuracy Market Global Maintenance Convenient, Dispenser with Special Tools Transport Package Standard Export Wooden Case Specification CE, ISO9001, SGS Trademark SOV Origin China HS Code 8467890000 Production Capacity 500 Sets Per Month

Product Description

                 Aluminum Alloy Hexagon Cassette Hydraulic Torque Wrench

Product Features

1. The innovative wrench structure without pin joint matches with rapid unloading hydraulic piston and automatic crank
2. The 360º × 180º Rotating hose coupling has no limitation in used space, convenient to operate.
3. The hydraulic piston and power head have small shape, with light weight, compact structure and small operating radius.
4. The nut rotation angle in single operation is large and the hydraulic piston has a quick return stroke. The work efficiency is high.
5. The reactive force is on one straight line, which can decrease the inner torque abrasion

6. The constant torque output provides the high precision for wrench in the whole working process.
7. The maintenance is simple and does not need the special tools.
8. The torque wrench surface has a good corrosion resistant performance after the nickel plating treatment.
9. All the hollow hydraulic wrenches have copper lining to ensure that the ratchet wheel does not contact with the wall, which can extend the working life.
10. You can select the various kinds of reduction sleeves to extend the application range.

Parameter

Model	SOV-2XLCT	SOV-4XLCT	SOV-8XLCT	SOV-14XLCT	SOV-30XLCT
Torque Range (nm)	232-2328	585-5858	1094-10941	1852-18521	4188-41882
Bolt Size (mm)	16-36	24-42	30-64	33-76	76-115
Nut Size (mm)	24-55	36-65	46-90	50-110	110-165

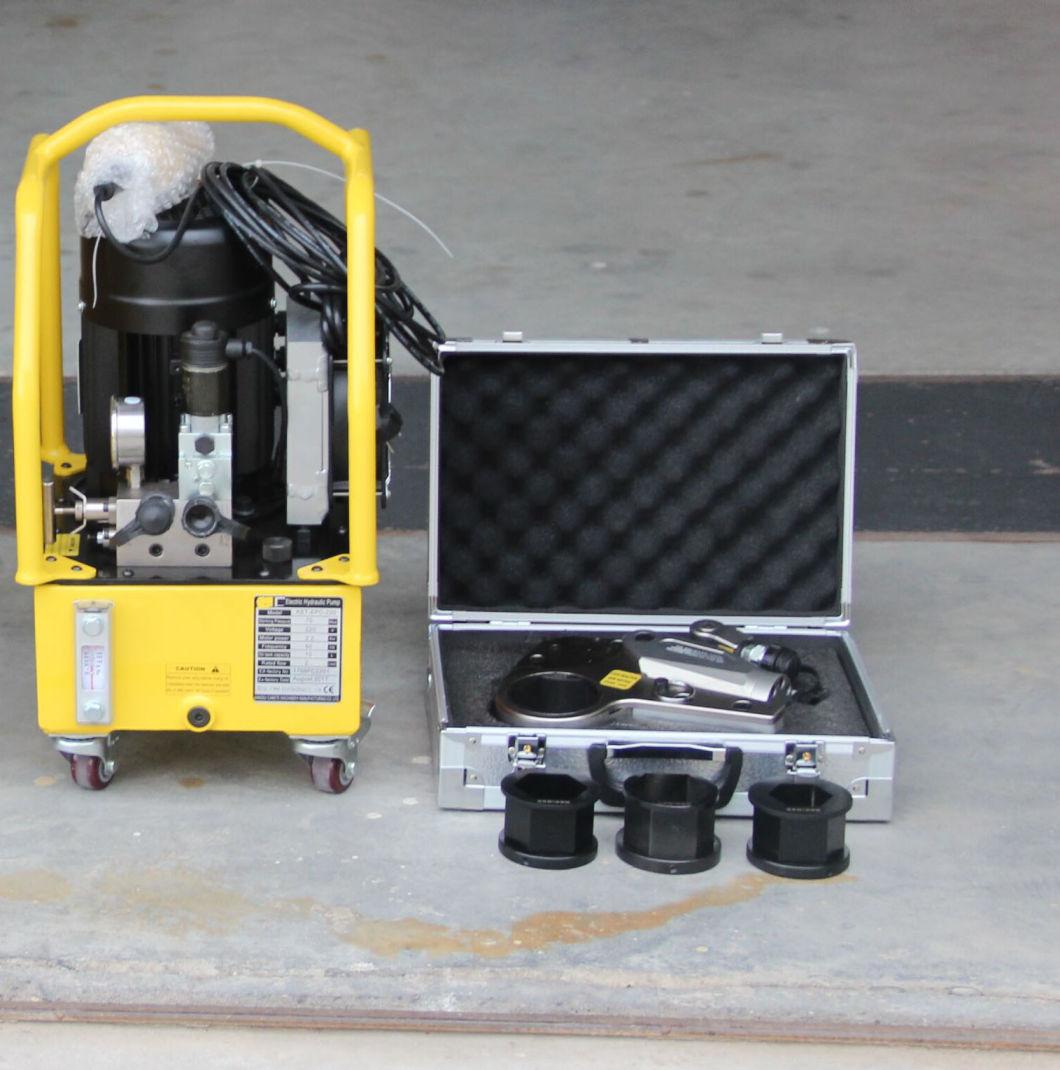

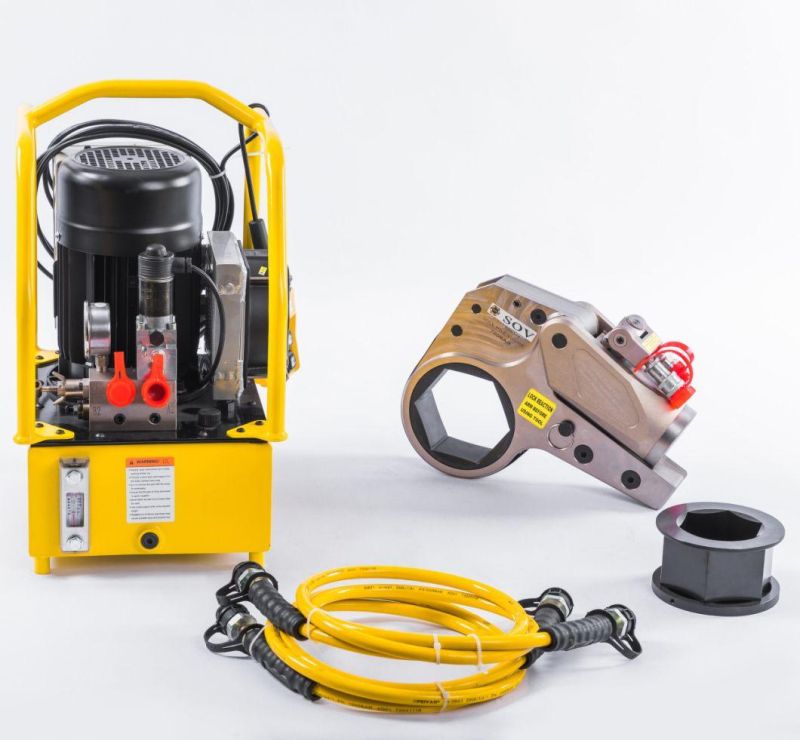

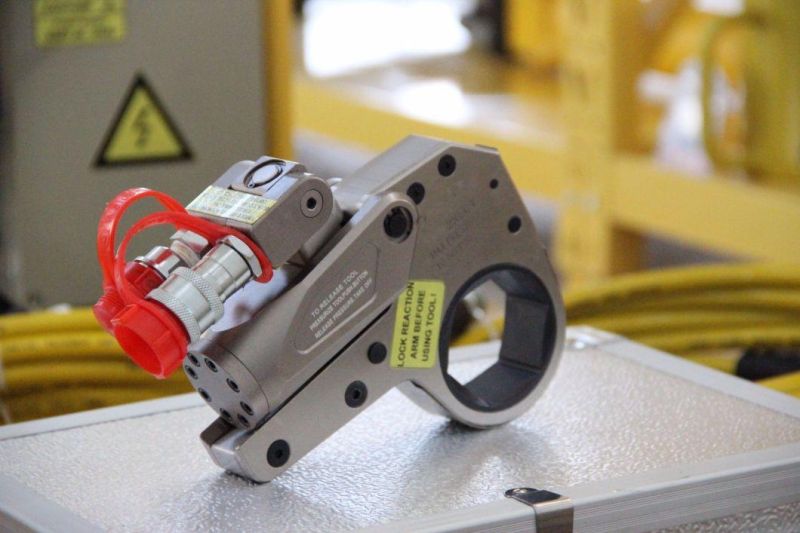

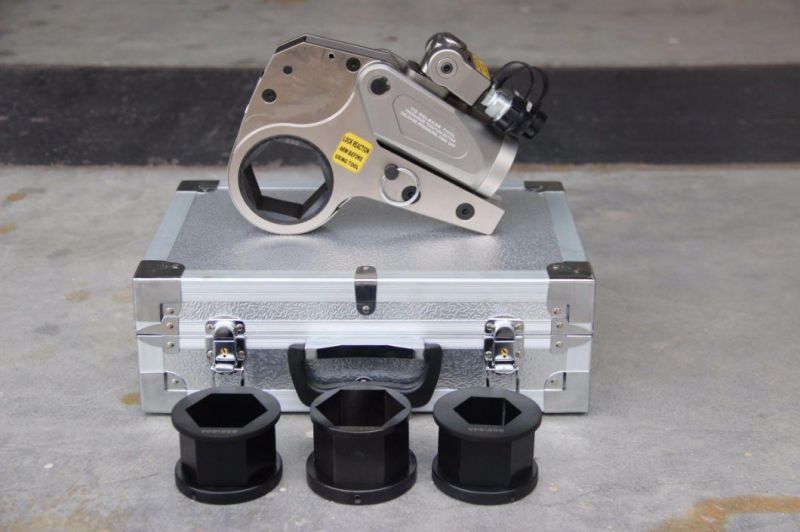

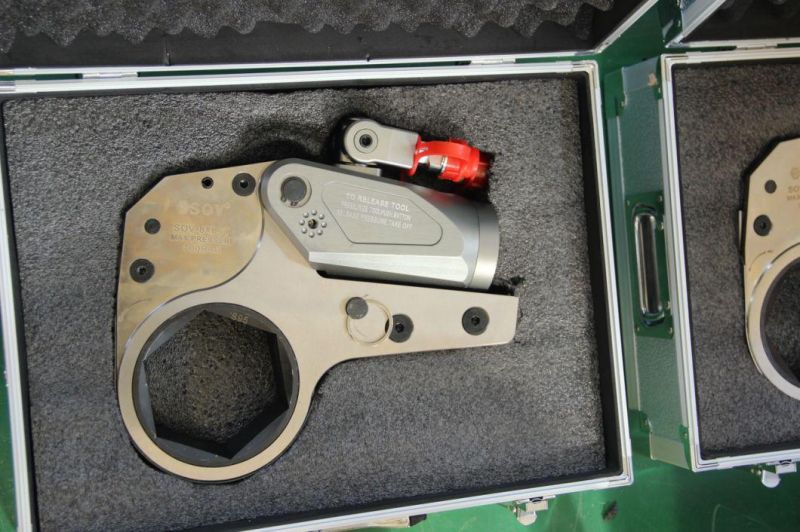

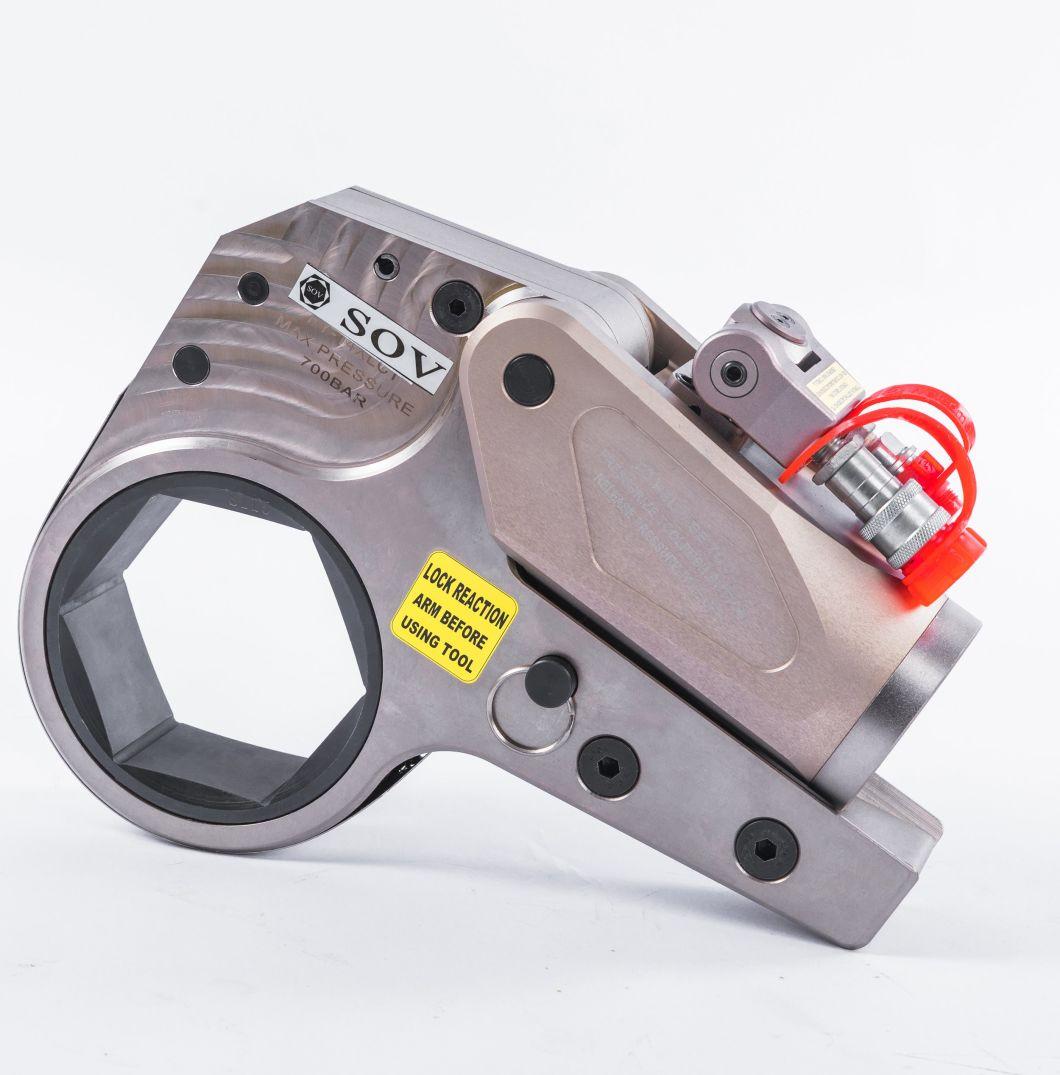

Photos

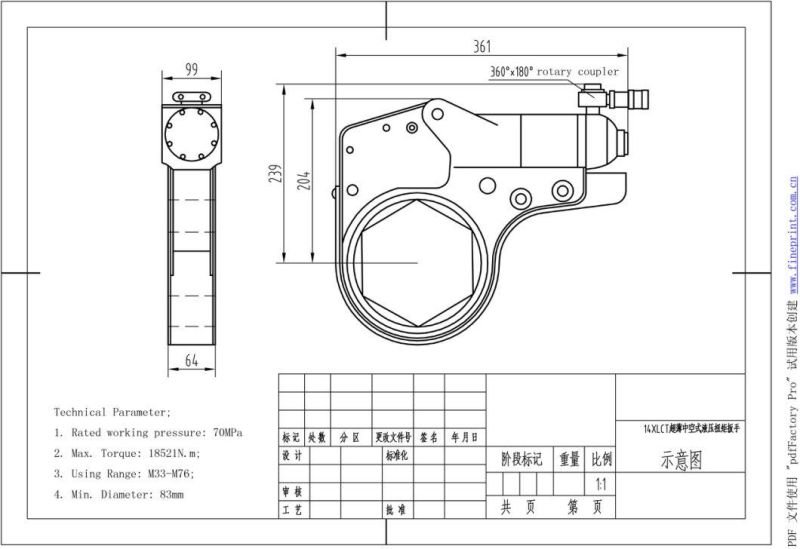

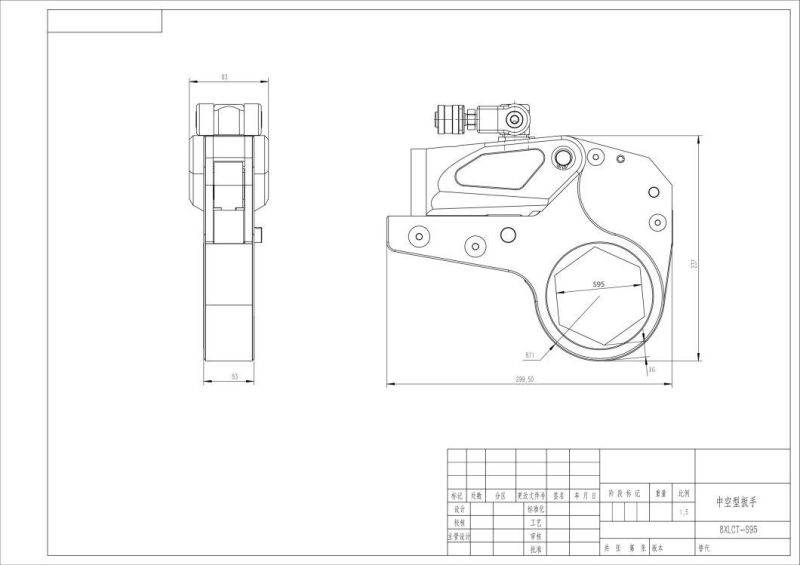

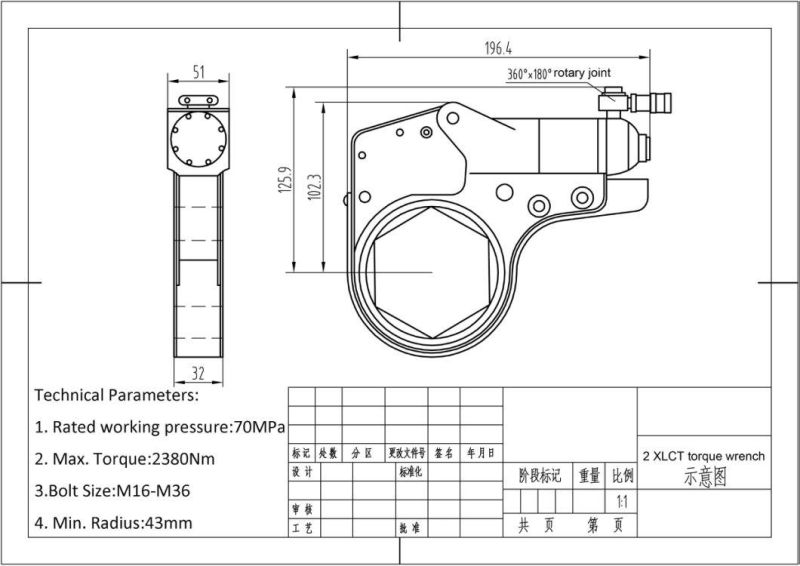

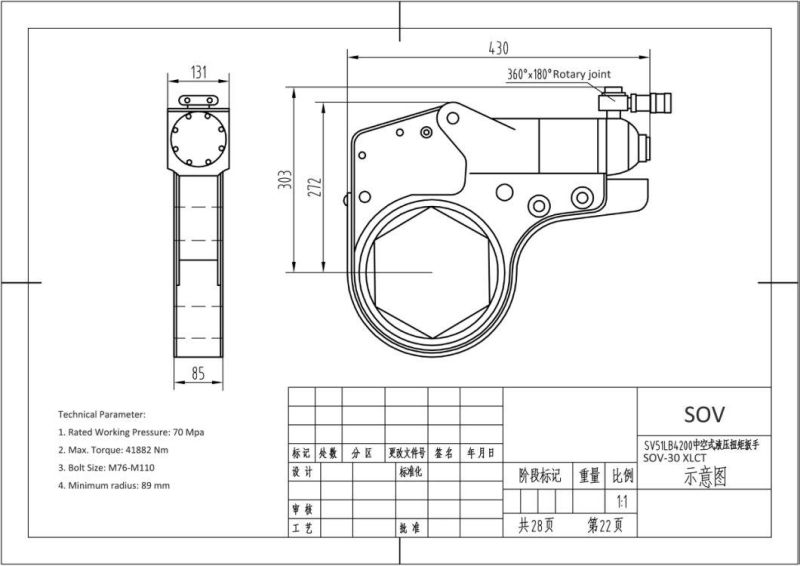

Drawings







Packaging Details

1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.

Delivery

1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Product Application

Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.

Our Service

1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information

SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards,  China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.

Competitive Advantages

1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
