Tungsten Carbide Rotary Files

Solid Metalworking LNC. Limited
  • Type：Carbide Burrs
  • Material：Carbide
  • Usage：Metal Drilling
  • Shape：Cylindrical
  • Processing Methods：Cutting Tooth File
  • Tooth Pattern：Bidentate Pattern

Base Info

  • Model NO.：SA~SN
  • Section Shape：Round
  • Color：Unicolor
  • Customized：Non-Customized
  • Condition：New
  • Code：SA~Sn
  • Shank：3, 6mm or 1,8", 1,4"
  • Head Dia.：3mm or 1,4" ~ 25mm or 1"
  • Length：70mm or 2-3,4"
  • Transport Package：Plastic Box
  • Specification：ISO
  • Trademark：AT CARBIDE
  • Origin：Chengdu, China
  • HS Code：82080100
  • Production Capacity：100, 000 PCS,Month

Description

StructureTungsten Carbide Rotary FilesTungsten Carbide Rotary FilesCOATINGTungsten Carbide Rotary FilesTungsten Carbide Rotary Files
Structure
Tungsten Carbide Rotary FilesFeature                                                                                                 1. Full line for a wide range of applications.2. Ferrous and nonferrous configurations for excellent finishes and efficient stock removal3. Thirteen head shapes4. A wide range of fluting styles5. Extra-long shanks available. 6. Automated temperature-controlled brazing7. Miniature burs8. Special configurations available to meet specific applications requirements.  9. Machine-ground cutting flutes10. Tool-to-tool consistency11. Complete resharpening service available12. Lab inspected raw materials.

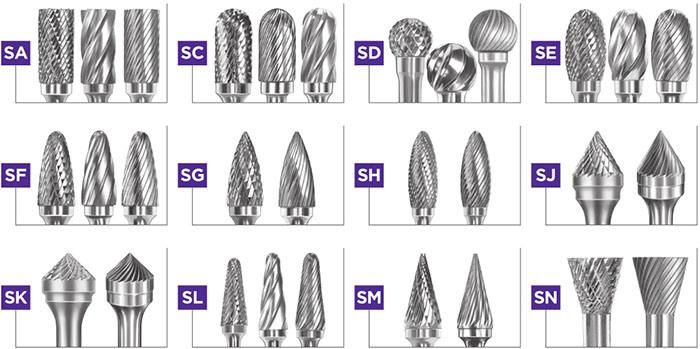

13Head Shapes
Tungsten Carbide Rotary Files

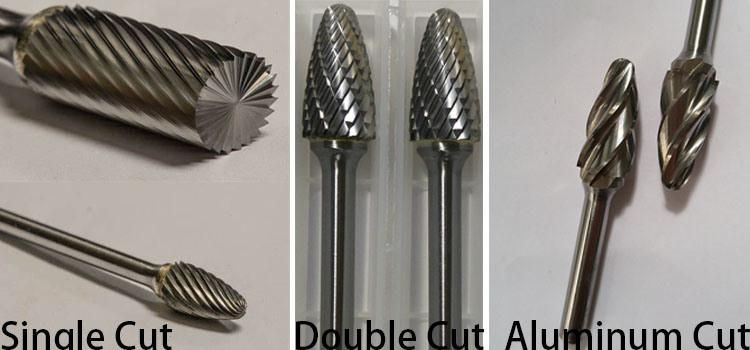

Cut Types
Tungsten Carbide Rotary Files


Applications: Mold & Die industry requires deburring tools that can handle the complexity of workpiece configurations and deliver accuracy required for tight tolerance applications. SGS burs are precisely ground on multiaxis CNC grinding machines offering unparalleled performance meeting the demands of challenging materials, including carbon steels, hardened steels, tool steels, stainless steels, and aluminum. • Chamfering, Creating a Radium, Weld Removal and Blending, Beveling, RepairCastings & Foundry work requires safe, effective, and consistent performance when it comes to approaching high-strength and heat-resistant materials. SGS is an ISO Certified Company, utilizing rigorous quality control measures throughout the manufacturing process. Our quality burs are ideal for cast materials, including iron, steel, copper-based alloys, aluminum based alloys, exotic alloys, titanium alloys. • Parting Line Removal, Fin Removal, Finishing of Casting Risers and Flash RemovalAutomotive machining means high production and cost control without sacrificing quality. The durability of carbide burs can be seen within automotive manufacturing or aftermarket service repair. • Flash Removal, Chamfering, Weld Removal and Blending, Beveling, Aftermarket Repair
