WEDO Beryllium Copper Chisel Non Sparking Pneumatic Bull Point Chisel Bam/FM/GS Certified

WEDO TOOLS CO.,LTD
  • Punch Type：Point Chisel
  • Material：Beryllium Copper
  • Color：Golden Yellow
  • Customized：Customized
  • Condition：New
  • Transport Package：Plastic Bag,Box,Carton,Pallet

Base Info

  • Model NO.：BE223-1002
  • Trademark：WEDO
  • Origin：China
  • HS Code：8203400000
  • Production Capacity：30000 Piece Per Year

Description

Product namePneumatic Bull Point ChiselModel NumberBE223-1002BrandWEDOMaterialBeryllium CopperIncludingPneumatic Bull Point ChiselAbove item no. is only for Beryllium Copper material, Besides Beryllium Copper, WEDO also supply in Aluminium Bronze below are differences of two material.
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%

Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%

To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC,  hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.

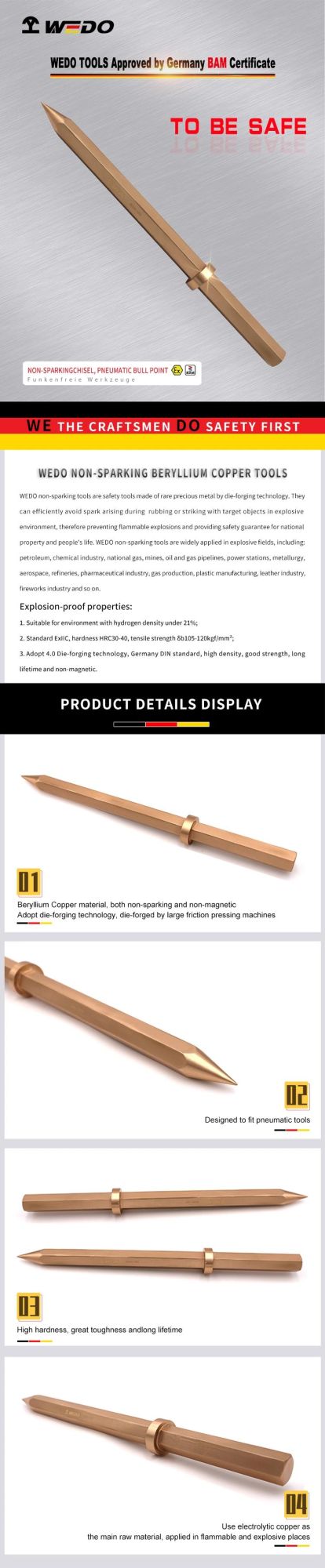

DETAILS AND APPLICATION

WEDO Beryllium Copper Chisel Non Sparking Pneumatic Bull Point Chisel Bam/FM/GS CertifiedWEDO Beryllium Copper Chisel Non Sparking Pneumatic Bull Point Chisel Bam/FM/GS Certified
