• Model NO.：Sunny
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. Sunny Production Capacity 100 Sets Per Month

Product Description

PLY Pallet Vacuum Lifter/ Vacuum lifter for wood/ Steel Plaste Vacuum lifter/box sucker/vacuum sucker:

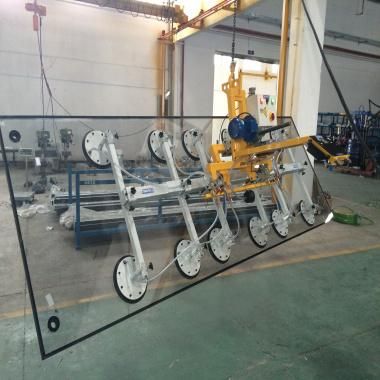

Our Co. Devoted CW-glass series for Glass processing, curtain wall processing and Glass installation with reliability and safety. By different application purpose and site, We divided the lifters to three series: EPD (Electric powered lifter), BPD(Battery Powered lifter), Quattro movable trolley and WS-GR(powered Glass Robot), each of Them featured for different applications with different functions.



Main components:

Vacuum blower: Siemens vacuum blower, model GS2.2, power supply 380V, 2.2KW, maximum vacuum flow 120cbm/h, maximum vacuum pressure -55kpa
Lifting tube: Diameter 140mm, tube length 3050mm, maximum lifting height 2100mm, maximum loading 35kg for semi-porous, 40kg for dense.
Double suction pads for carton box, the yoke length 400mm, mounted on the control housing by flange
A ball bearing integrated upper rotation jointer with single way valve to prevent the goods falling down in case of power lost.
Two-hands control unit with a rotation handle for up and down, the brake handle for release, the handle were extended for higher stack
A plastic vacuum filter mounted on the column.
A vacuum regulator mounted on the vacuum blower which protect the blower in case overheat, the preset vacuum pressure is -45kpa
8M vacuum feeding pipe of Diameter 52mm for vacuum connection
A vacuum filter standard for keep air clean
The lifter was designed for transportation or handling the materials at:
Max. Carrying capacity: 40kg for dense, 35kg for semi-porous

Stand jib crane
Maximum loads: 125kg
Total height: 3800mm
Working height: 3500mm
Jib length: 3000mm
Jib model: 250*250 square steel pipe
Sliding track: Aluminum alloy
Rotation degree: 270°
Loading slid trolley: 1 piece
Cable connection slid trolley: 3 pieces



Guarantee & Aftersales service:

1)Guarantee the complete machine for one year, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
