• Model NO.：Vacuboy-500,2
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. Vacuboy-500/2 Production Capacity 100 Sets Per Month

Product Description

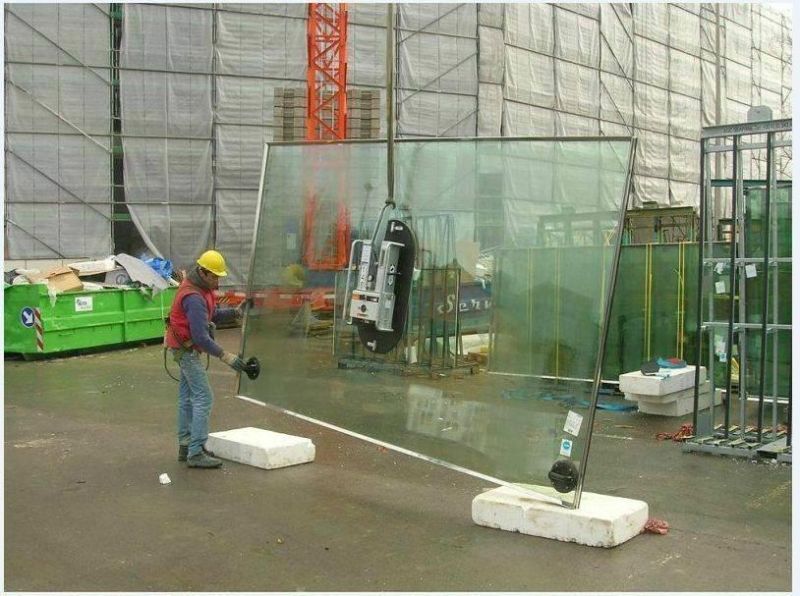

BPD Vacuboy Glass Sheet Lifter/Glass Sucker

BPD VacuboyMain components:

Steel frame: Good quality steel material in stable welded and screwed. Length 1000mm, width 600mm
Vacuum Pump: Taiwan Vacutronics, type CV-60, 3.6 cbm/h, 12V DC, 90w, Max vacuum level up to 85%
2 of rectangle sponge suction pads of dimensions 300*500, with buffer spring, Mounted on the main frame
Vacuum system included the below components:
A independent safety tank and a Non-return valve to ensure a long keeping time in case power failure.
A "Red-Green" vacuum meter mounted in front of device.
A Digital vacuum switch to detect the vacuum level and adjust the vacuum level by button.
A special-made 3/2 way hand switch slide valve is used for manual controlling the "Suction-Release",
The device has an integrated warning unit EW0 with acoustic signal. It runs on a battery and chargerable
independent of power supply. In case of a power failure or if the vacuum drops below 60% a howler starts.
A mechanical tilting unit to achieve the panel from 0-90º By manually.
A special turning unit to make the panel lifting along the length
The lifter was designed for transportation or handling the materials at:

Max. Carrying capacity: 640kg at horizontal, 320kg at vertical (60% vacuum level)
