WEDO Beryllium Copper Chisel Non-Sparking Hex/6 Point Chisel Bam/FM/GS Certified
WEDO TOOLS CO.,LTD- Chisel Type：Hex,6 Point Chisel
- Color：Golden Yellow
- Customized：Customized
- Condition：New
- Transport Package：Plastic Bag,Box,Carton,Pallet
- Trademark：WEDO
Base Info
- Model NO.：BE232
- Origin：China
- HS Code：8205590000
- Production Capacity：30000 Piece Per Year
Description
SIZE Beryllium Copper S(mm) L(mm) B(mm) N.W. (g) BE232-1002 10 150 12 98 BE232-1004 14 200 16 251 BE232-1006 16 160 18 262 BE232-1008 14 250 16 320 BE232-1010 17 300 19 772 BE232-1012 17 350 19 903 BE232-1014 22 600 24 1861 BE232-1016 25 300 28 1204 BE232-1018 30 500 35 2860
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%

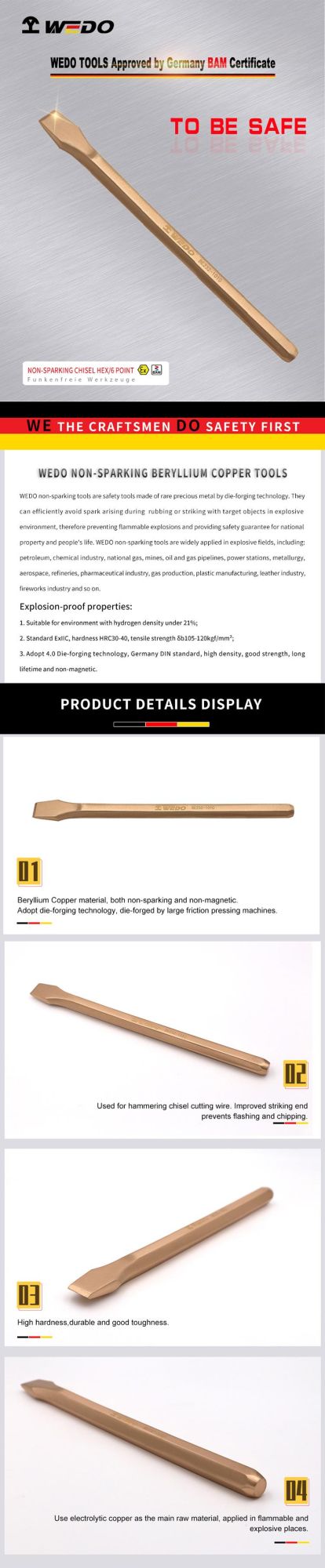

Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
DETAILS AND APPLICATION
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%
Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%
To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC, hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
