• Model NO.：SOV-FDB-55
• Feature：Ordinary
• Working Mode：Manual
• Folded：Unfolded
• Handle Color：-
• Application Age：Adult
• Product Name：5500 Nm Hand Torque Multiplier
• Max. Torque：5500 Nm
• Transmission Ratio：25
• Input Square：1,2"
• Output Square：1-1,2"
• Bolt Size：M38-52
• Nut Size：S55-80
• Warranty：One Year
• Delivery Time：1-15 Days After Receive Payment
• Color：Customize
• Transport Package：Wooden Case
• Specification：common
• Trademark：SOV
• Origin：China
• HS Code：8205900000
• Production Capacity：500 PCS,Month

Basic Info.

Model NO. SOV-FDB-55 Feature Ordinary Working Mode Manual Folded Unfolded Handle Color - Application Age Adult Product Name 5500 Nm Hand Torque Multiplier Max. Torque 5500 Nm Transmission Ratio 25 Input Square 1/2" Output Square 1-1/2" Bolt Size M38-52 Nut Size S55-80 Warranty One Year Delivery Time 1-15 Days After Receive Payment Color Customize Transport Package Wooden Case Specification common Trademark SOV Origin China HS Code 8205900000 Production Capacity 500 PCS/Month

Product Description

                                         5500 Nm Hand Torque Multiplier

Features:

• Mechanical torque multiplier could be widely used with many other power tools and applicable for the anti-explosion environment.

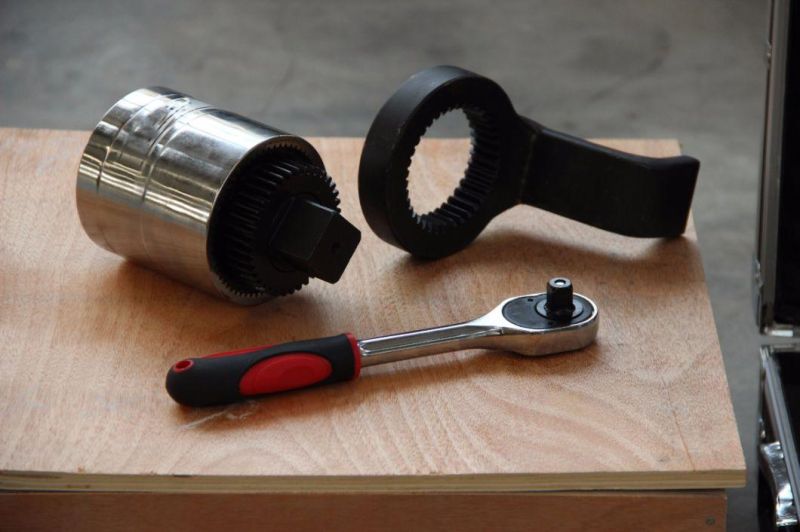

• It has high precision and reduction ratio as well as the planetary gear structure and anti-reverse structure.
• The high-tech alloy material planetary gear is used for it, with compact structure, high strength, well abrasive resistance and light weight.
• All the machine parts are finished through CNC machining center, which can ensure the consistency of the products.
• The feature of high quality and maintenance-free saves the maintenance time and cost.

Parameter


Model	SOV-FDB-15	SOV-FDB-20	SOV-FDB-35	SOV-FDB-55	SOV-FDB-75	SOV-FDB-100	SOV-FDB-150	SOV-FDB-200
Max. Torque(Nm)	1500	2000	3500	5500	7500	10000	15000	20000
Transmission ratio	4.8	14	17	19	22	61	74.8	96.8
Input Square(mm)	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7
Output Square(mm)	25	25	30	35	40	50	55	60
Bolt Size(mm)	M20-30	M22-36	M30-45	M36-52	M42-60	M52-68	M60-76	M72-80
Nut Size(mm)	S30-46	S32-55	S46-70	S55-80	S65-90	S80-105	S90-115	S105-135

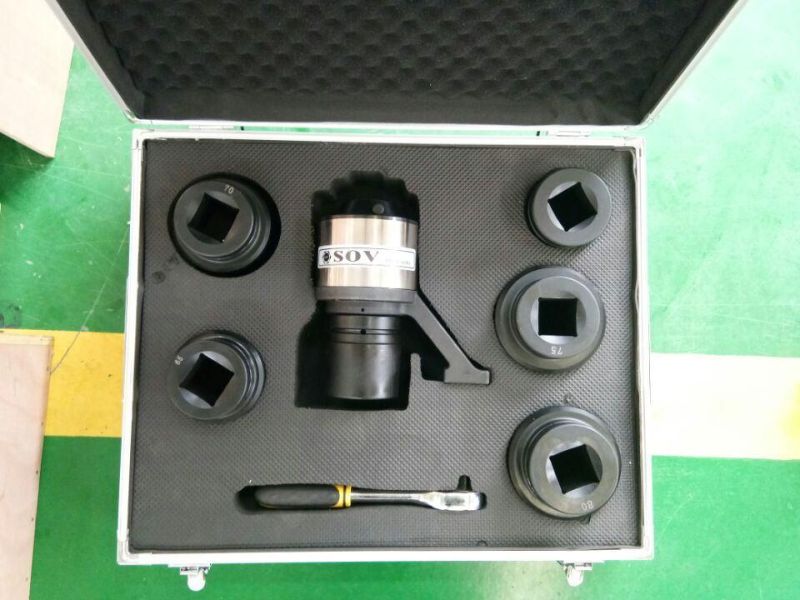

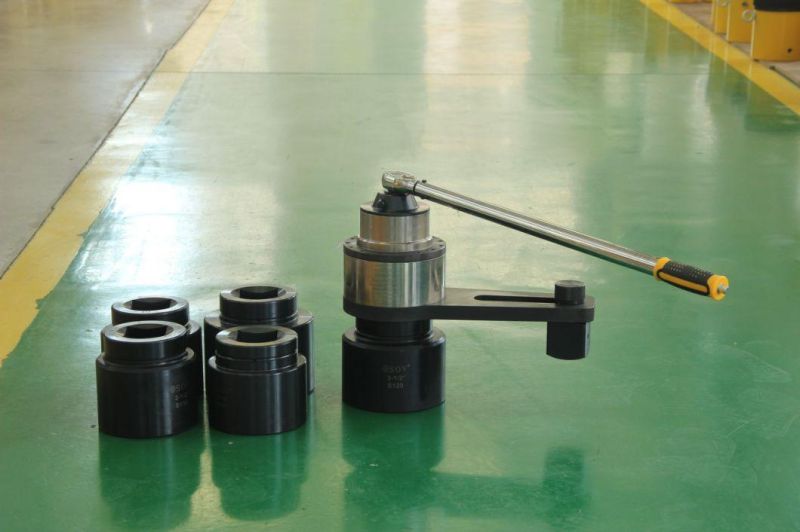

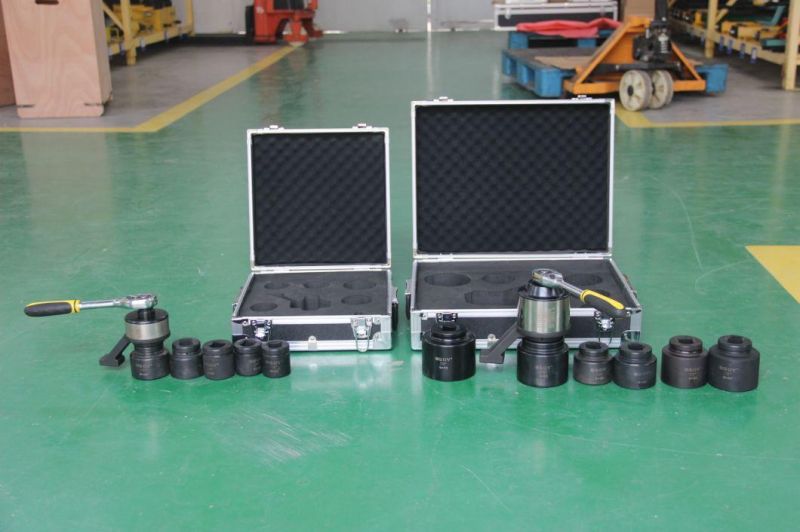

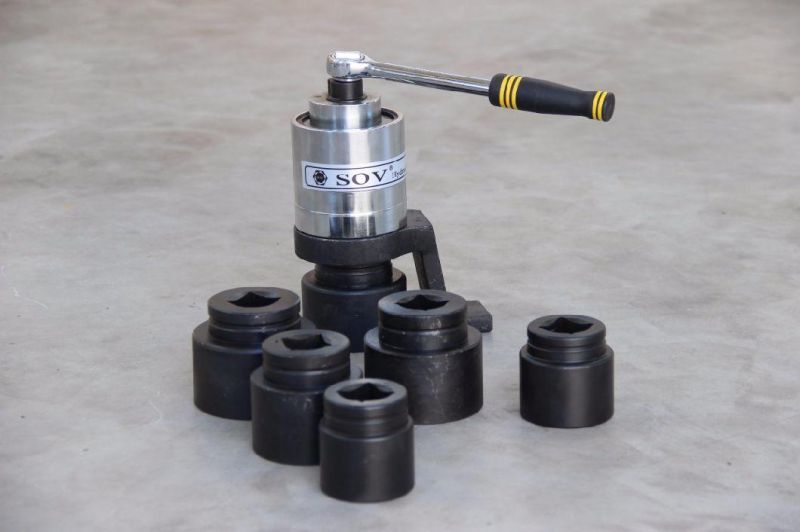

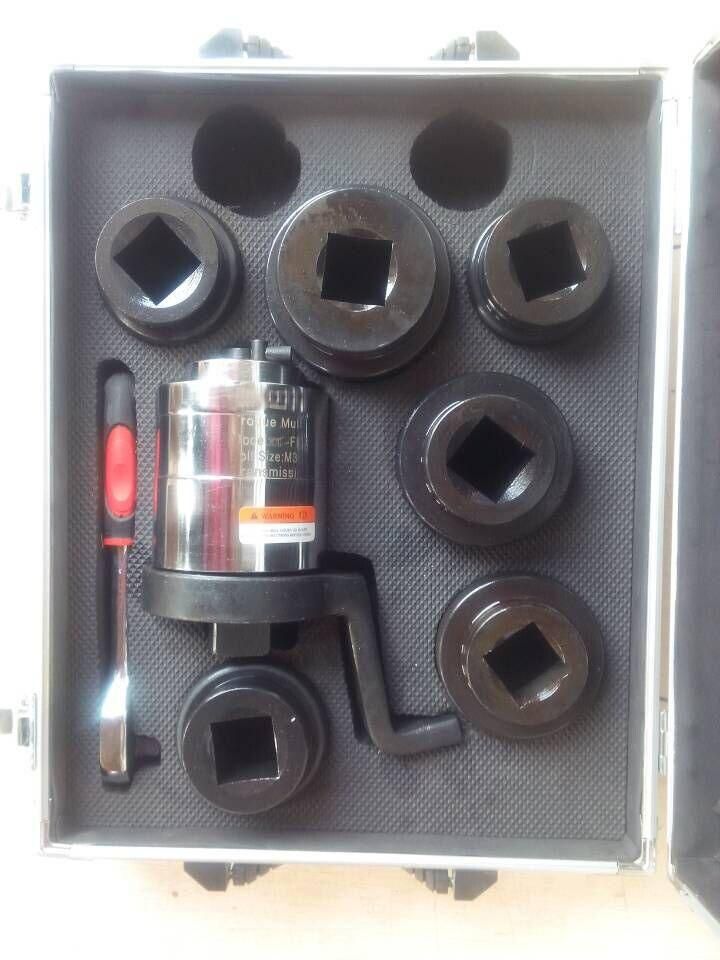

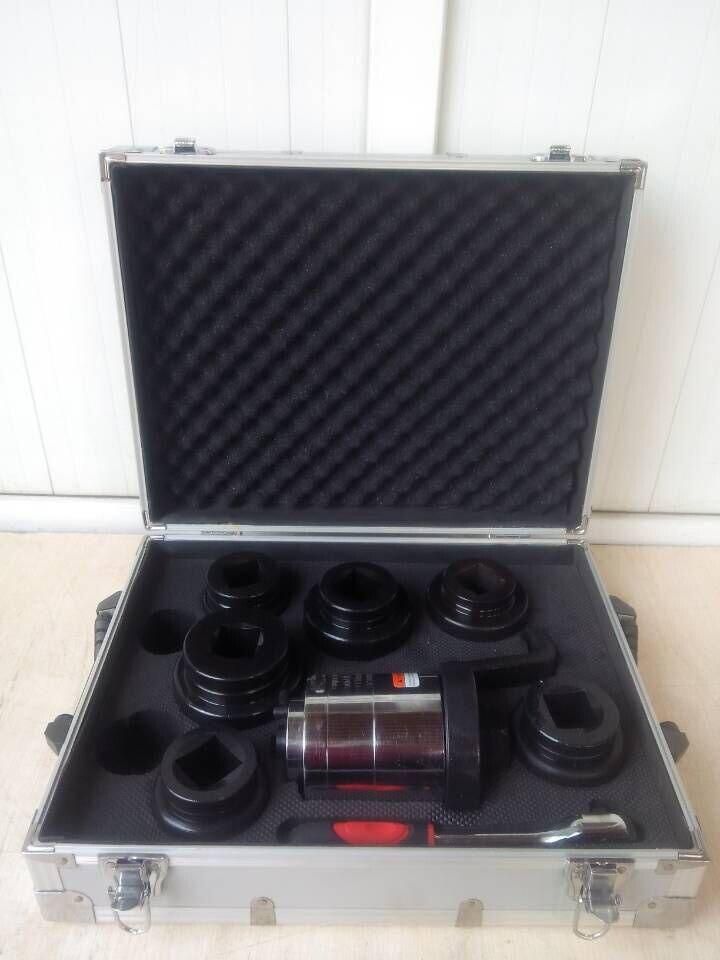

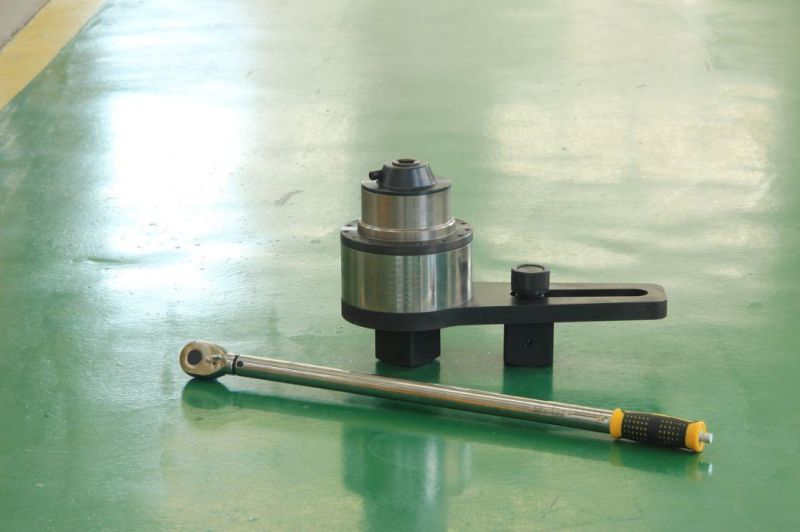

Photos















Packing & Shipping

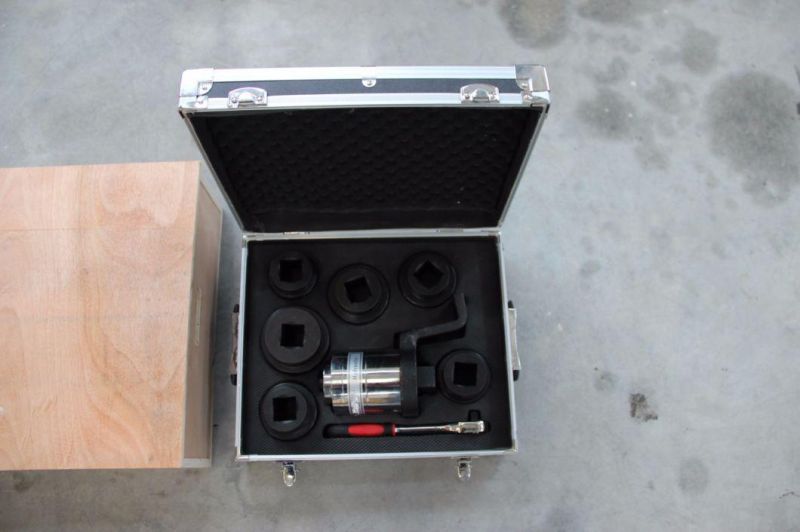

Packing: All products will be packed with wooden case of outer packing;

Shipping:

1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;

2. Large quantity: by sea transportation. Goods will arrive in 10~45 days, according to the diatance.

Company Information

SOV is a manufacturer engaged in designing and manufacturing hydraulic cylinders (capacity covers from 5- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:

• Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
• Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
