• Model NO.：CW115
• Transport Package：Plastic Shrink Film
• Specification：BS 500kg to 10Ton
• Trademark：Cargosafe
• Origin：Zhejiang, China
• HS Code：630790
• Production Capacity：30000PCS

Basic Info.

Model NO. CW115 Transport Package Plastic Shrink Film Specification BS 500kg to 10Ton Trademark Cargosafe Origin Zhejiang, China HS Code 630790 Production Capacity 30000PCS

Product Description

Detailed specification

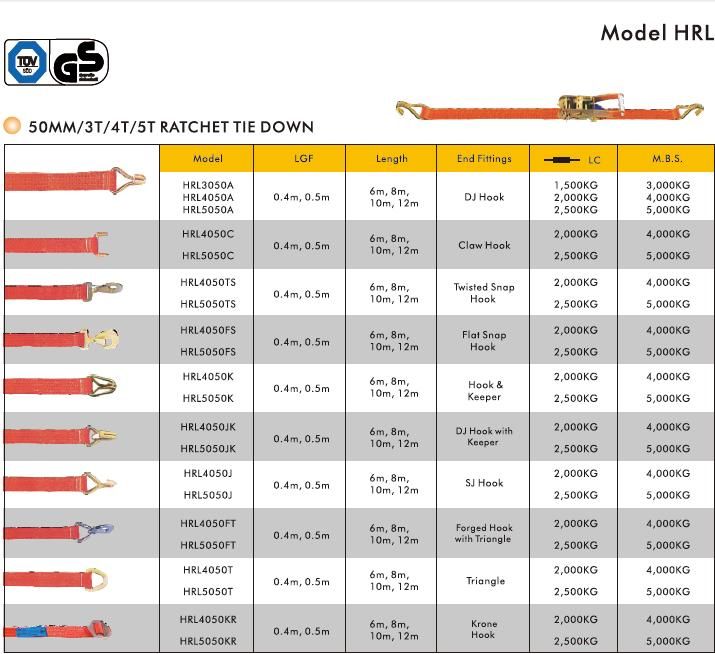

Ratchet Strap Specification:

Product Name	Ratchet Tie Down Strap
Width	25mm, 50mm, 75mm, 100mm (1inch to 4inch ratchets for your choice)
Length	From 1m to 100m
Webbing Width	25mm-100mm
Break Strength	800kg, 1T, 2T, 3T, 4T, 5T, 6T, 7T, 8T, 9T, 10T
Ratchet	Steel handle/ Aluminum Handle/ Plastic-covering Handle/ Rubber-covering Handle
Hook	Double J hook/ Single J hook/ S hook/Claw Hook/ Open claw hook/ U-hook/without hook
Webbing Material	100% high tenacity polyester
Webbing Color	Yellow/ Red/ Blue/ Black or as require
Standard	European Standard/ US Standard/ Australia Standard
Low Elongation	<= 7%
Package	Shrink package carton package



About us



Since 2001, we have been specializing in the field of Lashing Equipment and Lifting Equipment. Our main products are Cargo Lashings, Webbing Slings



and Round Slings, etc. In the meantime, we timely develop new products in relevant field to meet market demands, such as Cargo Nets, Edge Protectors



and Safety Harness, etc.



All products are produced under strict standard of quality control, and constant research and development ensuring that you will get the latest products



produced with the most advanced and cost effective technologies. Most of our products are CE and GS certified. We are confident that our products and



service will satisfy the highest standards of requirements.



Features:

This ratchet cargo lashings are used for securing truck loads, tying down loads while transporting, shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportion and for a vairety of other applications securing truck loads. The use of cargo lashings can reduce the chance of load
damage and also protect other traffic party.

The main advantage of ratchet cargo lashings are:

* Load restrain using a tension device(ratchet)

* Effective and safe control of loads during transportation

* Extremely quick and efficient tie down and release the load thus saving time

* No damage to the load being tied down



Warning:

* Not for lifting!

* Only trained and authorized persons are permitted to use the ratchet tie down.

* Working Temperature: - 40°C to + 120°C for polyester (PES).



Caution:

1. Do not exceed the lashing capacity indicated by the manufacturer! In the case of improper use, the transported articles can not be secured correctly and may cause damages.

2. Protect the webbing against sharp edges!

3. Examine the wear or damages of the web lashing before each use. If any wear and damages at the webbing or damages at the metal parts, do not use the ratchet tie down any longer.

4. Make sure the webbing is fitted without twists and in such a way that may influence the rated lashing capacity, otherwise it may cause damages.

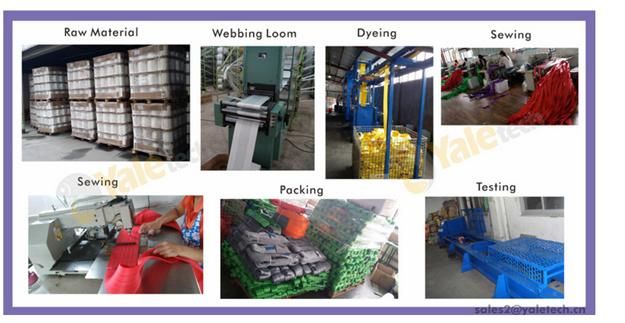

Production  process :

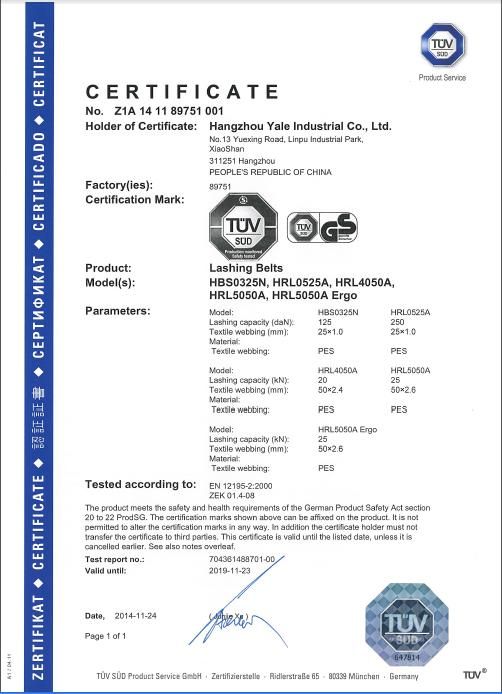

We have got TUV GS certificate for cargo lashing belt ,
