• Model NO.：SV31LB Series
• Feature：Ordinary
• Working Mode：Hydraulic
• Folded：Unfolded
• Handle Color：Colorful
• Application Age：Adult
• Torque Range (mm)：1550-15500
• Bolt Diameter (mm)：36-72
• Hex (mm)：55-105
• Square Drvie Axis (Inch)：1-1,2
• Max Pressure (Bar)：700
• Weight (Kg)：14.5
• Color：Can Be Customized
• OEM：Yes
• Warranty：1 Year
• Certificate：Ce, ISO9001:2008
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：SOV
• Origin：Shanghai, China
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. SV31LB Series Feature Ordinary Working Mode Hydraulic Folded Unfolded Handle Color Colorful Application Age Adult Torque Range (mm) 1550-15500 Bolt Diameter (mm) 36-72 Hex (mm) 55-105 Square Drvie Axis (Inch) 1-1/2 Max Pressure (Bar) 700 Weight (Kg) 14.5 Color Can Be Customized OEM Yes Warranty 1 Year Certificate Ce, ISO9001:2008 Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark SOV Origin Shanghai, China Production Capacity 2000PCS/Month

Product Description

Product Featrues

Rigid steel design guarantees durability, reliability and safety.

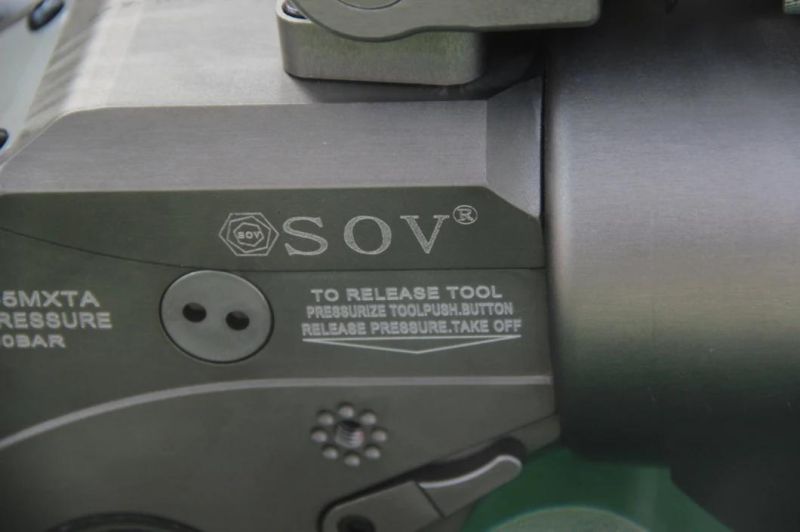

Push button square drive release for quickly reversing the square drive for tightening or loosening
Fine tooth ratchet prevents tool "lock-on"
360 degree swivel manifold with screw lock couplers
Fast operation due to the large nut rotation per wrench cycle (35 degree) and rapid return stroke
Constant torque output provides high accuracy (± 3%) across the full stroke
Includes handle to improve tool handling and safety

Product Parameter

Model	SOV-1MXTA	SOV-3MXTA	SOV-5MXTA	SOV-8MXTA	SOV-10MXTA	SOV-20MXTA	SOV-25MXTA	SOV-35MXTA
Torque Range (nm)	183-1837	451-4512	752-7528	1078-10780	1551-15516	2666-26664	3472-34725	4886-48666
Bolt Size (mm)	16-36	22-48	27-56	30-64	36-72	42-90	48-100	64-115
Nut Size (mm)	24-55	34-75	41-85	46-95	55-105	65-110	74-145	95-165
Square Drive	3/4''	1''	1-1/2''	1-1/2''	1-1/2''	2-1/2''	2-1/2''	2-1/2''

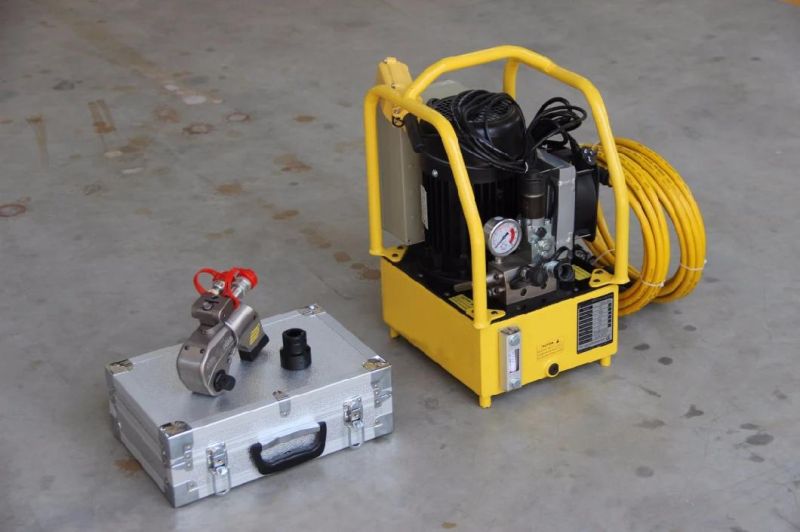

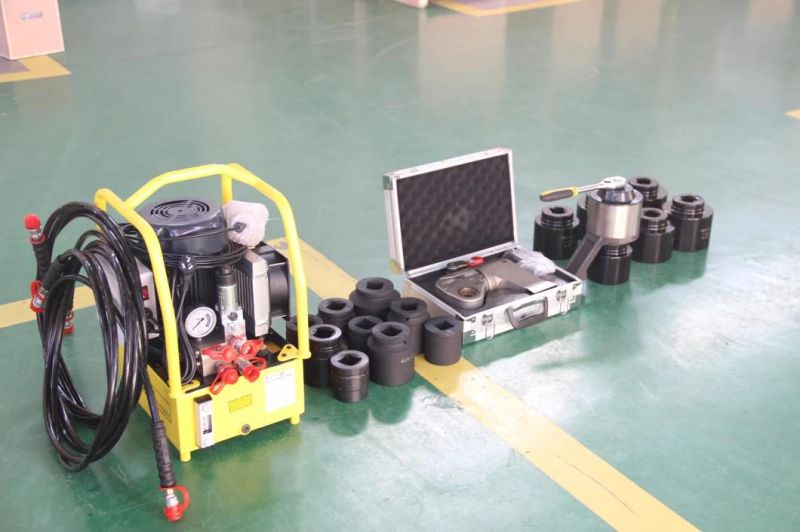

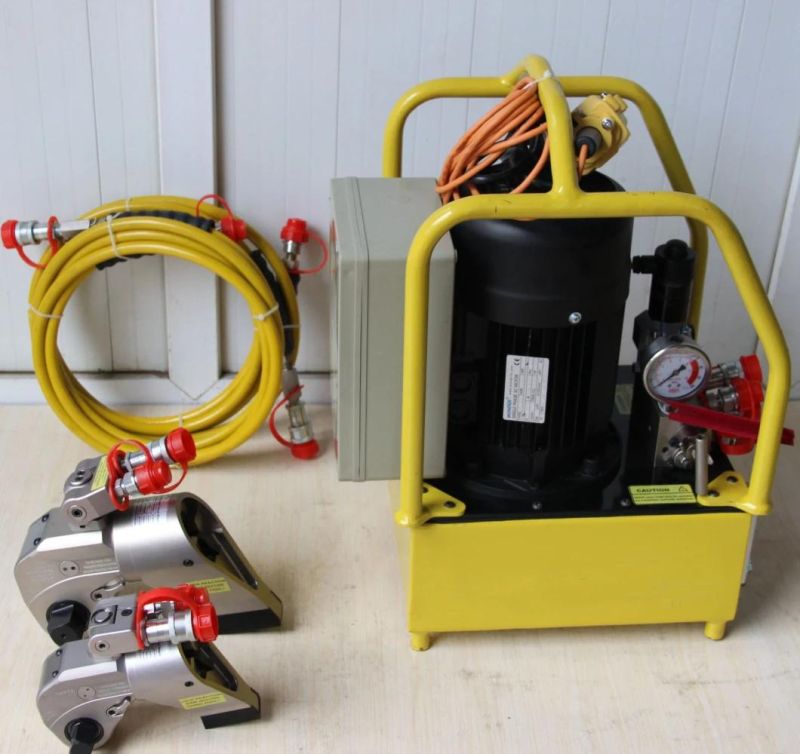

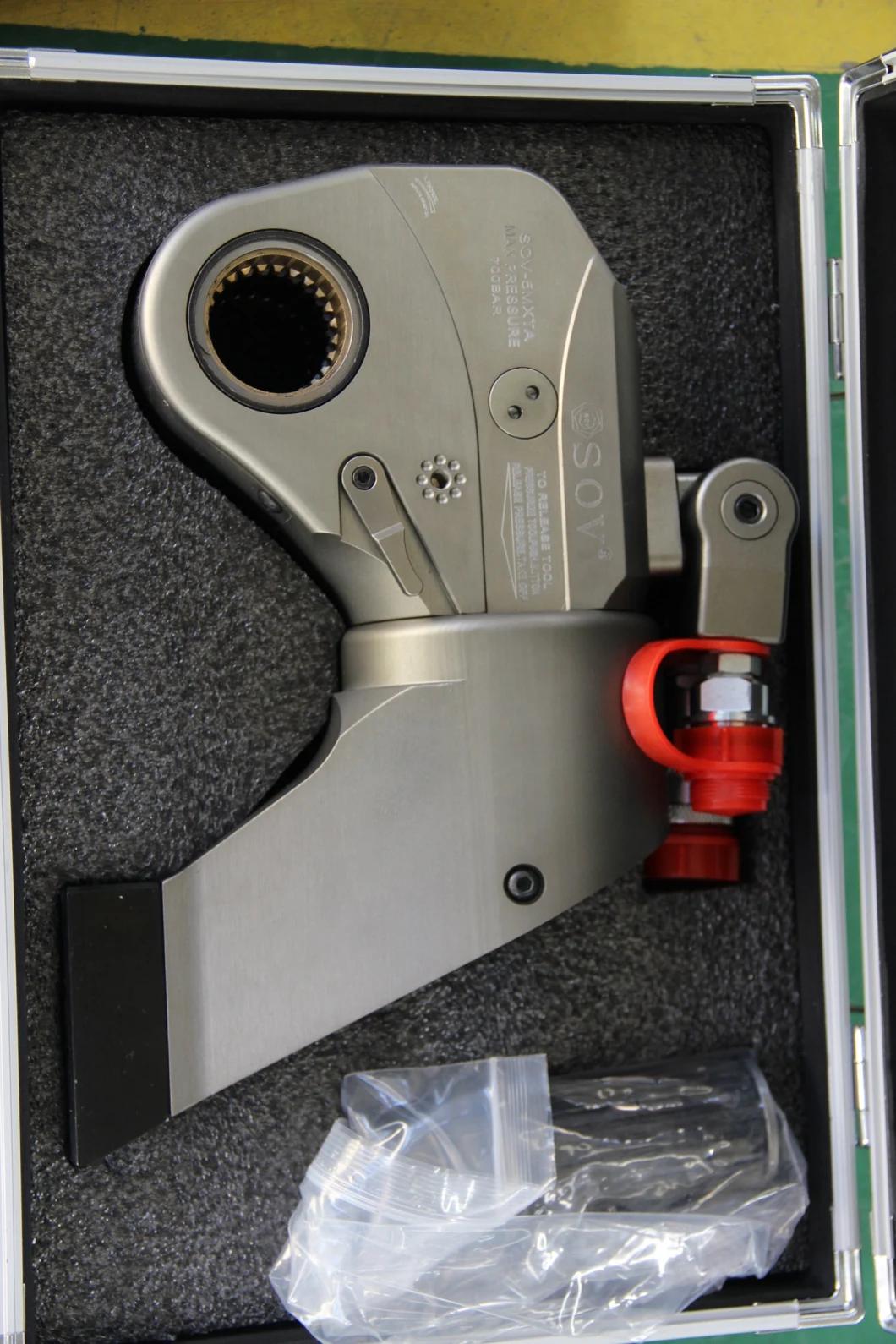

Photos

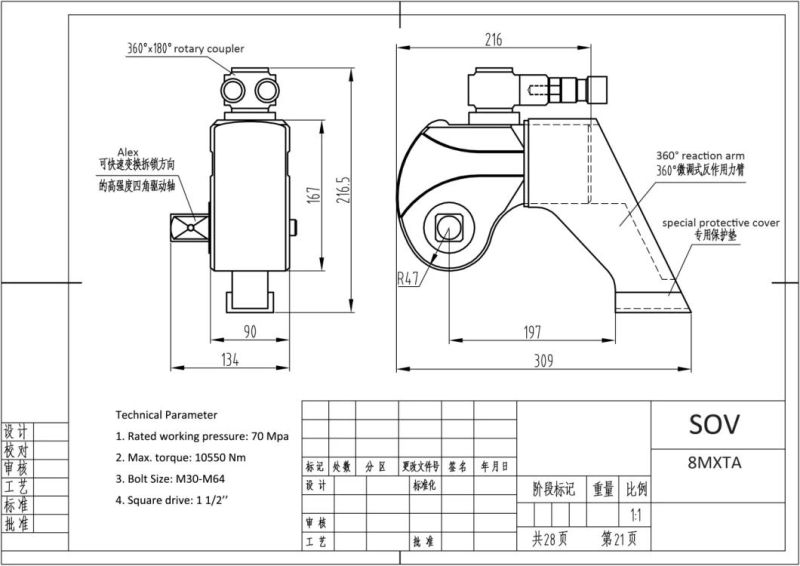

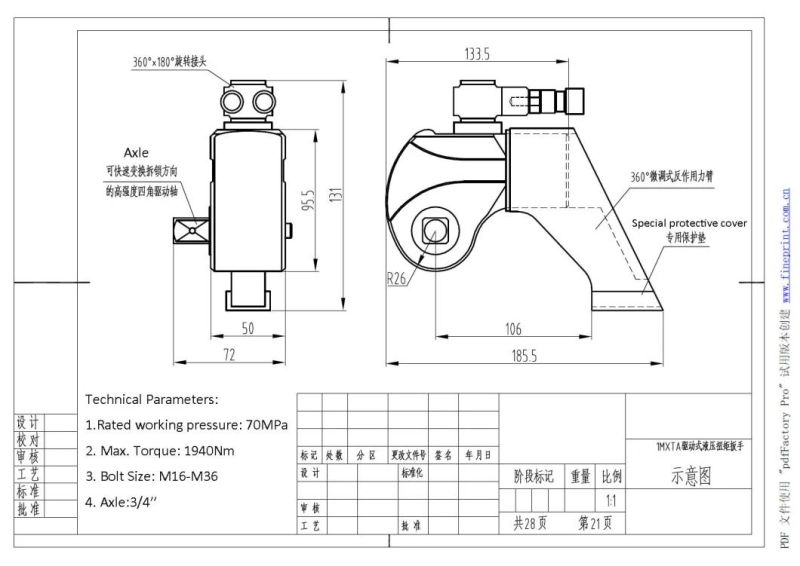

Drawings





Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: alloy case
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery

Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port

Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.

Company Information


Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

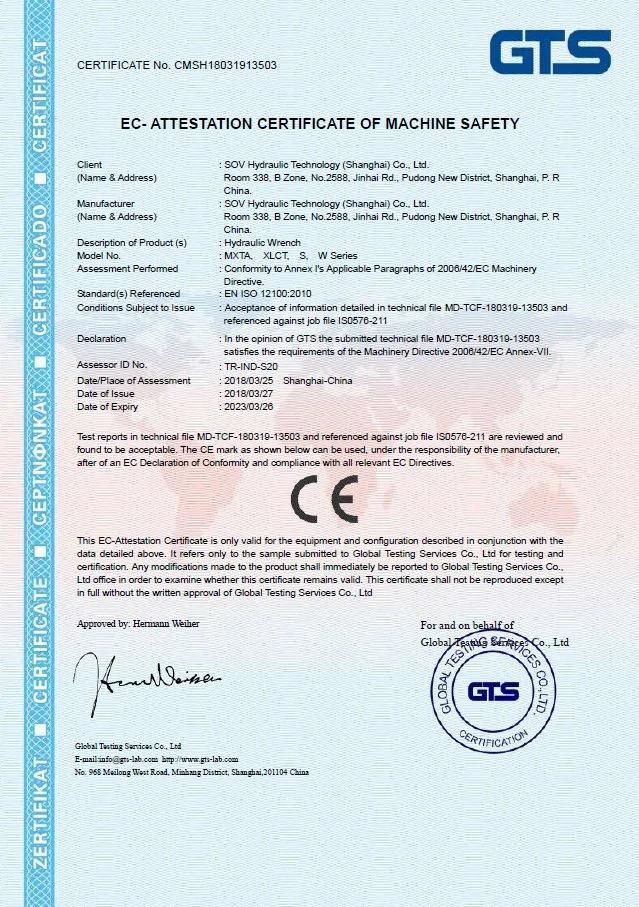

Certificate


Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.


Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions (4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
